Rev. 02/01/18
VER SMS-YS0320140828-EN
USER'S MANUAL
DY310
Pulp Tester
The unit must be installed by a qualified dental engineer.
The unit is only for use by dental professionals.
Read this operation manual carefully before operation.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DY310 and is the answer not in the manual?

Questions and answers

Related Manuals for Denjoy DY310

Summary of Contents for Denjoy DY310

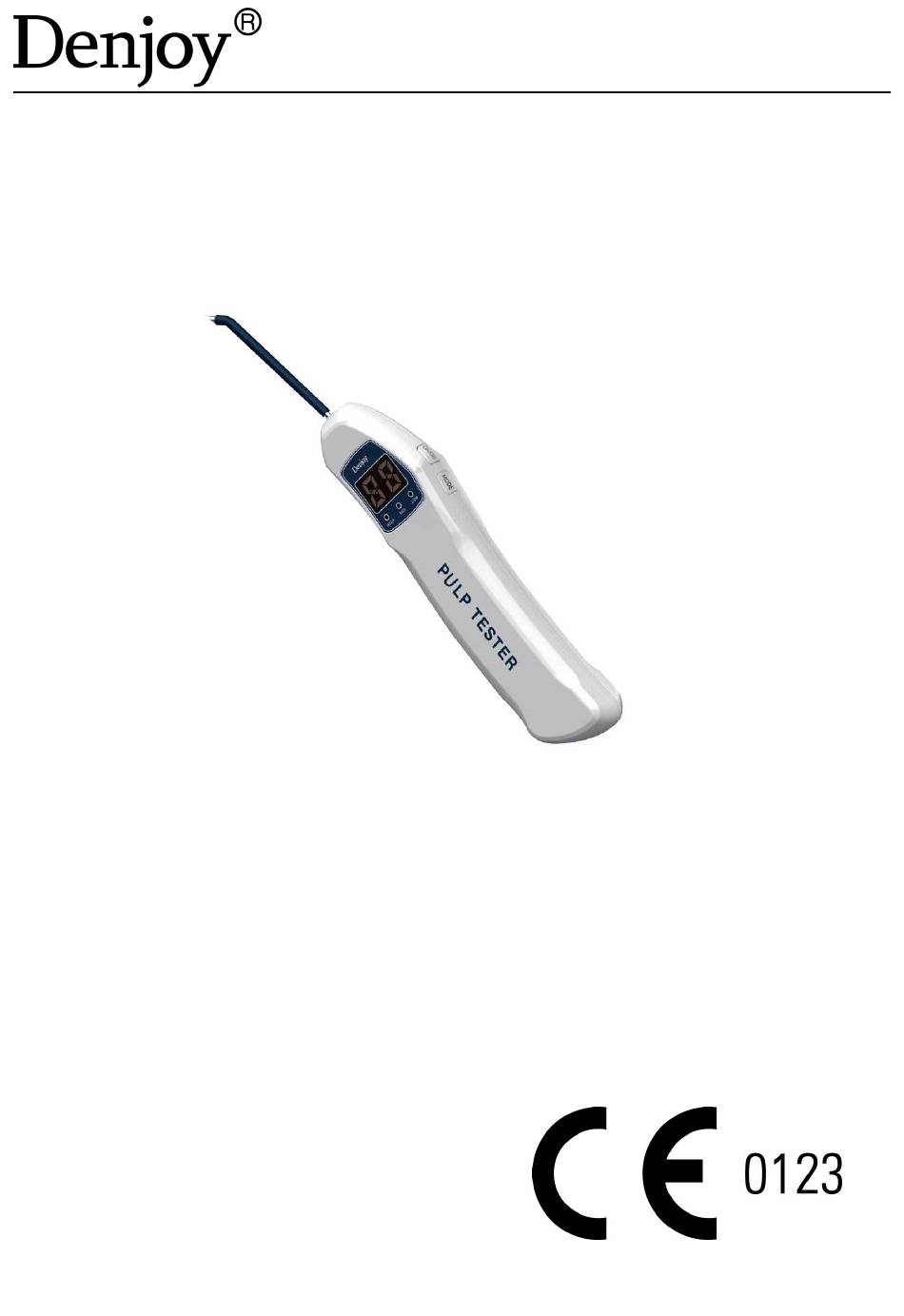

  • Page 1 Rev. 02/01/18 VER SMS-YS0320140828-EN USER’S MANUAL DY310 Pulp Tester The unit must be installed by a qualified dental engineer. The unit is only for use by dental professionals. Read this operation manual carefully before operation.

  • Page 2: Table Of Contents

    Rev. 02/01/18 VER SMS-YS0320140828-EN CONTENTS SECTION I. CONTACT INFORMATION SECTION II. DESCRIPTION SECTION III. COMPONENTS AND FEATURES SECTION IV.SYMBOL SECTION V. MAIN TECHNICAL INDEX SECTION VI. OPERATION SECTION VII. SAFETYPRECAUTIONS SECTION VIII. MAINTENANCE SECTION IX: TOUBLESHOOTING GUIDE SECTION X. PACKING LIST SECTION XI.

  • Page 3: Section I. Contact Information

    The whole operation process should follow user’s manual strictly. DENJOY DENTAL CO., LTD has right to improve shape and structure of the device, change any information and technical specification of this manual all the time, and no...

  • Page 4: Section Ii. Description

    Address: DORFSTRASSE 2/4, 79312 EMMENDINGEN, GERMANY SECTION II. DESCRIPTION Pulp Tester DY310 is a device to examine the vitality of dental pulp using the electrical stimulation. During the pulp test, the current stimulates intradental nerve, and give severe pain to patients. Some studies were...

  • Page 5: Section Iii. Components And Features

    Rev. 02/01/18 VER SMS-YS0320140828-EN SECTION III. COMPONENTS AND FEATURES Test electrode B. Stainless hook C. Control part D. Probe cable Test electrode 2pcs, Stainless hook 4pcs, Probe cable 1pc...
  • Page 6 Rev. 02/01/18 VER SMS-YS0320140828-EN Press ON/OFF button for 2S to turn on the device. Press MODE button to set the speed of number change.
  • Page 7 Rev. 02/01/18 VER SMS-YS0320140828-EN “High” “Mid” “Low” stands for different modes for speed of number change. Features ● Preset speed mode (high-mid-low speed) A gentle, pulsed stimulus begins to increase at a rate of high-mid-low speed ● Specifically designed for patient comfort If the patient indicates perception, simply release the button.

  • Page 8: Section Iv.symbol

    Rev. 02/01/18 VER SMS-YS0320140828-EN ● The device turns itself off three minutes later after operation (No wasted batteries.) SECTION IV. SYMBOL The following symbols may appear in this manual, on the label, or on it’s accessories. Some of the symbols represent standards and compliances associated with the endo motor and its use.

  • Page 9: Section V. Main Technical Index

    DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. SECTION V. MAIN TECHNICAL INDEX Model Name DY310 Anti-shock type internally powered equipment...

  • Page 10: Section Vi. Operation

    Rev. 02/01/18 VER SMS-YS0320140828-EN Anti-shock level Class BF Degree of protection from ingress of liquids: None Operation mode Continuous Operation Rated voltage: 9.0V DC Net weight: about 100g Gross weight: about 350g SECTION VI. OPERATION 1. Make the probe cable link with the cable socket of the control part;...
  • Page 11 Rev. 02/01/18 VER SMS-YS0320140828-EN low speed) 4. Paste a spot of conducting glue or toothpaste on the contact interface (1/3 slice side) between test electrode and selected tooth. Then press the power switch. Then lay the test electrode on the on the surface of selected tooth.

  • Page 12: Section Vii. Safetyprecautions

    Rev. 02/01/18 VER SMS-YS0320140828-EN on the surface of LCD screen for 3 minutes and then the unit will switch off automatically. * After switch the machine on, while the display screen shows LO, its means the battery needs to be charged. SECTION VII.
  • Page 13 Rev. 02/01/18 VER SMS-YS0320140828-EN the presence of flammable anesthetic mixture with air or nitrous oxide. To keep the safety operation, we suggest that check your local AC power supply voltage before you buy this product oversea. CAUTION: Persons having a history of photosensitive reactions or who are using photosensitizing drugs should not be tested by pulp tester.

  • Page 14: Section Viii. Maintenance

    Rev. 02/01/18 VER SMS-YS0320140828-EN SECTION VIII. MAINTENANCE 1. This device cannot be dismantled privately; otherwise the unit will be damaged wholly. 2. Please use the original charger, any other charger may result in the damage of the battery and the controlled electric circuit; even the machine will be greatly damaged.

  • Page 15: Section X. Packing List

    Rev. 02/01/18 VER SMS-YS0320140828-EN turned on. Batteries disorder. Reinstall the batteries. The light Button of speed mode (high-mid-low indicator has speed) is broken. no changes Make sure that connection plug of The device probe cable is in good contact with can not work cable socket of control part.

  • Page 16: Section Xi. Storage &Transport

    Rev. 02/01/18 VER SMS-YS0320140828-EN ．Stainless hook 4pcs ．User manual SECTION XI. STORAGE & TRANSPORT ENVIRONMENT: OPERATING CONDITIONS Ambient temperature: 5℃ ~ 40℃ Relative humidity range: ≤80% Atmospheric pressure: 70kPa ~ 106kPa STORAGE AND SHIPPING CONDITIONS Ambient temperature: -40℃ ~ 55℃ Relative humidity range: ≤80% Atmospheric pressure: 50kPa~ 106kPa Equipment is not suitable for storage in the presence...
  • Page 17 Rev. 02/01/18 VER SMS-YS0320140828-EN This device is guaranteed for its designated use, against original defects in materials and workmanship for a period of 12 months from date of purchase. Products warranty or service will not be extended if (1) The product is repaired, modified, misused, disassembled, or using the parts are not provided by the manufacturer.
  • Page 18 Guidance and manufacturer’s declaration - electromagnetic emissions The [DY310] is intended for use in the electromagnetic environment specified below. The customer or the user of the [DY310] should assure that it is used in such an environment Emissions Compliance Electromagnetic...
  • Page 19 This equipment/ system may cause radio interference or may disrupt the operation of nearby equipment. It may be necessary to take mitigation measures, such as re-orienting or relocating the [DY310] or shielding the location.
  • Page 20 Guidance and manufacturer’s declaration - electromagnetic emissions The [DY310] is intended for use in the electromagnetic environment specified below. The customer or the user of the [DY310] should assure that it is used in such an environment Immunity Complian Electromagne...
  • Page 21 Rev. 02/01/18 VER SMS-YS0320140828-EN transient/bu supply supply be that of a lines lines typical ±1 kV for commercial or 61000-4-4 input/outp hospital ut lines environment. The electrical fast transient burst (EFT) is generated by the switching of inductive loads. Separation between the equipment and other loads...
  • Page 22 5 cycle requires continued 70% U 70% U operation (30% dip (30% dip in during power in U mains interruptions, it cycle cycle recommended <5% U <5% U the [DY310] be (>95% dip (>95% dip powered from in U in U...
  • Page 23 NOTE U is the a.c. mians voltage prior to application of the test level. Table 3 Guidance and manufacturer’s declaration - electromagnetic emissions The [DY310] is intended for use in the electromagnetic environment specified below. The customer or the user of...
  • Page 24 Rev. 02/01/18 VER SMS-YS0320140828-EN the [DY310] should assure that it is used in such an environment Immu Electromagnetic nity 60601 plian environment - guidance Test Test level level Portable and mobile RF communications equipment should be used no closer to...
  • Page 25 Rev. 02/01/18 VER SMS-YS0320140828-EN -4-6 3 V/m 80MHz d =2.3 800 MHz~2.5 where p is the maximum Radiat 2.5GHz 3 V/m output power rating of the ed RF transmitter in watts (W) according to the transmitter manufacturer and d is the 61000 recommended separation -4-3...
  • Page 26 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the [DY310] is used exceeds the applicable RF compliance level above, the [DY310] should be observed to verify normal operation. If...
  • Page 27 The [DY310] is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the [DY310] can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF...
  • Page 28 Rev. 02/01/18 VER SMS-YS0320140828-EN For transmitters rated at a maximum output power not listed above, the recommended separation distance d in metres (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.
  • Page 29 Rev. 02/01/18 VER SMS-YS0320140828-EN WARRANTY REGISTRATION FORM Item Name: Model Name: Serial No.: Date of Purchase: Name: Address: Phone: Email: Name of Distributor: Authorized Distributors: Stamp and Signature...
