Torin BIG RED T820028DS Owner's Manual

2 ton low profile service jack
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

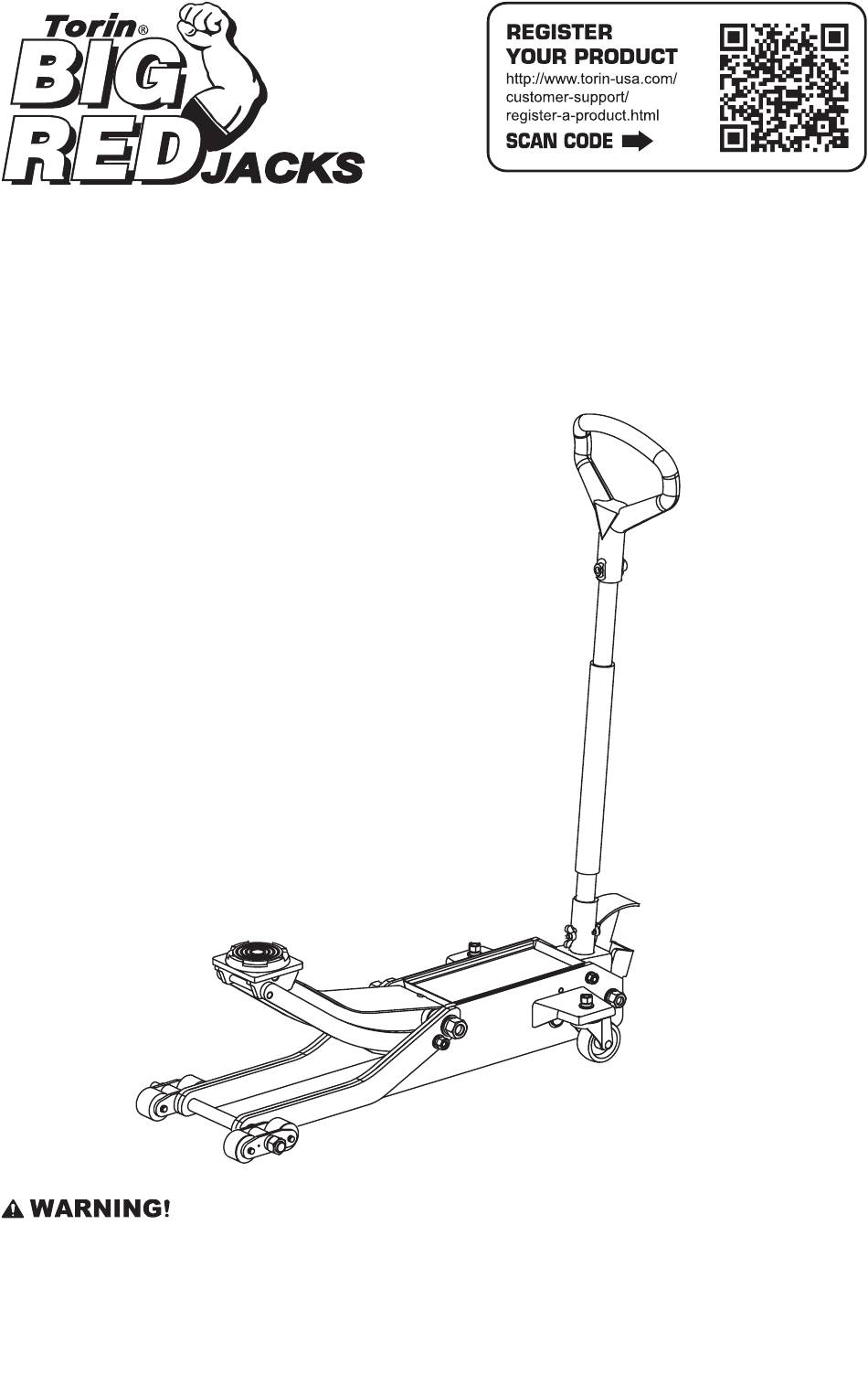

OWNER'S MANUAL
2 TON LOW PROFILE SERVICE JACK
Item: T820028DS
Questions, problems, missing parts? Before returning to your retailer, call our customer service department at
1-888-44-TORIN (1-888-448-6746), 8 a.m.- 5 p.m., PST, Monday-Friday.
Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure
to follow the safety rules and other basic safety precautions may result in serious personal injury.
Version 05232017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BIG RED T820028DS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Torin BIG RED T820028DS

Summary of Contents for Torin BIG RED T820028DS

  • Page 1 Item: T820028DS Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-888-44-TORIN (1-888-448-6746), 8 a.m.- 5 p.m., PST, Monday-Friday. Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.

  • Page 2: Owner / User Responsibility

    IMPORTANT Before You Begin Register This Product. For future reference, record the model name, model number, date of manufacture and purchase date of this product. You can find this information on the product. ____________________________ Model Name ____________________________ Model Number ____________________________ Date of Manufacture ____________________________ Date of Purchase...

  • Page 3: General Safety Rules

    GENERAL SAFETY RULES WARNING: Read and understand all instructions. Failure to follow all instructions listed below may result in serious injury. CAUTION: Do not allow persons to operate or assemble this jack until they have read this manual and have developed a thorough understanding of how the jack works. WARNING: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions or situations that could occur.

  • Page 4: Safety Markings

    SAFETY Always follow safety precautions when installing and operating this jack. Keep all decals on the unit clean and visible. Before proceeding ensure that you fully understand and comprehend the full contents of this manual. Failure to operate this equipment as directed may cause injury or death. The distributor is not responsible for any damages or injury caused by improper use or neglect.

  • Page 5: General Safety Instructions

    GENERAL SAFETY INSTRUCTIONS Position the Jack Position the jack to only lift on the areas of the vehicle as specified by the vehicle manufacturer. Always Use Jack Stands After lifting the vehicle always support the load with appropriately rated vehicle Jacks stands before working on the vehicle.
  • Page 6 ASSEMBLY ASSEMBLY 1. Familiarize yourself with the jack. IMPORTANT: BEFORE FIRST USE Perform the following Air Purge Procedure to Foot pedal remove any air that may have been introduced into the hydraulic system as a result of product shipment Handle and handling.
  • Page 7 3. Pump the foot peddle until the saddle reaches 5. When the saddle reaches its lowest resting maximum lift height. Continue to pump once position, with a flat blade screwdriver, push the saddle reach full extension (8-10 full pedal oil fill plug slightly to the side to purge trapped air strokes).

  • Page 8: Before Use

    BEFORE USE WARNING: Improper use of this jack may result in serious injury or death. 1. Before using this product, read the owner's manual completely and familiarize yourself thoroughly with the product and the hazards associated with its improper use. 2.
  • Page 9 LOWERING THE JACK 1. Raise load high enough to allow clearance for the 5. After removing jack from under the load, keep jack stands to be removed, then carefully remove jack in the lowered position to reduce exposure to jack stands. rust and contamination.

  • Page 10: Maintenance Instructions

    MAINTENANCE INSTRUCTIONS If you use and maintain your equipment properly, it will give you many years of service. Follow the maintenance instructions carefully to keep your equipment in good working condition. Never perform any maintenance on the equipment while it is under a load. Inspection You should inspect the product for damage, wear, broken or missing parts (e.g.: pins) and that all components function before each use.
  • Page 11 TO ADD JACK OIL 1. Position the jack on level ground and lower the 4. Fill the oil case until oil level is just beneath the saddle. lower rim of the oil fill hole. 2. Remove the cover plate. 5. Replace oil plug. 3.
  • Page 12 TO REPLACE JACK OIL 1. Position the jack on level ground and lower the 6. Position the jack on level ground and keep saddle saddle. in the lowered position. Fill the oil case until oil 2. Remove the cover plate. level is just beneath the lower rim.

  • Page 13: Additional Warnings

    ADDITIONAL WARNINGS: • DO NOT USE MOTOR OIL IN THE JACK. • ONLY USE ANTI-FOAMING JACK OIL. • ALWAYS USE A GOOD GRADE HYDRAULIC JACK OIL. • DO NOT USE HYDRAULIC BRAKE FLUID, ALCOHOL, GLYCERINE, DETERGENT, MOTOR OIL OR DIRTY OIL. •...

  • Page 14: Assembly Diagram

    ASSEMBLY DIAGRAM...
  • Page 15 REF# PART # DESCRIPTION Front wheel axle GB894.1-12 C-clip M12 Connecting bar T820028-11 Saddle T820028-20 Saddle pad Right frame Lifting arm Shaft for connecting bar Supporting shaft Spring Back axle T820028-01 tray T820028-05 Magnetic cover Roundwire snap ring Hand socket shaft QYL8-29 Oil plug Limit shaft...

  • Page 16: Troubleshooting

    Part # are available for purchase. For assistance with the operation or the availability of replacement parts, contact our Parts and Warranty Department at 1-888-44-TORIN (1-888-448-6746). Please have available a copy of your receipt, the model number of the product, serial number, and specific details regarding your question.
  • Page 17 Manufacturer reserves the rights to make design changes and or improvements to this product lines and manual without notice. We at Torin have taken every effort to ensure complete and accurate instructions have been included in this manual. However, possible product updates, revisions and or changes may have occurred since this printing.
