Operator's Instruction Manual

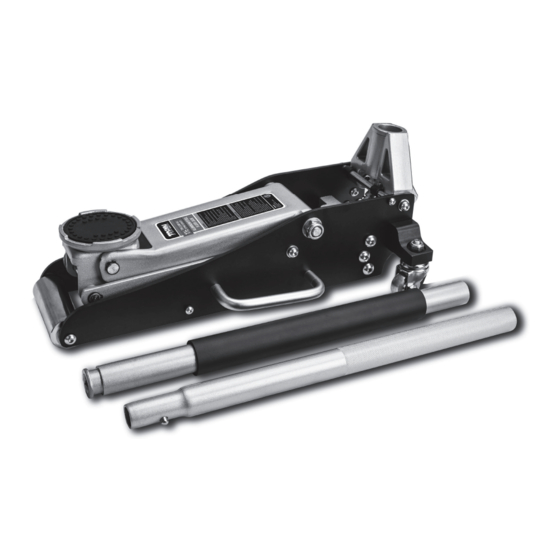

1½ TON ALUMINUM / STEEL
RACING JACK
Rated Capacity 3,000-lb
MODEL# T815016LT
This is the Safety Alert Symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
Read this Manual and follow all the Safety Rules and Operating Instructions
before using this product.
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 1-888-448-6746, 8 a.m.- 5 p.m., PST, Monday-Friday.
Distributed by TORIN JACKS INC. Ontario, CA 91761
K T815016LT
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Torin T815016LT
Summary of Contents for Torin T815016LT
- Page 1 Read this Manual and follow all the Safety Rules and Operating Instructions before using this product. Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-888-448-6746, 8 a.m.- 5 p.m., PST, Monday-Friday. Distributed by TORIN JACKS INC. Ontario, CA 91761 K T815016LT...
- Page 2 OWNER / USER RESPONSIBILITY DO NOT OPERATE OR REPAIR THIS EQUIPMENT WITHOUR READING THIS MANUAL. To maintain the Service Jack and User Safety, the responsibility of the owner is to read and follow these instructions. Follow all installation and operation instructions. Inspect the service jack for proper operation and function. Read and follow the safety instructions.
- Page 3 SAFETY INFORMATION Study, understand and follow all instructions in this manual before operating the jack. Failure to heed these warnings may result in loss of load, damage to the jack and/or jack failure resulting in personal injury or property damage. * Position the Jack Training Position the jack to only lift on the areas of the vehicle as...
- Page 4 MAINTENANCE INSTRUCTIONS How the Jack Operates If you use and maintain your equipment properly, it will give you many years of service. Follow the maintenance instruc- With release valve closed, an upward stroke of the jack tions carefully to keep your equipment in good working handle draws oil from the reservoir tank into the plunger condition.
- Page 5 ASSEMBLY INSTRUCTIONS PREPARATION 1. Prior to assembly carefully remove the block attached Before Use to the handle socket(picture 1). This piece it’s there for 1. Verify that the product and application are compatible, if shipping purposes only and is not part of the jack. in doubt call Customer Service.
- Page 6 SYSTEM AIR PURGE PROCEDURE DESCRIPTION IMPORTANT: BEFORE FIRST USE, Model T815016LT features a 3,000- lb. maximum capacity. The jack features an overlad valve bypass system to perform the following Air Purge Procedure to remove any air prevent jack damage and user injury.
- Page 7 TROUBLESHOOTING JACK WILL JACK WILL JACK WILL POOR NOT LIFT NOT HOLD JACK CAUSES AND SOLUTIONS LOAD LOAD LOWER LIFTING Release valve is not completely closed. Turn handle clockwise. Air is in the hydraulics. Purge air from system. Complete the airr purge procedure. ...
- Page 8 WARRANTY ONE YEAR LIMITED WARRANTY Torin® has been producing quality automotive repair and maintenance products since 1968. All products are sold are felt to be of the highest quality and are covered by the following warranty: With proof of purchase for a period of one year from the date of that purchase, the manufacturer will repair or replace, at its discretion, without charge, any of its products or parts thereof which fail due to a defect in material or workmanship.
