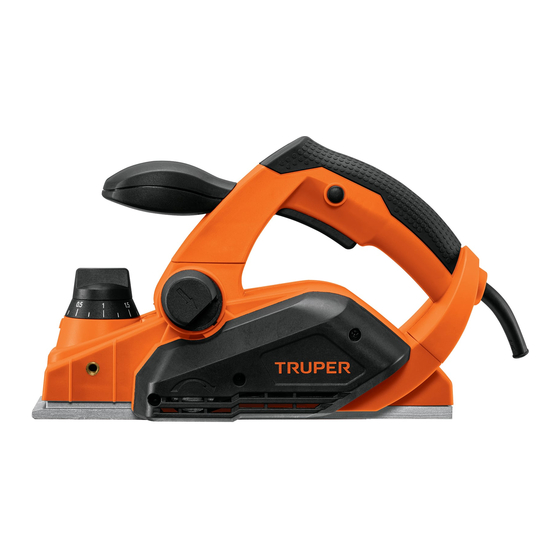

- Page 1 Manual Electric Planer 1.1 Hp Power Applies for: Code Model 100502 CEPEL-3-1/4A4 CEPEL-3-1/4A4 Read the user’s manual thoroughly CAUTION before operating this tool.
-
Page 2: Table Of Contents
Manual before Parts using the tool. Assembly Keep this manual for future references. Start Up The illustrations in this manual are for reference Maintenance only. They might be different from the real tool. Notes Authorized Service Centers Warranty Policy CEPEL-3-1/4A4 ENGLISH... -
Page 3: Technical Data
Technical Data CEPEL-3-1/4A4 Code 100502 Description Electric Planer Voltage Frequency 127 V 60 Hz Current 6.7 A Power 1.1 Hp Speed 17 000 RPM Depth 0 - 3.5 mm Dust Collecting Left-Right System Duty Cycle 30 minutes’ work per 15 minutes’ idle. Maximum 3 hours per day. -
Page 4: General Power Tool Safety Warnings
General power tool safety warnings WARNING! Read carefully all safety warnings and instruction listed below. Failure to comply with any of these warnings may result in electric shock, fire and / or severe damage. Save all warnings and instructions for future references. -
Page 5: Safety Warnings For Electric Planers
Safety warnings for electric planers Before Operating the Tool While Operating the Tool • Unroll completely the extension cord to prevent potential • When possible, use a dust extraction system. overheating. CAUTION • When operating the tool, hold it only •... -
Page 6: Parts
Parts Auxiliar Switch Handle Lock Handle Blocking Lock Power Cord Protector Switch Cutting Depth Adjusting Knob Adjustable Base Power Cord Parallel Guide Band Cover 0.09” Fastening Knob Fixed Base Hexagonal Wrench 0.31” Spanner Blades Blade Supporting Height Block Control Screws Fixed Base Blades... -
Page 7: Assembly
Assembly Blades Set Up The blades must be adjusted so that the cutting edge is level with the fixed base. (See "Blade leveling" below). • To remove the worn blades, loosen the three adjusting screws (A) with the included 8 mm wrench, turning them counterclockwise. -
Page 8: Start Up
Assembly Parallel Guide Set Up Start Up Start and Operation Control • Connect the plug into the power outlet. • Keep the switch lock (B) pressed to unblock the switch (A). The switch lock prevents from accidentally starting up the tool. •... - Page 9 Start Up Shaving extraction • The brush has a shavings ejector duct that can be positioned to eject from the right or left (A) • The duct runs through the brush from side to side through the ejector ducts, blocking one of the ducts and allowing shavings to exit through the other.
-
Page 10: Maintenance
Maintenance WARNING Disconnect the cable from the power outlet before carrying out any adjustment, service or maintenance to the tool. Cleaning and Care Service • Keep the tool dust-free. Never use water or chemical Servicing the tool shall only be carried out in a substances to clean the tool. -
Page 11: Authorized Service Centers
In the event of any problem contacting a Authorized Service Center, please see our webpage www.truper.com to get an updated list, or call our toll-free numbers 800 690-6990 or 800 0187-8737 to get information about the nearest Service Center. DE TODO PARA LA CONSTRUCCIÓN FIX FERRETERÍAS... -
Page 12: Warranty Policy
. Transportation costs resulting from compliance of this warranty will be covered by For questions or comments, call 800-690-6990. Made in China. Imported by Truper S.A. de C.V. Parque Industrial 1, Jilotepec, Edo. de Méx. C.P. 54240 Stamp of the business.
