- User Guide
Physical Description
STEP 2: Setting the Siren Configuration Mode
The Siren unit can be powered by Lithium Battery 3.6V/14Ah or by external power
supply 12V/0.8A or both, in case of both the battery use as backup.
NOTE: refer to table 1 for Jumpers set-up on the next page

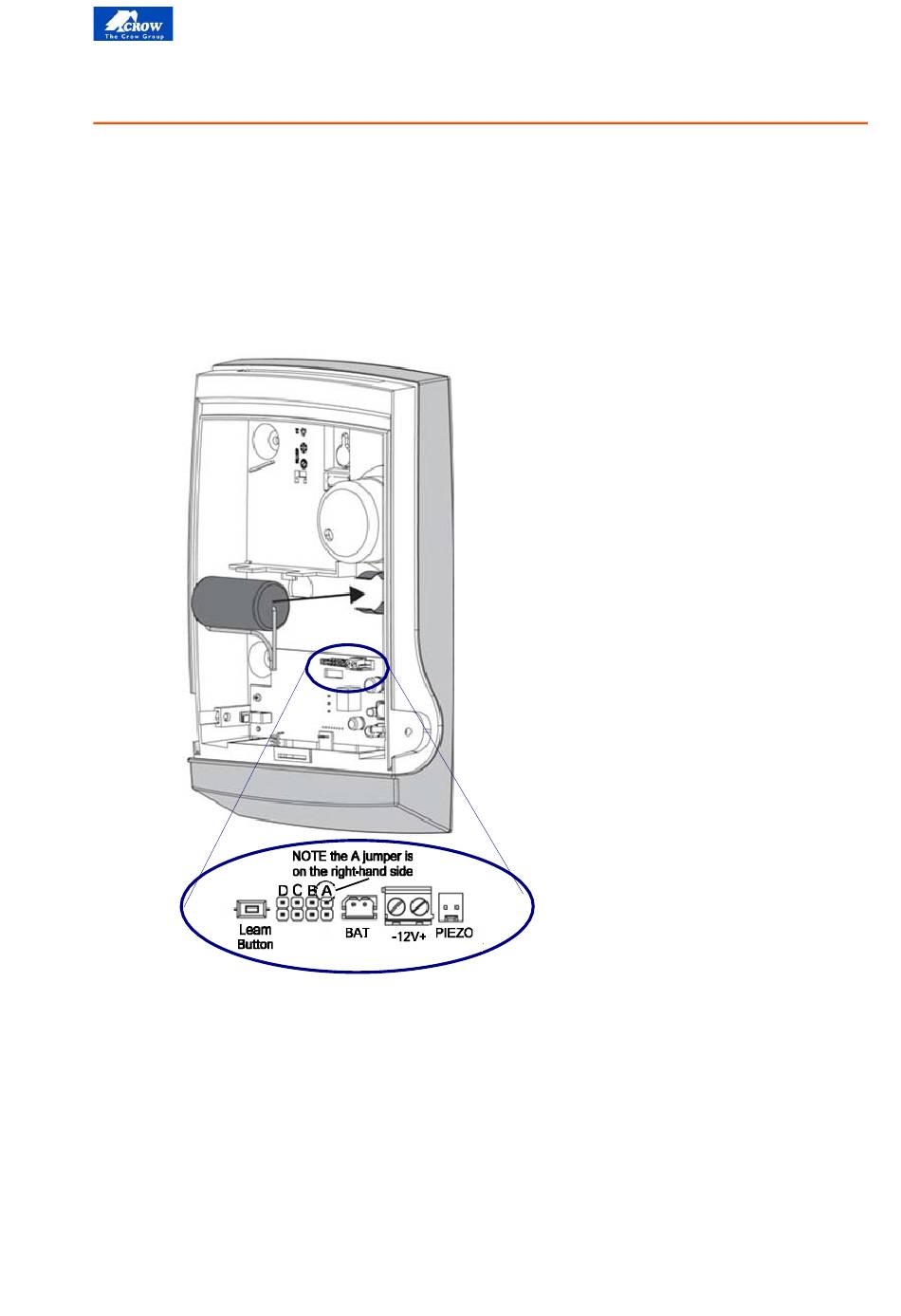

Figure 2: Siren Description Diagram
4
