Adjusting Volume/Balance (Between Left And Right)/Fader (Between Front And Rear)/Defeat; Audio Mute Function; Displaying Time; Setting Time - Alpine CDA-9827 Owner's Manual

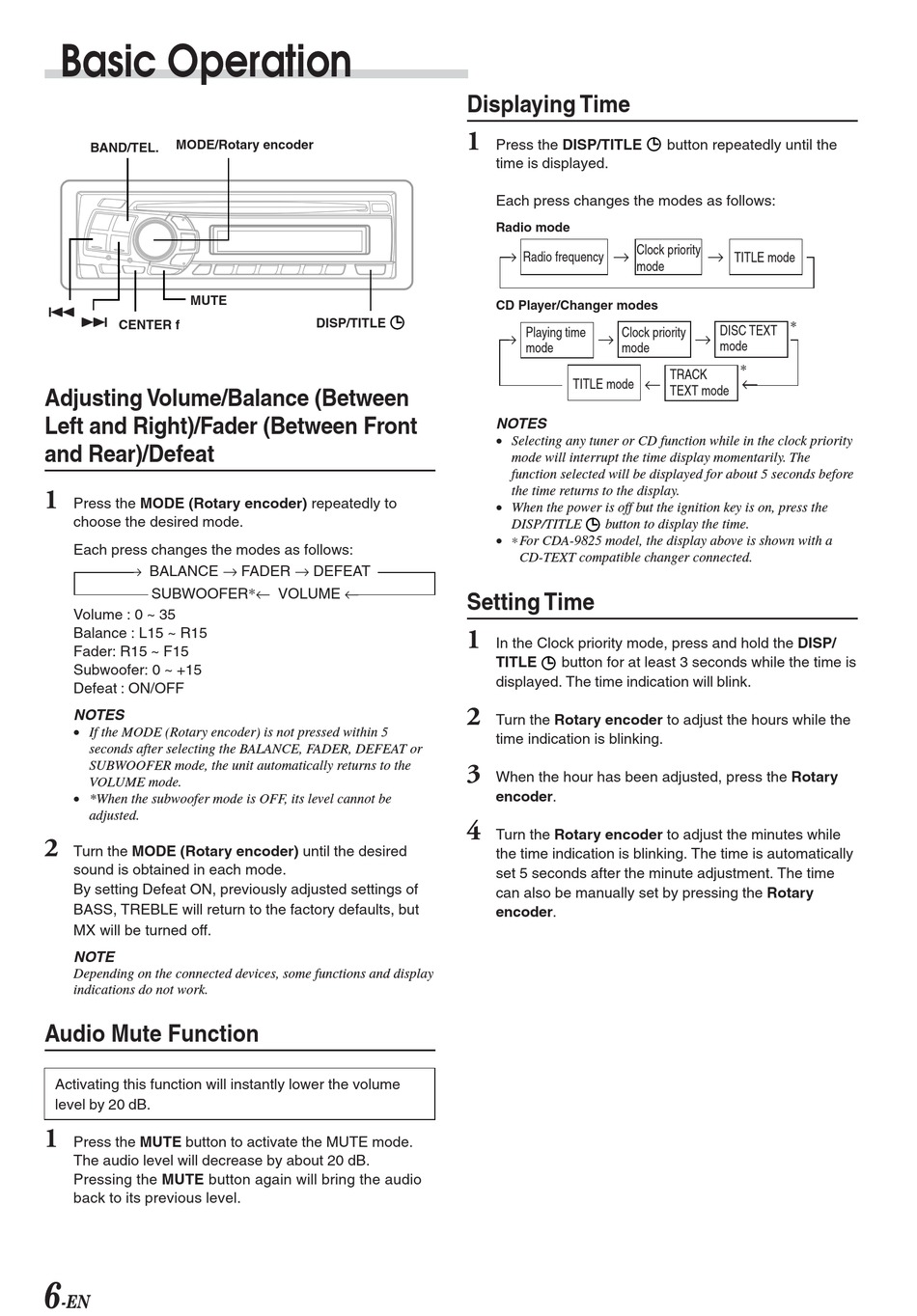

Basic Operation
MODE/Rotary encoder
BAND/TEL.
MUTE
g
f
CENTER f
Adjusting Volume/Balance (Between
Left and Right)/Fader (Between Front
and Rear)/Defeat
1
Press the MODE (Rotary encoder) repeatedly to
choose the desired mode.
Each press changes the modes as follows:
→ BALANCE → FADER → DEFEAT
SUBWOOFER*← VOLUME ←
Volume : 0 ~ 35
Balance : L15 ~ R15
Fader: R15 ~ F15
Subwoofer: 0 ~ +15
Defeat : ON/OFF
NOTES
• If the MODE (Rotary encoder) is not pressed within 5
seconds after selecting the BALANCE, FADER, DEFEAT or
SUBWOOFER mode, the unit automatically returns to the
VOLUME mode.
• *When the subwoofer mode is OFF, its level cannot be
adjusted.
2
Turn the MODE (Rotary encoder) until the desired
sound is obtained in each mode.
By setting Defeat ON, previously adjusted settings of
BASS, TREBLE will return to the factory defaults, but
MX will be turned off.
NOTE
Depending on the connected devices, some functions and display
indications do not work.

Audio Mute Function

Activating this function will instantly lower the volume
level by 20 dB.
1
Press the MUTE button to activate the MUTE mode.
The audio level will decrease by about 20 dB.
Pressing the MUTE button again will bring the audio
back to its previous level.
6
-EN

Displaying Time

1
DISP/TITLE

Setting Time

1
2
3
4
Press the DISP/TITLE button repeatedly until the
time is displayed.
Each press changes the modes as follows:
Radio mode
Clock priority
→ →
Radio frequency
mode
CD Player/Changer modes
Playing time Clock priority
→ →
mode mode
←
TITLE mode
NOTES
• Selecting any tuner or CD function while in the clock priority
mode will interrupt the time display momentarily. The
function selected will be displayed for about 5 seconds before
the time returns to the display.
• When the power is off but the ignition key is on, press the
DISP/TITLE button to display the time.
• ∗For CDA-9825 model, the display above is shown with a
CD-TEXT compatible changer connected.
In the Clock priority mode, press and hold the DISP/
TITLE button for at least 3 seconds while the time is
displayed. The time indication will blink.
Turn the Rotary encoder to adjust the hours while the
time indication is blinking.
When the hour has been adjusted, press the Rotary
encoder.
Turn the Rotary encoder to adjust the minutes while
the time indication is blinking. The time is automatically
set 5 seconds after the minute adjustment. The time
can also be manually set by pressing the Rotary
encoder.
→
TITLE mode
*
DISC TEXT
→
mode
*
TRACK
←
TEXT mode
