EnvironmentalLights.com DMX-6-22K-3-6A Manual

DMX Decoder-Studio 6 Channel-6A per Channel Manual
DMX-6-22K-3-6A / DMX-6-22K-5-6A

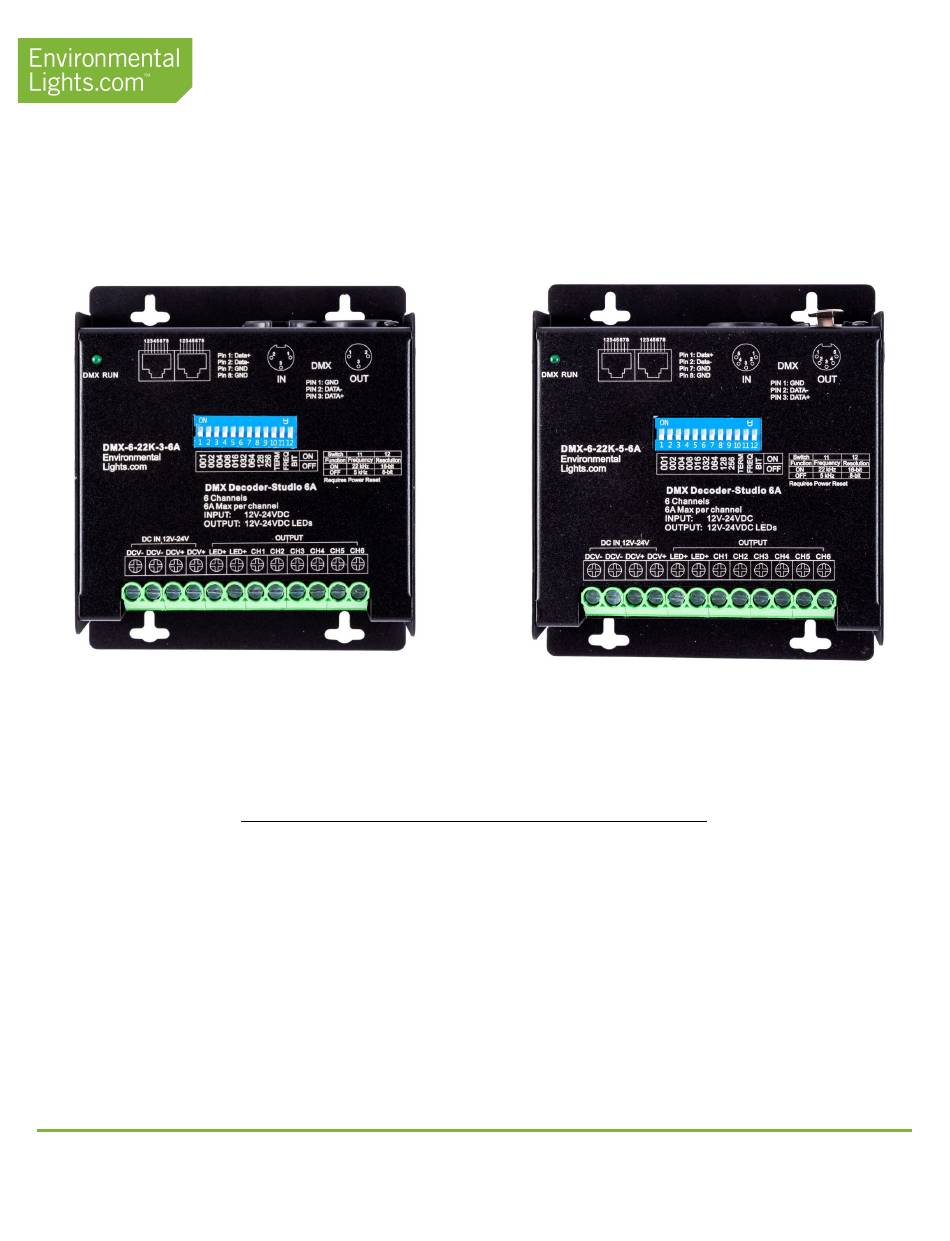

The StudioPro 6 Channel DMX Decoders are high-capacity decoders that accommodate up to 6 output channels of LED lighting. Each
decoder is equipped with 3-pin or 5-pin XLR DMX outputs. Each decoder takes the DMX output from any standard DMX console or
controller, and decodes the signal so you can drive up to 6 channels of LEDs, such as 6-in-1 ColorPlus LED Strip Light or two separate
runs of RGB. The switchable PWM frequency up to 22.5 kHz helps prevent flicker on high speed cameras and avoid possible
interference with audio recording equipment. It is compatible with both 12 and 24 VDC LED lighting.

Features

6 output channels
•
6 Amps per channel capacity
•
Drive 432W864W of LED lighting at 12V or 24V
•
respectively
3-pin or 5-pin XLR DMX in/out connections
•
RJ45 DMX in/out connections
•
Switchable 5 or 22.5 kHz PWM output
•
Switchable 8-bit or 16-bit DMX input
•
Works with 12 and 24VDC LED lighting
•
EnvironmentalLights.com • P: 888.880.1880 • 11235 West Bernardo Ct., Suite 102, San Diego, CA 92127
Product Manual and Instructions
This decoder is for any application requiring conversion of
DMX to PWM signals while driving up to 6 channels of LEDs.
© EnvironmentalLights.com
1
Application
