Studio 4 Channel DMX Decoder - 10A per ChannelManual
Part number: DMX-4-5000-3-10A / DMX-4-5000-5-10A

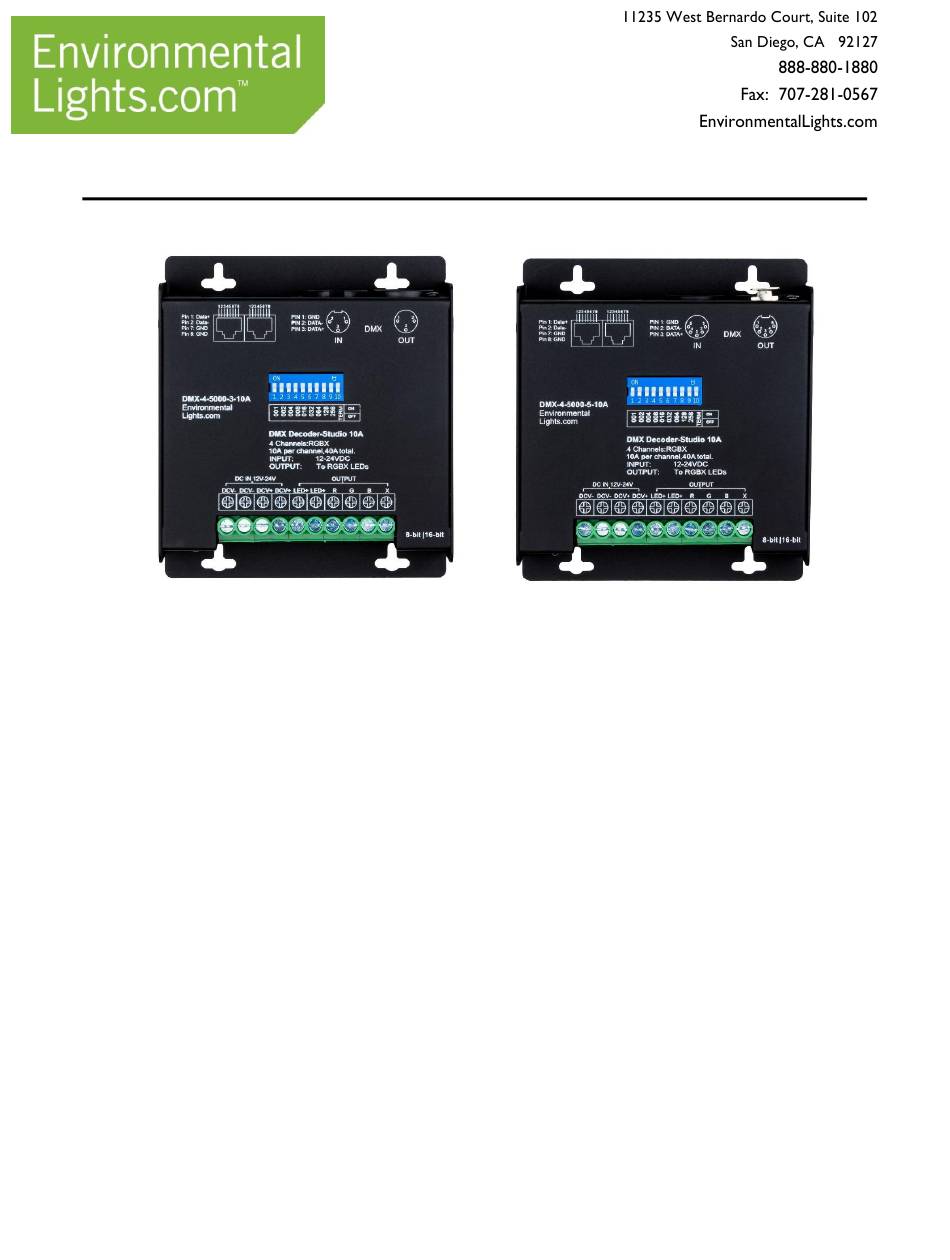

The Studio 4 Channel DMX Decoder - 10A per Channel is a four channel DMX decoder
designed for professional high power applications. It is capable of handling 10 amperes per
channel with all channels driven, meaning up to 480/960W at 12/24V. These decoders are
switchable for standard 8-bit or high resolution 16-bit operation. The DMX-4-5000-3-10A
interface includes two RJ45 ports and two 3-pin DMX ports, one each for in and out. The DMX-
4-5000-5-10A substitutes 5-pin DMX ports in place of the 3-pin DMX ports. Both versions have
top-mounted DIP switches for setting the starting DMX address, without needing to apply
power. Both decoders have built-in DMX terminations, in addition to a 5kHz PWM frequency to
avoid flicker when used for video recording.
Features
• High 4x10A power rating supports large installations up to 480/960W at 12/24V.
• Works with 12V and 24V LED lights.
• Output frequency is 5,000 Hz. Great for shooting TV shows or movies using high-speed
iris cameras because the camera won't see any flicker. We recommend these fast decoders
for any lighting that may be featured on camera.
• Switchable between 8-bit and 16-bit operation using the front toggle.
• Top mounted mechanical DIP switches for easy access and setting the DMX address
without power.
• Built-in switchable DMX termination.
• RJ45 and available 3-pin or 5-pin DMX ports for multiple connectivity options.
• Rugged chassis with integrated mounting tab
Copyright EnvironmentalLights.com
All Rights Reserved 10/1/18
Advertisement
Table of Contents
Related Manuals for EnvironmentalLights.com DMX-4-5000-3-10A
Summary of Contents for EnvironmentalLights.com DMX-4-5000-3-10A
- Page 1 480/960W at 12/24V. These decoders are switchable for standard 8-bit or high resolution 16-bit operation. The DMX-4-5000-3-10A interface includes two RJ45 ports and two 3-pin DMX ports, one each for in and out. The DMX- 4-5000-5-10A substitutes 5-pin DMX ports in place of the 3-pin DMX ports.
- Page 2 • Because the output is high frequency (5,000 Hertz), we recommend this decoder for any lighting that may be featured on camera. • High power DMX LED lighting systems. • TV and movie sets. Specifications Part Number DMX-4-5000-3-10A 4.17” x 4.80” x 1.30” Dimensions 106 mm x 122 mm x 33mm Channels Input Voltage 12-24 Volts DC Max.
- Page 3 • Connect the negative side LED wires to the terminals marked “R”, “G”, “B” and “X” for red, green, blue and white. Refer to the DMX Address section below for more information. Figure I: Wiring Diagram for Under 30A Copyright EnvironmentalLights.com All Rights Reserved 10/1/18...
- Page 4 • Connect the negative side LED wires to the terminals marked “R”, “G”, “B” and “X” for red, green, blue and white. Refer to the DMX Address section below for more information. Figure II: Wiring Diagram for Over 30A Copyright EnvironmentalLights.com All Rights Reserved 10/1/18...
- Page 5 DMX Connection: Both the DMX-4-5000-3-10A and DMX-4-5000-5-10A each have four ports available for DMX input and output. Pin out diagrams for both are shown below in Figure III and Figure IV respectively. • Each decoder can have only one DMX input signal at a time.
- Page 6 Test mode is engaged by moving all DIP switches 1-9 to the down “OFF” position. Test mode will cause the decoder to cycle through each output channel, turning them on and off individually. Exit test mode by setting a DMX address with any of the DIP switches 1-9. Copyright EnvironmentalLights.com All Rights Reserved 10/1/18...
- Page 7 Once you have tested the system successfully, you are ready to install it. We recommend you install LEDs, electronic controls and dimmers in such a way that you have access to them in case they fail. All electrical components can fail. Copyright EnvironmentalLights.com All Rights Reserved 10/1/18...
