Standalone 4 Channel DMX Decoder
The Standalone 4 Channel DMX Decoder - 5A per Channel acts as both a DMX controller and a
basic RGBW controller. An integrated high-resolution OLED display allows DMX settings and
stand-alone modes to be configured directly on the decoder. DMX settings include starting
address, dimming curve and DMX resolution. Stand-alone modes include static color mixing,
color changing and strobing modes. It accepts 5-24V DC input voltage range at up to five amps
per channel maximum current.

Features

• High resolution OLED screen can display 4-lines of text.
• Easily change DMX address without DIP switch math.
• 2,000 Hz PWM frequency for flicker-free performance in most applications
• Switchable 8-bit or 16-bit DMX input.
• Configurable stand-alone modes, including static color, color fade and color strobe
• 5-24V DC input range.
• Substantial 4 x 5A current capacity means it can drive up to 240W/480W per decoder at
12V/24V respectively.
• Adjustable dimming curve for a best fit for your application.
• Terminal block connectors for DMX communication.
• Mounting tabs are integrated into the chassis.
Copyright EnvironmentalLights.com
- 5A per Channel
Part number: DMX-4-5A
All Rights Reserved 10/1/18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DMX-4-5A and is the answer not in the manual?

Questions and answers

Summary of Contents for EnvironmentalLights.com DMX-4-5A

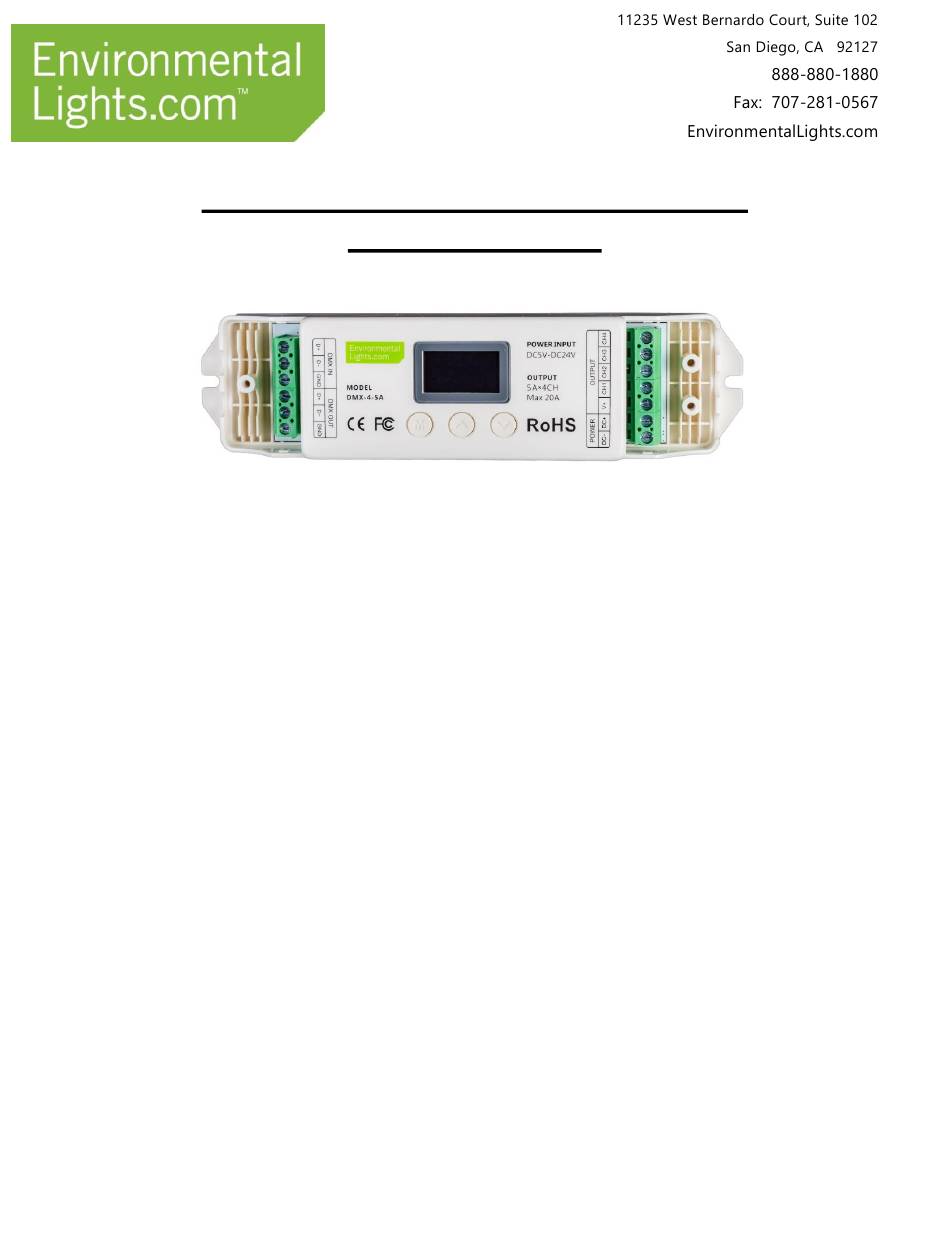

  • Page 1 Standalone 4 Channel DMX Decoder - 5A per Channel Part number: DMX-4-5A The Standalone 4 Channel DMX Decoder - 5A per Channel acts as both a DMX controller and a basic RGBW controller. An integrated high-resolution OLED display allows DMX settings and stand-alone modes to be configured directly on the decoder.
  • Page 2 Specifications 6.9” x 1.7” x 1.2” Dimensions: 175 mm x 44 mm x 30mm Output Channels: Input voltage: 5-24 Volts DC Max. current load: 4x5A Max. output power: 100W/240W/480W (5V/12V/24V) PWM frequency: 2,000 Hz Copyright EnvironmentalLights.com All Rights Reserved 10/1/18...
  • Page 3 1. Confirm that the power supply voltage matches the LED voltage and that the power supply is powered OFF. 2. Connect the LEDs and power supply to the DMX-4-5A using the screw terminals as shown in the diagram. Power supply positive and ground should be connected to “DC+”...
  • Page 4 Change the DMX starting address right in the top-level menu (press any key from the main screen or screen saver). With the DMX value selected, use the arrow keys to adjust the address. Holding down one of the arrows will speed through addresses. Copyright EnvironmentalLights.com All Rights Reserved 10/1/18...
  • Page 5 “Gamma” setting. Factory Reset returns all settings to default. A factory reset can also be accomplished in any menu by holding down all 3 buttons until the screen displays “Device Restore Default”. Copyright EnvironmentalLights.com All Rights Reserved 10/1/18...
  • Page 6 OFF setting disables the screen saver. Buzzer ON (default) causes the device to beep every time a button is pressed, OFF disables the beeping. The contrast setting will effectively reduce screen brightness, which can be useful in dark environments. Copyright EnvironmentalLights.com All Rights Reserved 10/1/18...
  • Page 7 Once you have tested the system successfully, you are ready to install it. We recommend you install LEDs, electronic controls and dimmers in such a way that you have access to them in case they fail. All electrical components can fail. Copyright EnvironmentalLights.com All Rights Reserved 10/1/18...
