11235 West Bernardo Court, Suite 102
San Diego, CA 92127
888-880-1880
Fax: 707-281-0567
EnvironmentalLights.com

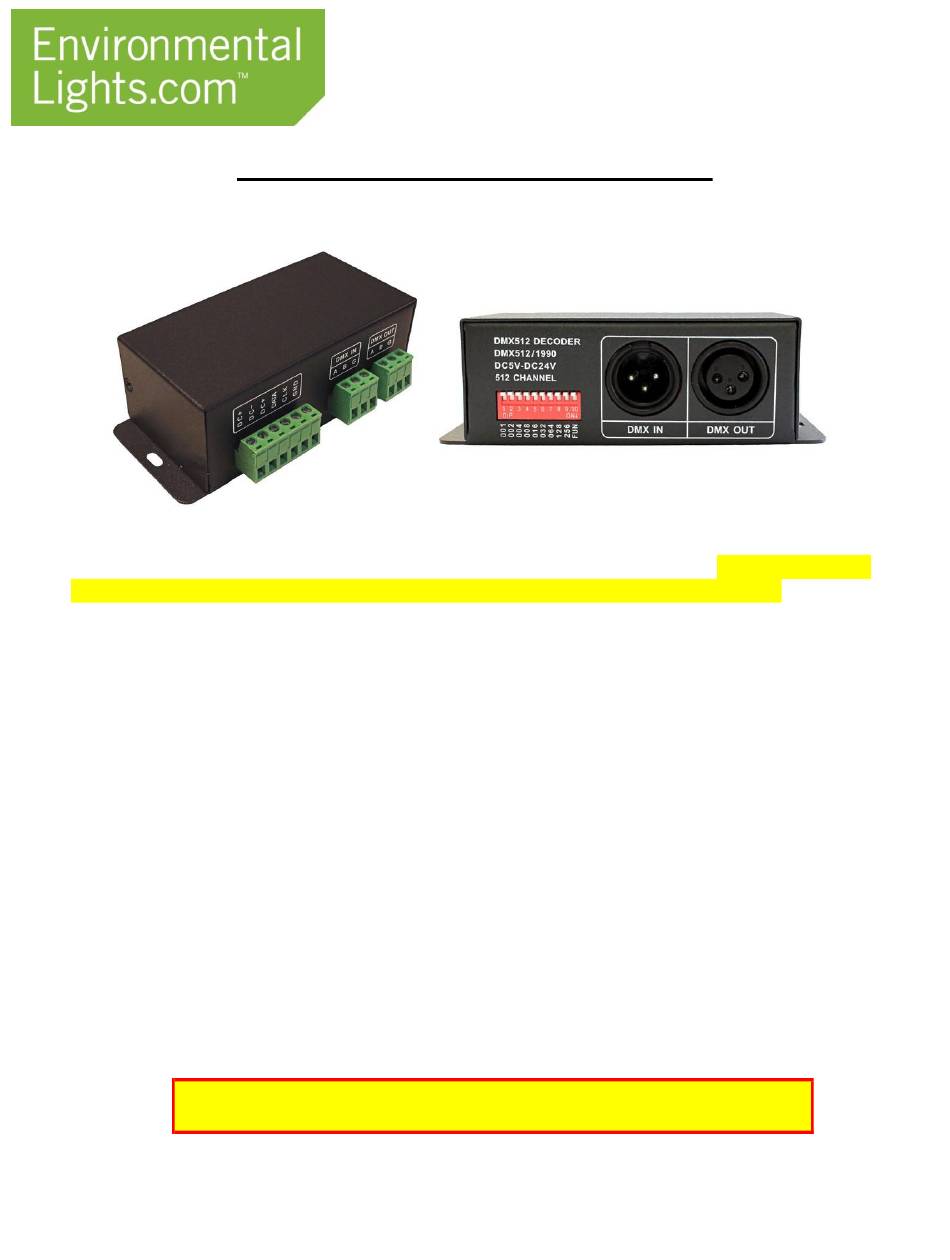

DMX 512 PixelControl Decoder Manual
Part number: DMX512-PX-V2
This is a key component for creating intelligent LED lighting, which enables the end user to
control digitally addressable RGB LED pixel lights using standard DMX512. We developed this
decoder to be compatible with our intelligent PixelControl RGB LED lighting family.
Specifically, the DMX512-PX-V2 is designed to be used in conjunction with RGB PixelControl
LED Strip Lights (waterproof and non-waterproof), RGB PixelControl Super Flat Rope, and
RGB PixelControl LED Neon.
Use the DMX512 PixelControl Decoder to create unique animated RGB color effects, such as
chasing, rotating graphic patterns, rain effects, pixel display text boards, color wave backlit
panels, and more. The DMX512-PX-V2 is a reliable way to control intelligent PixelControl RGB
LED lighting and can even be connected in a daisy chain, making it customizable for any type of
installation. This decoder is compatible with either a 3 or 5-pin (with adapter) DMX output from
your DMX console. When connected to a 5-pin DMX output, the DMX512 PixelControl
Decoder simply ignores the audio data from the 2 extra pins.
The DMX512-PX-V2 pixel decoder is compatible with our RGB PixelControl LED Strip Lights
(waterproof and non-waterproof), RGB 5050 PixelControl LED Super Flat Rope, and RGB
PixelControl LED Neon products. Our DMX512 PixelControl Decoder makes RGB
PixelControl easy to customize and control. The decoder is compatible with standard DMX
output from a DMX light board or DMX control system. The DMX512-PX-V2 translates
standard DMX output to the data signal input required by RGB PixelControl LED Strip Light.
CAUTION: Do not activate test mode (DIP switch #10) while the decoder
is powered on. See page 7 for more information.
Copyright EnvironmentalLights.com
1
All Rights Reserved 1/16/19
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for EnvironmentalLights.com DMX 512 PixelControl
Summary of Contents for EnvironmentalLights.com DMX 512 PixelControl
- Page 1 888-880-1880 Fax: 707-281-0567 EnvironmentalLights.com DMX 512 PixelControl Decoder Manual Part number: DMX512-PX-V2 This is a key component for creating intelligent LED lighting, which enables the end user to control digitally addressable RGB LED pixel lights using standard DMX512. We developed this decoder to be compatible with our intelligent PixelControl RGB LED lighting family.
- Page 2 RGB PixelControl Waterproof RGB PixelControl RGB PixelControl LED Strip Light - 60/m - LED Strip Light - 60/m - LED Strip Light - 144/m - 2.8m Reel 2.8m Reel 1.2m Reel RGB-pixelcontrol-60-10-2.8m wp-RGB-pixelcontrol-60-10-2.8m RGB-pixelcontrol-144-10-1.2m Copyright EnvironmentalLights.com All Rights Reserved 1/16/19...
- Page 3 DL-pixelcontrol-sphere *Note: This DMX512-PX-V2 decoder is not compatible with PixelPro LED products that use the DMX512-PX decoder. Please only use the DMX512-PX decoder for PixelPro LED Products and the DMX512-PX-V2 for PixelControl LED Products. Copyright EnvironmentalLights.com All Rights Reserved 1/16/19...
-
Page 4: Specifications
**Please note: An address bit is set ON and has a value = 1 in the down position Applications • Enables DMX control of PixelControl LED lighting to create bright animated effects for studios, stage lighting, architectural, or decorative purposes. Copyright EnvironmentalLights.com All Rights Reserved 1/16/19... - Page 5 The screw terminal blocks can be used as an alternate method for DMX I/O connectivity where A= DATA+, B=DATA-, and G= GND. Use only one DMX512 input port or connection method at a time. Copyright EnvironmentalLights.com All Rights Reserved 1/16/19...
-
Page 6: Wiring Instructions
2. Connect the ground input on the PixelControl lights to the ground (GND) terminal on the decoder. 3. Connect the power input on the PixelControl lights to the power output (DC+) terminal on the decoder. Copyright EnvironmentalLights.com All Rights Reserved 1/16/19... - Page 7 3. Make sure the DMX controller is powered on 4. Make sure the voltage from the power supply is the same voltage as the LEDs. Double check all wiring and turn the power supply on. Copyright EnvironmentalLights.com All Rights Reserved 1/16/19...
- Page 8 One pixel can contain one or more LEDs. For example, when referring to RGB PixelControl LED products, one pixel is equivalent to 7 LEDs. Use the DMX controller and DMX software to program the LEDs. Copyright EnvironmentalLights.com All Rights Reserved 1/16/19...
- Page 9 0 0 1 1 0 1 0 0 1 0 binary 100101101 = address 301" *Note: DIP switch 10 should always be “off” when in DMX mode. Keep signal lines away from power lines to avoid inductive coupling and signal corruption. Copyright EnvironmentalLights.com All Rights Reserved 1/16/19...
