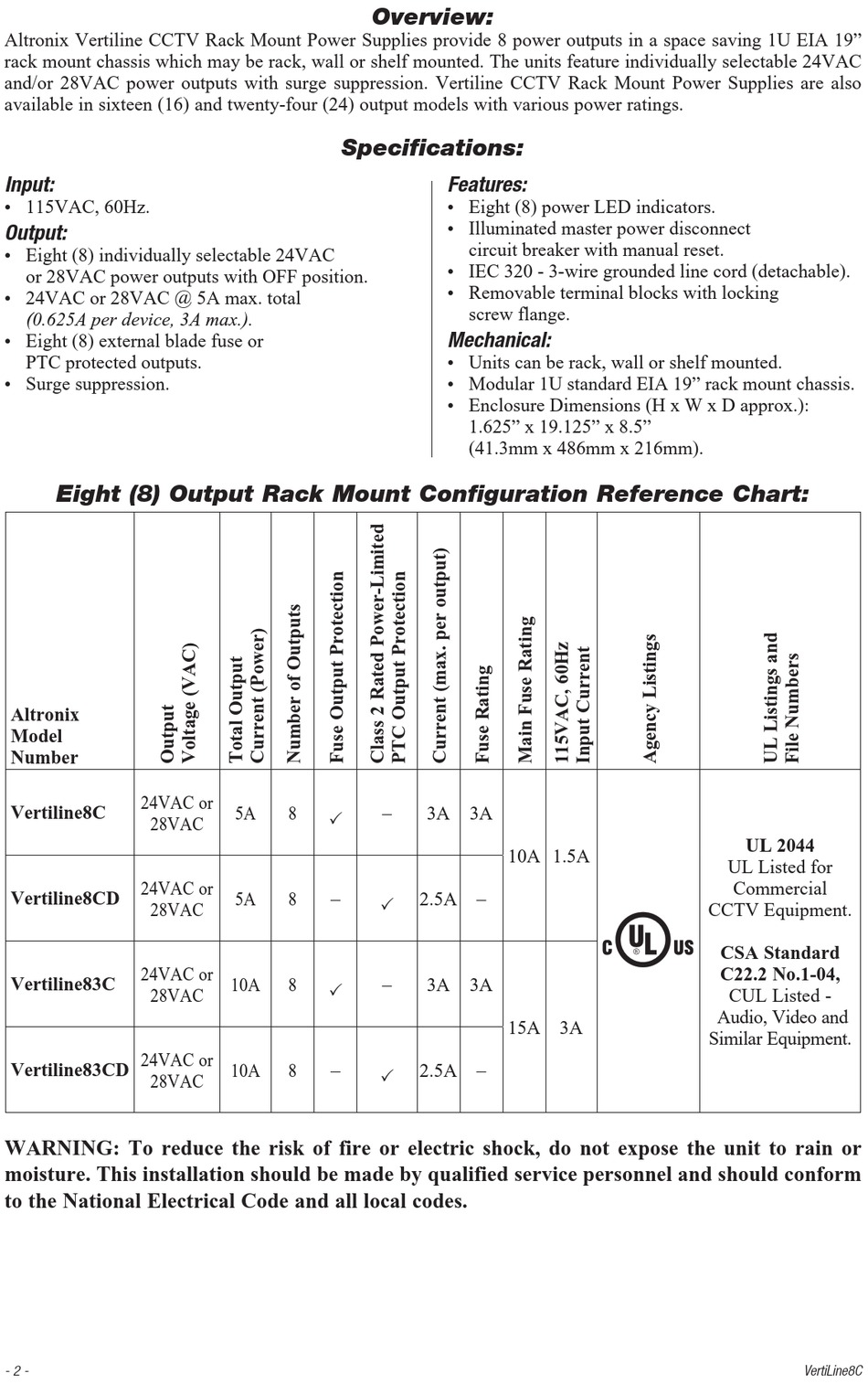

Specifications - Altronix Vertiline8C Installation Manual

Altronix Vertiline CCTV Rack Mount Power Supplies provide 8 power outputs in a space saving 1U EIA 19"
rack mount chassis which may be rack, wall or shelf mounted. The units feature individually selectable 24VAC
and/or 28VAC power outputs with surge suppression. Vertiline CCTV Rack Mount Power Supplies are also
available in sixteen (16) and twenty-four (24) output models with various power ratings.
Input:
• 115VAC, 60Hz.
Output:
• Eight (8) individually selectable 24VAC
or 28VAC power outputs with OFF position.
• 24VAC or 28VAC @ 5A max. total
(0.625A per device, 3A max.).
• Eight (8) external blade fuse or
PTC protected outputs.
• Surge suppression.
Eight (8) Output Rack Mount Configuration Reference Chart:
Altronix
Model
Number
24VAC or
Vertiline8C
28VAC
24VAC or
Vertiline8CD
28VAC
24VAC or
Vertiline83C
28VAC
24VAC or
Vertiline83CD
28VAC
WARNING: To reduce the risk of fire or electric shock, do not expose the unit to rain or
moisture. This installation should be made by qualified service personnel and should conform
to the National Electrical Code and all local codes.
- 2 -
Overview:

Specifications:

5A 8 –
P
5A 8 –
P
10A 8 –
P
10A 8 –
P
Features:
• Eight (8) power LED indicators.
• Illuminated master power disconnect
circuit breaker with manual reset.
• IEC 320 - 3-wire grounded line cord (detachable).
• Removable terminal blocks with locking
screw flange.
Mechanical:
• Units can be rack, wall or shelf mounted.
• Modular 1U standard EIA 19" rack mount chassis.
• Enclosure Dimensions (H x W x D approx.):
1.625" x 19.125" x 8.5"
(41.3mm x 486mm x 216mm).
3A 3A
10A 1.5A
2.5A –
3A 3A
15A 3A
2.5A –
UL 2044
UL Listed for
Commercial
CCTV Equipment.
CSA Standard
C22.2 No.1-04,
CUL Listed -
Audio, Video and
Similar Equipment.
VertiLine8C
