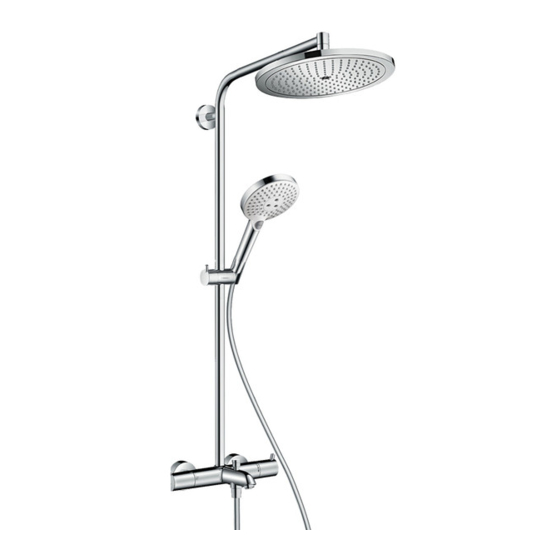

- Page 1 ZH 用户手册 / 组装说明 EN Instructions for use / assembly instructions Croma 280 Showerpipe 1jet EcoSmart 26789007...
- Page 2 中文 连接管线 G 1/2: 左热右冷 安全技巧 70°C / 4 分钟 热力消毒: 最大 装配时为避免挤压和切割受伤，必须戴上手 • 自动防止回流 套。 • 该产品专为饮用水设计！ 本产品只允许作为洗浴、卫生和洁身之用。 符号说明 头顶花洒夹持杆只为夹持头顶花洒而设计，不 得让其承载其它物品！ 请勿使用含有乙酸的硅胶！ 不得让儿童和肢体、精神和/或意识有障碍的 安全功能 (参见第页 11) 成人在不受监管的情况下使用淋浴系统。受酒 精或毒品影响的人员不得使用淋浴系统。 恒温阀芯的安全功能可以预先设定所希望的最高 必须避免让身体敏感部位（如眼睛）接触到莲 出水温度，例如最高温度为42℃ 蓬头喷水。必须保持莲蓬头与人头之间有足够 调节 (参见第页 10) 的距离。 该产品不得作扶柄使用。必须安装单独的扶 安装完成后必须检查调温器的出水温度。如在取 柄。 水处测量所得的温度与调温器上设定的温度有偏 冷热水管间过大的压力差必须予以平衡。 差，那么必须进行调整。 安装提示 保养 (参见第页 16) • 安装前必须检查产品是否受到运输损害。 安装 后将不认可运输损害或表面损伤。 • 单向阀必须在符合国家或当地的法律的情况下 • 管道和阀门必须根据通用标准进行安装、冲洗 按照DIN EN 1717定期检查（至少一年一次） 和检查。 。...
- Page 3 问题 原因 补救 - 水压不足 - 检查总水压 龙头出水量小 - 调压器过滤网脏污 - 清洁龙头前面和恒温阀芯的过 (#96922000) 滤网。 (#96922000) - 花洒过滤器元件有垃圾堵塞 - 清洗花洒和软管间的过滤网 - 单向阀有垃圾堵塞或漏水 - 清洗单向阀，如有必要则更换 串水，在龙头关闭的状态下，热 新的 水被强迫流入冷水管路，或者相 反。 龙头出水温度和温度设定的不符 - 恒温阀芯未被调节 - 调节恒温器 - 热水温度过低 - 将热水温度从42ºC升高到65ºC - 恒温阀芯表面结垢 - 更换-恒温阀芯 水温无法调节 - 过滤网有垃圾堵塞 - 清洗过滤网/更换过滤网 使用恒温龙头后，燃气热水器不 - 单向阀装反 - 正确安装单向阀 工作 - 手持花洒的流量限制器没有去 - 去除流量限制器 除 安装 (参见第页 6)
-
Page 4: Safety Notes
English • The product is not designed to be used with steam Safety Notes baths! Gloves should be worn during installation to prevent • If required, the bottom part of the pipe between the crushing and cutting injuries. fixture and the shower head can be shortened with a The product may only be used for bathing, hygienic fine-toothed saw. and body cleaning purposes. • If the continuous water heater causes any problems, The arm of the shower head is intended only to hold or you have different water pressures you must install the shower head. Do not load it down with other a water limiter to the cold supply, (ordered objects! separately,article number 97510000). Children as well as adults with physical, mental and/ Technical Data or sensoric impairments must not use this product Operating pressure: max. 1 MPa without proper supervision. Persons under the Recommended operating pressure: 0,1 - 0,5 MPa influence of alcohol or drugs are prohibited from Test pressure: 1,6 MPa using this product. (1 MPa = 10 bar = 147 PSI) Do not allow the streams of the shower touch Hot water temperature: max. 70°C sensitive body parts (such as your eyes). An Recommended hot water temp.: 65°C adequate distance must be kept between the shower Centre distance: 150±12 mm and you. -
Page 5: Operation
Special accessories (order as an extra) tile-matching-disk Chrome Plated #95239000 (see page 23) Cleaning (see page 18) Operation (see page 12) To empty the overhead shower after use, hold it in a slightly inclined position. Fault Cause Remedy Insufficient water - Supply pressure inadequate - Check water pressure (If a pump has been installed check to see if the pump is working). - Regulator filter dirty (#96922000) - Clean filter in front of the mixer and on the MTC-thermo cartridge (#96922000) - filter insert shower dirty - Clean filter seal between shower and hose Crossflow, hot water being forced - Backflow preventers dirty or - Clean backflow preventers, into cold water pipe, or vice versa, leaking exchange if necessary when mixer is closed Spout temperature does not - Thermostat has not been adjusted - Adjust thermostat correspond with temperature set - Hot water temperature too low - Increase hot water temperature to 42 ºC to 65 ºC Temperature regulation not possible - thermo cartridge calcified - Exchange thermo cartridge Instantaneous heater didn't work... - Page 6 Silicone X + 36 mm 36 mm max. 39 mm max. 5 mm SW 24 mm...
- Page 7 SW 30 mm (17 Nm)
- Page 8 Ø 6 mm...
- Page 9 SW 17 mm (10 Nm) SW 3 mm (4 Nm) 94246000 SW 2 mm (1 Nm)
- Page 10 SW 3 mm SW 3 mm (2 Nm)
- Page 11 SW 3 mm z. B. 42°C for example 42°C SW 3 mm (2 Nm)
- Page 12 开 / open 热 / hot 冷 / cold...
- Page 13 关 / close Crometta Vario 26332407 Rain IntenseRain...
- Page 14 4 8 8 3 4 2 15 3 Ø 2 8 6 19 6 15 0 ± 12 m a x . 10 0...
- Page 15 0,60 0,55 0,50 0,45 0,40 0,35 0,30 0,25 0,20 0,15 0,10 0,05 0,00 Q = l/min 9 12 15 18 21 24 27 30 Q = l/sec...
- Page 16 SW 3 mm SW 30 mm SW 10 mm 红色 ⁄ red SW 10 mm (20 Nm)
- Page 17 SW 3 mm (6 Nm) SW 30 mm (17 Nm)
- Page 18 中文 汉斯格雅产品的清洁建议 重要说明 肥皂，洗发水、沐浴液、染发剂、香水、刮胡水、 现代的卫浴龙头、厨房龙头、花洒、配件、盥洗 指甲油的残留也会对产品造成损伤。 台、浴盆和加热器采用的制造材料非常迥异，以适 此处：使用后要小心地用清水将剩余物冲洗干净。 应产品外形设计和使用功能的市场需求。 同样在产品下方不得存放洗涤剂和化学药品，例如 为了避免产品损坏和由此引发的投诉及争议，必须 不可放在用于洗脸盆的梳洗柜中否则挥发气体将损 在使用和清洁产品时遵循有关规程。 坏产品。 在已经损伤的表面继续使用清洁剂会给表面造成更 在保养汉斯格雅产品时，原则上必须注意： 大的损伤。 表面损坏的部件必须更换，否则会有受伤 • 只能使用那些有明确注明是适用于本产品的清洁 的危险。 剂。 • 不允许使用含有盐酸、蚁酸、氯漂或醋酸的清洁 剂，因为这些清洁剂会给产品表面造成严重的损 不按规定进行清洁而造成的任何损坏不在本公司产 伤。 品保修范围之内。 • 含磷酸的清洁剂必须在特定条件下使用。 QuickClean • 不允许将两种以上清洁剂混合使用。 有了QuickClean，手工清洁功能，要去掉喷头上的 • 不允许使用具有研磨作用的清洁工具和设备，如 水垢，只需简单地搓除即可。 不适合的清洁粉末、海绵垫或超细麦克布。 • 必须严格遵守清洁剂生产厂商的使用说明。 担保 • 严格遵守清洁剂的用量和作用时间，决不允许清 洁剂的作用时间长于规定值。 Hansgrohe 向用户保证，该产品无制造 缺陷。如果 • 定期的清洁以预防水垢。 自购买之日起五年内出现缺 陷，Hansgrohe 将免费 • 不允许将清洁剂直接喷射到汉斯格雅产品上，因...
-
Page 19: Warranty
English Cleaning Recommendation for • After cleaning rinse thoroughly with clean water to remove any cleaner residue. Hansgrohe Products • The use of steam cleaners is not permitted. The high Today, modern sanitary and kitchen tapware, showers, temperatures can damage the products. accessories, washstands, tubs and radiators consist of Important very different materials to comply with the needs of the Residues of toiletries such as liquid soaps, shampoos and market with regard to design and functionality. shower gels, hair dyes, perfumes, aftershave and nail To avoid damage and reclamations, it is necessary to varnish can also cause damage. consider certain criteria when cleaning. Here too: Carefully rinse with water after use to remove residues. With regard to caring for the Likewise, do not store any cleaning agents or chemicals Hansgrohe products, the following under the products, for example in a vanity unit, as the must in principle be heeded: vapours may damage the products. The damage of already damaged surfaces will • Only use cleaning material which is explicitly provided deteriorate under the effect of the cleansers. - Page 20 SW 2 mm SW 17 mm SW 17 mm (10 Nm)
- Page 21 SW 2 mm (1 Nm) > 1 min SW 4 mm SW 4 mm (2 Nm)
- Page 22 94246000 93339000 > 1 min...
- Page 23 98187000 95688000 98165000 (50x2) (20x2) 98447000 92166000 (M6x5) 93072000 96179000 94246000 92137000 95659000 98942000 (M4x6) 98131000 (15x2,5) 98941000 95692000 97606000 95239000 26221007 96743000 98419000 (7x2) 95160000 95795000 (EcoSmart) 98131000 (15x2,5) 98214000 93339000 (12x2) 94246000 96737000 98915000 94140007 96466000 (M4x14) 97738000 96467000 96922000 98916000...
