Related Manuals for Redback E435C
Summary of Contents for Redback E435C

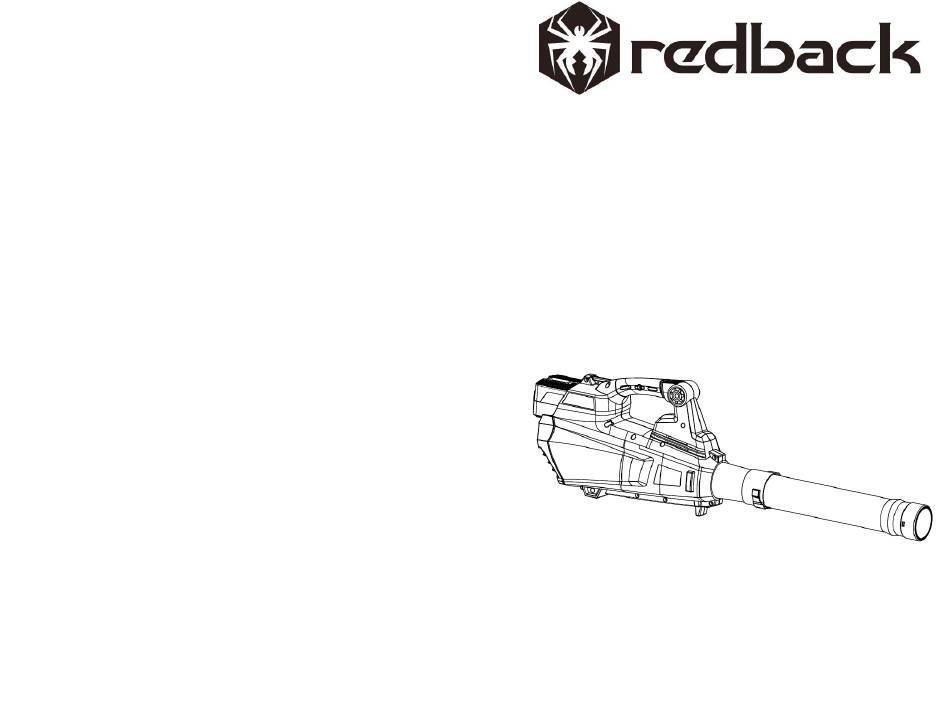

- Page 1 40V LITHIUM-ION CORDLESS BLOWER Model: E435C Operations Manual www.redbacktool.com support@redbacktool.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS to recharge REDBACK 40V battery packs. Never try to recharge non- • Symbols……………………..1 rechargeable batteries. If the charger is • Safety Instructions………………2 plugged in and no LED lights are • Maintenance and Care..……….7 illuminated, unplug and check with your •... -
Page 3: Safety Instructions
Operate the unit only in the technical condition as stipulated and delivered by Safety Instructions the manufacturer. User Arbitrary changes to the unit will exclude This garden tool is not intended for use the manufacturer from any liability for by persons (including children) with resulting injury and/or damage. - Page 4 when barefoot or wearing open sandals. 4. Keep proper balance and footing at Avoid wearing clothing that is loose all times. Do not overreach. Never stand fitting or that has at a higher level than the base of the hanging cords or ties. machine when feeding material into it.
- Page 5 General Power Tool 11. Do not transport this machine while Safety Warnings the power source is running. 12. Stop the machine and remove the battery pack from the machine. Make sure that all moving parts have come to The term "power tool" in the warnings a complete stop refers to your main-operated (corded) - whenever you leave the machine,...
- Page 6 grounded. equipment such as dust mask, non-skid 3. Do not expose power tools to rain or safety shoes, hard hat, or hearing wet conditions. Water entering a power protection used for appropriate tool will increase the risk conditions will reduce of electric shock.
- Page 7 Power Tool Use and Care Properly maintained cutting tools with 1. Do not force the power tool. Use the sharp cutting edges are less likely to correct power tool for your application. bind and are easier to control. The correct power tool will do the job 7.
-
Page 8: Maintenance And Care
ejected from the battery may cause plastic components, away from irritation or burns. flammable fluids, petroleum products, penetrating oil, etc. They Service contain chemical substances which Have your power tool serviced by a may damage, attack or destroy the qualified repair professional using only plastic components of the leaf the identical replacement parts. -
Page 9: Major Parts Of The Blower
MAJOR PARTS OF THE BLOWER 1. Battery pack 7. Speed raising button 2. Handle 8. Start button 3. Blower housing 9. Speed-reducing button 4. Blower housing outlet 10. Stop button 5. Blower tube 11. LED indicator 6. Blower tube outlet... -
Page 10: Exploded View And Part List
EXPLODED PARTS VIEW... - Page 11 PARTS LIST...
-
Page 12: Product Specifications
PRODUCT SPECIFICATIONS Model E435C Rated Voltage 40V DC Max Air Volume 385cmf(11m³/min) Max Air Speed 121mph (54m/s) Weight (without EP40 battery pack) 5.5 lbs 97 dB(A), K=3.0 Sound pressure level 110 dB(A) Guaranteed sound power level Vibration ＜2.5m/s2 Uncertainty K= 1.5m/s Battery Pack Lithium Ion –... -
Page 13: Assembly And Operation
that the battery is securely locked into ASSEMBLY AND place. OPERATION 2. To remove the battery, press and Assembling the Blower hold the latch on the rear of the battery Tube pack and slide the battery away from the blower. GENERAL SAFETY WARNING #2 The blower tube can be installed on the... -
Page 14: Battery Charger Function
to ‘High’ Speed. cool area. Temperatures above or below normal room temperature will shorten Operating the Blower battery pack life. 1. To keep from scattering debris, blow 2. Never store batteries in a discharged around the outer edges of a debris pile. condition. -
Page 15: Disposal
charged and can be removed. parts are identified for recycling • LED flashes red - Battery fault or according to material type. overheat Charging the Battery Do not open disused batteries. 1. Plug the charger into an AC outlet Accumuiators/batteries should be 100-250V (normal household voltage). -
Page 16: Guarantee/Warranty
GUARANTEE misuse, abuse or neglect; commercial use (industry, craft, /WARRANTY rental) This product has been manufactured to repairs attempted by unauthorized the highest quality standards. When a repair centers new product is purchased, it is damage caused by external effects, guaranteed a 12-month manufacturer’s foreign objects, substances or warranty which comes into force on the...
