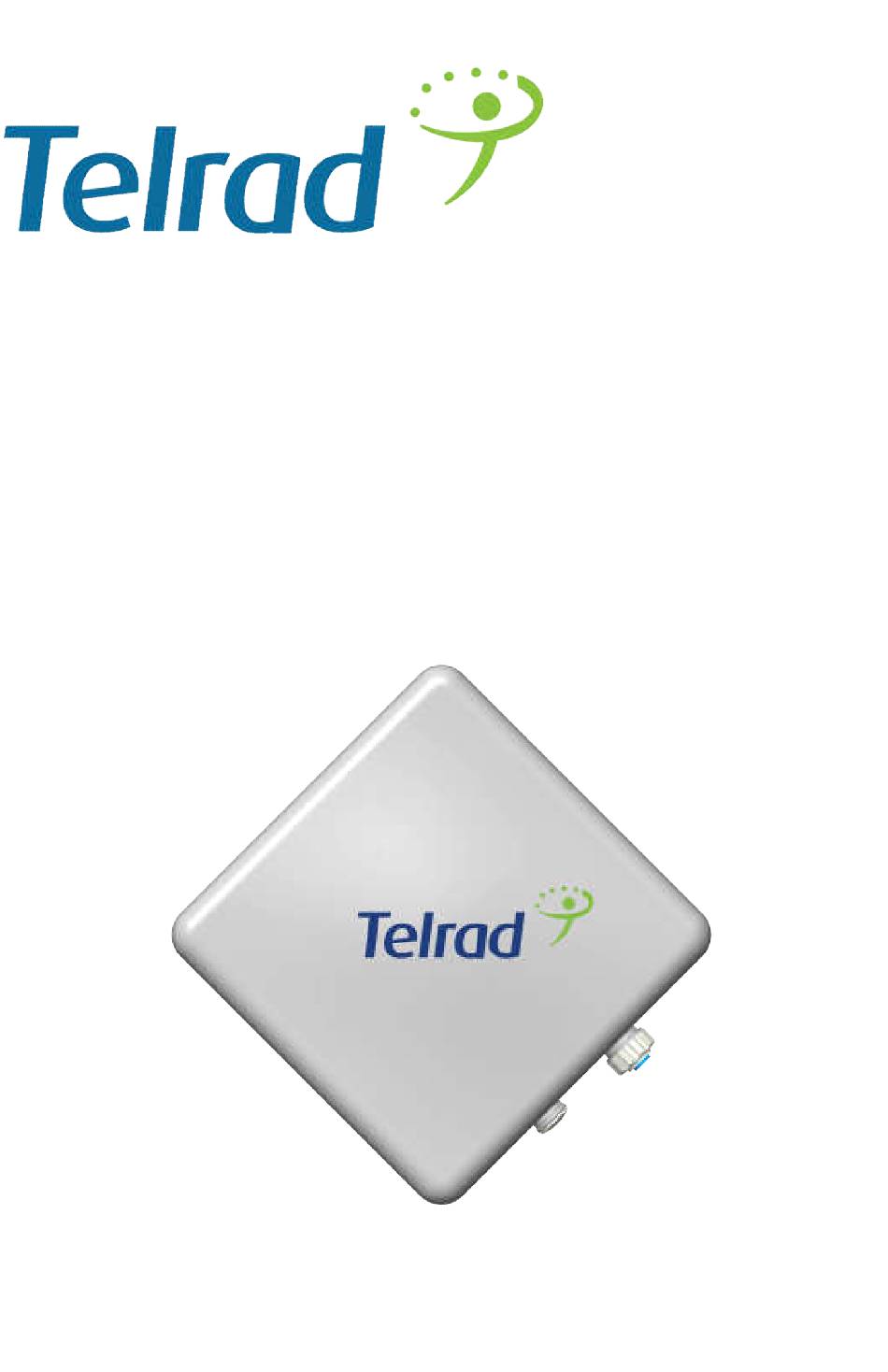

- Page 1 LTE CPE12300XG Quick Installation Guide...
-
Page 2: Before You Begin

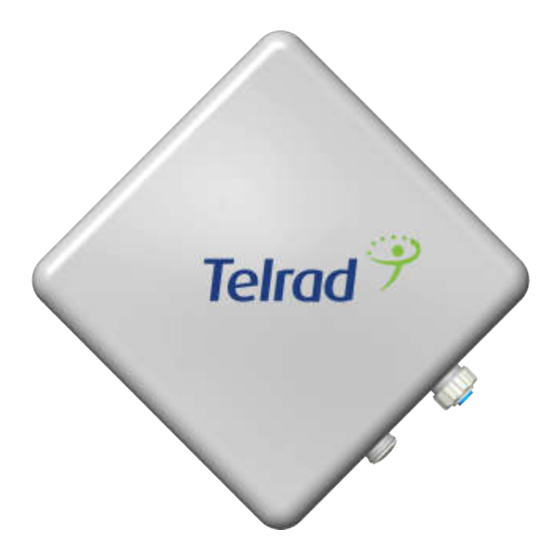

This Quick Installation Guide covers the basic installation of the CPE12300XG Outdoor. Overview The CPE12300XG is a category 12 LTE UE designed to provide wireless Internet access for a home or small office. Before you Begin Check the following items in this package:... - Page 3 PoE Injector Bracket U shape bolt for ≤2" Nut M6...
-
Page 4: Led Indicators
SEMS Screw M6x12mm Getting to know the CPE Note: The figures below are provided only for reference purposes. See the actual product for more details. LED Indicators Colour Status Description Indicator Level -5 24 <= SINR Level -4 16 <= SINR < 24 Signal Blue Level -3... - Page 5 Level 0-LED SINR < 1 Device is Powered On Blue Device is Powered Off Ethernet connection is established. Blue Ethernet connection is not established SIM card is inserted/ detected Blue SIM card is not detected/Inserted Placing the CPE Place the CPE outdoors facing open area and eNodeB. Obstructions such as concrete walls, glass partitions or wooden walls affect the transmission and reception of wireless signals.
- Page 6 To mount the CPE to wall, follow the steps below (left to right) as described in the next paragraph: Connecting the CPE Install the USIM card This CPE is specially designed for the 4G LTE network. Please check that you have a valid USIM card from the service provider. Open the USIM Card Slot lid.
- Page 7 Connect Ethernet cable. Put the lid cover back. Remove the USIM card Open SIM Slot Lid cover and Push USIM card to eject it from the slot. Connecting External Device(s) to the CPE To use the Internet connection and configure the CPE settings, you must connect your CPE to a computer.
- Page 8 The web based utility of the CPE is a web browser based configuration interface that allows easy device set up, configuration and management through internet browser. For example: on a PC with Windows XP or higher version: Connect the hardware of the CPE correctly. Set the IP address of the connected computer and ensure that the IP address of the computer is in the same segment as that of CPE.
- Page 9 FAQ: The power indicator is not ON. Check if the POE Power Supply is plugged properly into AC socket. Check if the LED on the POE power supply is Green indicating it is correctly plugged in AC. Check if the power adapter meets the requirement and specification.
- Page 10 Device cannot access the internet Check that Operator has provided internet access services. Check that IP address is automatically taken. Check that firewall rules are not blocking your internet service. Throughput performance is not OK Ensure that there are not too many users under the same LTE Cell. ...
- Page 11 -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment.
- Page 12 This device complies with the Canadian ICES-003 Class B specifications. CAN ICES-003(B)/ NMB-003(B) IC: 899A-CPE12300XG ISED RF Exposure Statement This device complies with ISED RSS-102 RF exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the IC RSS-102 RF exposure limits, human proximity to the antenna shall not be less than 50cm (20 inches) during normal operation.
- Page 13 Cet appareil est conforme aux limites d'exposition aux rayonnements de la CNR- 102 définies pour un environnement non contrôlé. Afin d'éviter la possibilité de dépasser les limites d'exposition aux fréquences radio de la CNR-102, la proximité humaine à l'antenne ne doit pas être inférieure à 50 cm (20 pouces) pendant le fonctionnement normal.
