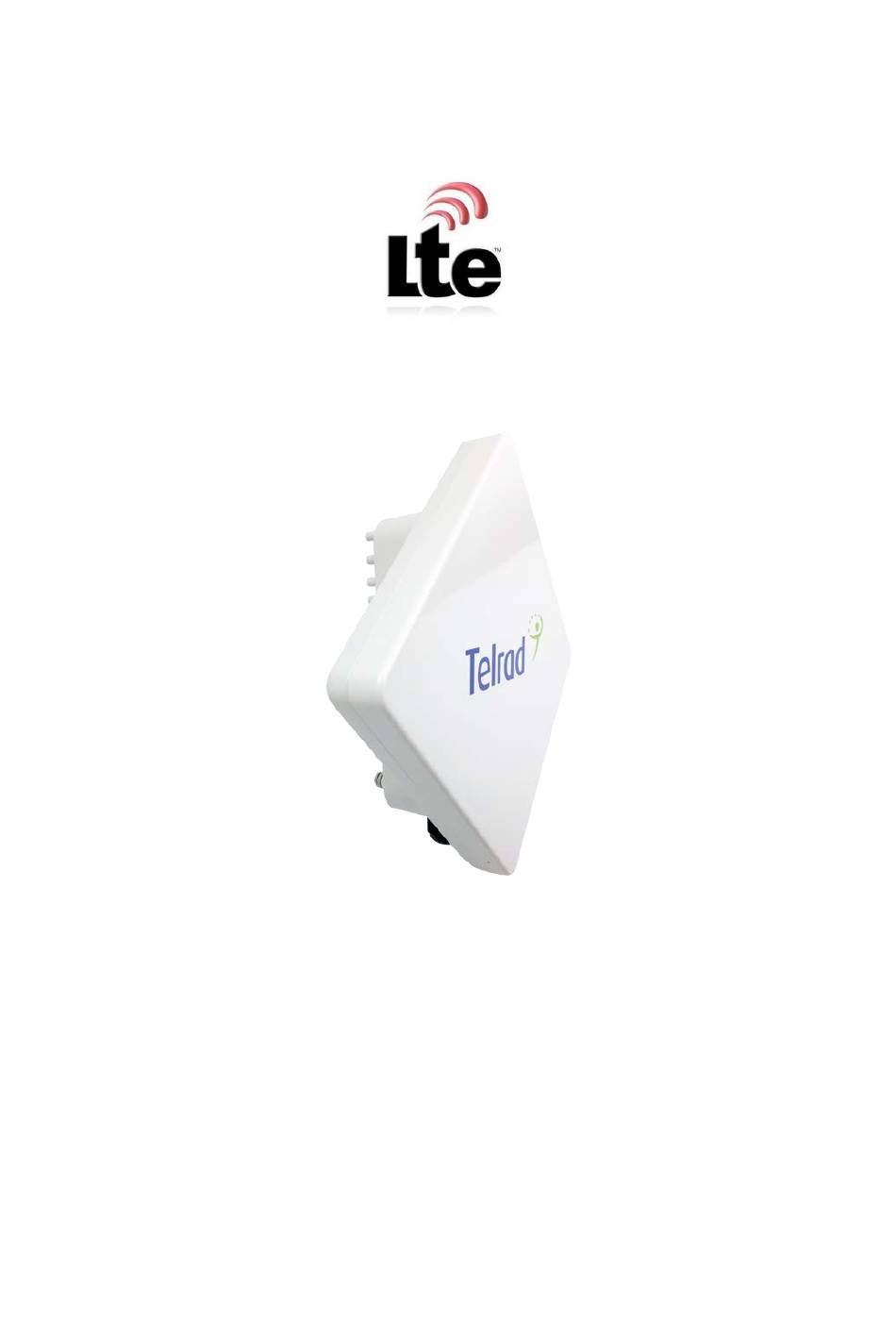

- Page 1 CPE8100 Outdoor CPE Quick installation guide V1.0 Page 1...
- Page 2 PLEASE READ THESE SAFETY PRECAUTIONS! RF Energy Health Hazard The radio equipment described in this guide uses radio frequency transmitters. Although the power level is low, the concentrated energy from a directional antenna may pose a health hazard. Do not allow people to come in close proximity to the front of the antenna while the transmitter is operating.
- Page 3 (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable. Users can obtain Canadian information on RF exposure and compliance from the Canadian Representative: Nick Dewar Nick.Dewar@Telrad.com Page 3...
-
Page 4: Table Of Contents
Table of Contents OVERVIEW ..............................5 NTERFACE PECIFICATION ..................... 5 GETTING STARTED ..........................5 EVICE OGIC CONNECTION ......................6 (ODU) – P NSTALLING UTDOOR OUNT ............... 7 (ODU) – W NSTALLING UTDOOR OUNT ..............7 ROUNDING ............................ -
Page 5: Overview
1. Overview CPE8100 is a high performance LTE CPE (Customer Premises Equipment) product designed to enable quick LTE service deployment to the remote customers. It provides high data throughput and networking features to end users who need both bandwidth and roaming capabilities in the certain area. -
Page 6: Device Logic Connection
3) Installing the Equipment Device Logic connection For outdoor CPE product, it is suggested that the CPE device be installed in a shaded area to avoid direct sun light exposure which may cause over heat in certain extreme weather condition. -
Page 7: Installing Outdoor Unit (Odu) - Pole Mount
Installing Outdoor Unit (ODU) – Pole Mount Installing Outdoor Unit (ODU) – Wall Mount Note: The wall screws and screw anchors are not part of the package. Recommended screw size minimum 50mm length and 6-8mm diameter. Page 7... -
Page 8: Grounding
In any event, Telrad is not liable for any injury, damage or regulation violations associated with or caused by installation, grounding or lightning protection. -
Page 9: Led Display
Connect one of a grounding cable to the grounding screw and firmly tighten the grounding screw. Connect the opposite end of the grounding cable to a good ground(earth) connection. 2 LED Display LED Indicator Function Description Power Indicator Green Color – Device is powered on Fast Blinking –... -
Page 10: Managing Cpe Device
3 Managing CPE Device CPE8100 is a user-friendly LTE CPE, and very easy to configure and setup. Subscribers can just connect the device to their computer or home switch/router and the device is ready to provide Internet Services. WEB Login ... -
Page 11: Device Status
Once the user is logged in, the following window device status window will be prompted for viewing. It contains both the system information, networking and device information configured for the device. For further configuration instructions, please refer to CPE8100 user manual. 4 FAQ and Troubleshooting 1) My PC cannot connect to the CPE. - Page 12 First check if the NIC is up and working properly. Then check the PC NIC configuration and make sure the DHCP is enabled. Open the MS-DOS window, enter “ipconfig /release” and “ipconfig /renew” commands and see if PC can obtain IP correctly. ...
