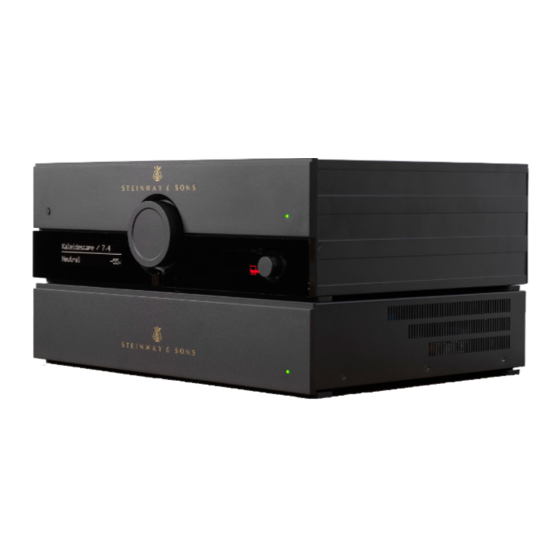

- Page 1 PRELIMINARY INSTALLATION MANUAL MODEL P300 Version 0.1/fsm Steinway & Sons P300 OWNER’S MANUAL [Skriv tekst] Version 1.0...
-
Page 2: Table Of Contents
Table of Contents Compliance ......................4 Pre-Installation ..................... 5 Unpacking the Product ..................5 Operating Voltage .................... 5 Ventilation Requirements ................. 6 Heat output ....................... 6 Home Automation System Integration ..............7 Preparing for Mounting in a Rack ................ 7 Rear Panel ...................... - Page 3 Room Measurements Above 90% RoomKnowledgeFejl! Bogmærke er ikke defineret. Video Setup ....................... 20 Video Output ....................20 Video Input ..................... 20 Audio Setup ....................... 21 Audio Processing ................... 21 Voicing Setup ....................21 Zone B ....................... 21 Setup ......................21 System Configuration ..................
-
Page 4: Compliance
Steinway Lyngdorf products and accessories comply with parts 15 and 68 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference;... -
Page 5: Pre-Installation
Unpacking the Product Carefully remove the unit and accessory kit from the carton and check for shipping damage. Contact both the shipper and your Steinway Lyngdorf representative immediately if the unit bears any sign of damage. Note: Keep the shipping carton and all packing material for future use. If this unit is shipped without the original packing, damage could occur and void the warranty. -
Page 6: Ventilation Requirements
Heat output Maximum: 85W / 290 BTU/hr. Cables and Plugs Use only mains cables and power plugs approved by Steinway Lyngdorf. Using other types may cause damage to the system and will void the warranty. Connecting For cabling between the processor and amplifiers, please use RJ45 to RJ45 B standard cables. Use only cables and connectors approved by Steinway Lyngdorf. -
Page 7: Home Automation System Integration
Home Automation System Integration The Model P300 is compatible with home automation systems via the RS232 and network connector on the rear socket panel. The Model P300’s IR and trigger connections can also be programmed for use in a home automation system. IP Control Open a TCP connection on port 84 and use the same protocol as on the serial interface (see Model P300 Serial Control Manual). -
Page 8: Rear Panel
• 1 16-channel AES67 digital AES/EBU output (optional upgrade). • 5 Digital Link outputs for connecting Steinway Lyngdorf’s amplifiers. Note: In Standby mode, only LAN A is active; LAN B connector is not active. Steinway & Sons P300 Owner’s manual... -
Page 9: Remote
Remote The Model P300 comes with a dedicated RF and IR remote control for installations and everyday use. Setup Access the installation menu. Standby Turn the Model P300 on and into standby. Audio Access the post-processing menu. “Picture-in-picture” and other multi-view formats. Up/Down Move up and down in menus. -
Page 10: How To Pair Remote
How to Pair Remote The remote control is paired to the Model P300 at the factory, and you only need to pair it again if you have a new Model P300 or remote. To pair the RF remote control to a Model P300: 1. -
Page 11: Setup Procedure
Setup Procedure Set up the Model P300 surround sound processor by following these steps: 1. Check that the mains voltage switch on the A1/A2 amplifiers is correctly set to either 115V or 230V. 2. ID-assign all Model A1/A2 amplifiers via dip-switches on the A1/A2 socket panel according to the project-specific wiring diagram. -
Page 12: Installation Via Osd
Installation Via OSD We recommend setting up the Model P300 via the OSD setup guide. Connect a screen to the Model P300 using any of the video output sockets on the back. Access the menu system by pressing the Setup button on the remote control. Note: There are some differences between the options available via the web interface and OSD. -
Page 13: Source
HOME Screen The HOME screen refers to the daily operation as performed with the remote control. The page displays selected input and formats. Loudness management turns on a traditional loudness function for low playback level as well as functions dedicated to the specific formats being decoded. These functions are managed in the setup menu: Audio Setup / Audio Processing. -
Page 14: Edit
Video input Select the video input. Preset vTuner station Select and preset a vTuner internet radio station. Speaker configuration Select which speaker configuration to use. Trigger out Choose which trigger output to activate when using this source. Audio input Select the audio input. This procedure must be followed for all connected sources. -
Page 15: Speaker And Room
To add a file, insert a USB stick with the speaker configuration file you have received from your Steinway Lyngdorf representative, select the file and press Add. The speaker configuration will be added to the Speaker Configuration list. After adding the speaker configuration, it will be visible as a menu below Speaker Configuration. - Page 16 If the woofers are lower than the listening position, measure the distance from the listening position to the top dust cap of the top woofer. If in doubt, contact your Steinway Lyngdorf representative for guidance. Do not measure distances at floor level, as these measurements will not give acoustically accurate results.
-
Page 17: How To Set Up Roomperfect
If the microphone has been dropped on the floor, it may be damaged. If this is the case, obtain a new microphone from your Steinway Lyngdorf representative before performing the system calibration. Volume Setting The system guides you through the selection of a proper calibration volume level. -
Page 18: Measuring The Focus Position
Measuring the Focus Position When the calibration volume has been set, RoomPerfect™ will send a range of tones to measure the focus position. If there is noise in the room, the measurement may take longer. This will not affect the quality of the end result. See RoomPerfect™... - Page 19 • the microphone should not be closer than 0.5m/1.5ft from the floor, ceiling, and walls. • the microphone should be at least 1m/3ft from the front of the loudspeakers. • there should be at least 50cm/1.5ft between each measurement. • do not take symmetrical measurements in the room.
-
Page 20: Video Setup
Video Setup The Video Setup menu allows you to register the video system settings for the Model P300 video inputs and outputs, which in turn dictates which video formats can be shown on the screen when these inputs and outputs are activated. -
Page 21: Audio Setup
Audio Setup Audio Processing This menu allows you to manage the audio processing presets for DTS, NeoX, AURO, and Dolby. Voicing Setup A voicing is an equalizer filter that can be activated to amplify or attenuate certain frequencies according to your personal preferences. -
Page 22: System Configuration
System Configuration General Setup Power management • Choose the standby mode: Deep sleep – The Model P300 cannot be turned on via LAN or a control system. Network - The Model P300 can be turned on via LAN or a control system. The Model P300 cannot turn on from standby via LAN B;... -
Page 23: Trigger In Setup
Choose the level of information to show on the OSD. Trigger In Setup Allows you to set up the system so that it can be switched on via an external device in the system. Trigger Out Setup Allows you to set up the system so that the Model P300 can control other devices in the system. Network Configuration Change the network mode to manual or automatic. -
Page 24: Manage Software
Manage Software From this main menu you can access Model P300 software information, backup, restore, etc. Software Information Show reference information about the current software in the Model P300. Network Information Show reference information about the network status of the Model P300. Backup Make a complete system backup, including speaker setup and RoomPerfect™... - Page 25 Update Via OSD Interface 1. Upload the update to a SD-card or a FAT 32 formatted pendrive. 2. Insert the SD-card/pendrive into the Model P300 3. Select the file in the menu and click OK on the remote control. Note: System settings and RoomPerfect™ data remain intact during software updates.
-
Page 26: Troubleshooting
Troubleshooting RoomPerfect™ The calibration microphone is very sensitive and may pick up unwanted noise, including subsonic signals and background noise, which disturbs the measurements. If the signal is disturbed, it will take longer for the system to make a correct measurement. A measurement that has been disturbed by noise but completed will always be correct;... - Page 27 Retrieving and Sending an Error Log To retrieve an error log, you need to access the Model P300 via your browser. Here you can download a text file and email it to your Steinway Lyngdorf representative. 3D Compatibility Not Detected If the Model P300 isn´t fully booted, a Blu-ray player will not be able to detect its 3D compatibility.
-
Page 28: Network Setup
Network Setup Connecting to Model P300 with a Network Cable It is possible to get access to the Model P300´s web interface via a direct cable connection between the Model P300 and a computer, or a connection via a hub or switch. If you have a direct cable connection to a laptop (with no switch or router between the two) the network cable must be a crossover type. -
Page 29: Set Up A Fixed Ip Address In Windows Xp Or Windows 7
Set Up a Fixed IP Address in Windows XP or Windows 7 Click Start / Control Panel / Network Connections to find the network connection that represents your connection to the Internet. Most often, this is labeled simply Local Area Connection. Right-click the connection and select Properties. - Page 30 Set Up a Fixed IP Address in Windows Vista or Windows 10 In Windows Vista, click Start / Control Panel / Select Network and Internet / Network and Sharing Center. In Windows 10, right-click Start, then select Control Panel. Select Network and Internet / Network and Sharing Center.
-
Page 31: Trademarks
Trademarks DTS is a registered trademark & the DTS logos and Symbol are trademarks of DTS, Inc. Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS is a registered trademark and the DTS logos, Symbol, DTS-HD Master Audio are trademarks of DTS, Inc. -
Page 32: Service Information
Service Information In order to obtain warranty service, you must contact your original dealer or the Steinway Lyngdorf distributor of the region or country where you are located. If you have trouble locating an authorized representative, please contact service@steinwaylyngdorf.com. Steinway Lyngdorf... - Page 33 Steinway & Sons P300 Owner’s manual...
