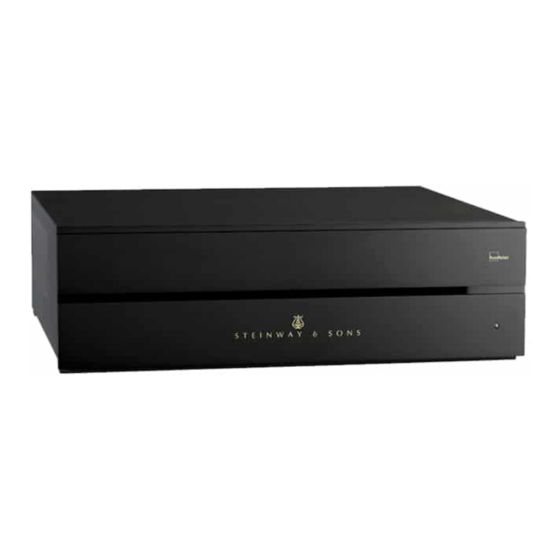

STEINWAY LYNGDORF P1 Installation Manual

Surround sound processor
Hide thumbs Also See for P1:
Table of Contents

Advertisement

Quick Links

MODEL P1 SURROUND SOUND PROCESSOR
INSTALLATION MANUAL
VERSION 1.9
[Skriv tekst]

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P1 and is the answer not in the manual?

Questions and answers

Related Manuals for STEINWAY LYNGDORF P1

Summary of Contents for STEINWAY LYNGDORF P1

  • Page 1 MODEL P1 SURROUND SOUND PROCESSOR INSTALLATION MANUAL VERSION 1.9 [Skriv tekst]...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS ..................2 INTRODUCTION ....................3 COMPLIANCE ....................3 PRE-INSTALLATION ..................4 OPERATING VOLTAGE ..................7 VENTILATION REQUIREMENTS ...............7 CABLE CONNECTIONS ..................7 HOME AUTOMATION SYSTEM INTEGRATION..........8 IP CONTROL ......................8 INSTALLATION ....................9 TROUBLESHOOTING ..................36 NETWORK SETUP ................... 38 POWER SUPPLY SPECIFICATIONS ............... 42 TRADEMARKS ....................

  • Page 3: Introduction

    This Installation Manual was created to assist you with setting up and using your Steinway Lyngdorf electronics and accessories. Please read all material carefully prior to installation or first use of your Steinway Lyngdorf product. If you need additional assistance, contact your Steinway Lyngdorf representative or email service@steinwaylyngdorf.com.

  • Page 4: Pre-Installation

    Carefully remove the unit and accessory kit from the carton and check for shipping damage. Contact both the shipper and your Steinway Lyngdorf representative immediately if the unit bears any sign of damage. All Steinway Lyngdorf equipment is carefully inspected before leaving our factory. Note: Keep the shipping carton and all packing material for future use or in the unlikely event that the unit needs servicing.
  • Page 5 Rear Socket Panel Component video input Composite and S-video input HDMI input and output (5 input and 1 output) RS232 connector for home automation control Network connection USB service connection (SW updates/loading speaker setups) Component video output (BNC: main / RCA: zone 2) Composite output S-video output Compact flash card slot...
  • Page 6 LED signaling - P1 Red: Standby Green: Blinking green: Switching on Orange: Zone 2 active Blinking red: Power failure Blinking red/green: Update of software. When update is complete, the P1 will automatically switch off and on again.

  • Page 7: Operating Voltage

    Note: it is of utmost importance that the mains voltage switch is set appropriately. Turning the product on with the incorrect voltage setting will cause serious damage to the product. Use only mains power cables and power plugs approved by Steinway Lyngdorf or you may cause damage to the electronics and infringe the warranty.

  • Page 8: Home Automation System Integration

    Apple Inc.´s “Bonjour Print Services” software on the computer you want to set up the Model P1 with. This software will make it easy to access the Model P1 on the network. For Windows operating systems the software can be found at http://www.apple.com/support/bonjour/.

  • Page 9: Installation

    (see illustration). Keep the feet, screws and washers for future use. The screws used to fasten the rack brackets to the Model P1 are in the holes designated for the brackets when the product leaves the factory. Remove these four screws from the Model P1 using the same screwdriver you used to detach the feet from the Model P1.
  • Page 10 Should be placed in an environment free of excessive heat; • When placed in a rack system, Model P1 should be placed at the bottom of the rack, with the amplifiers above it. This allows for proper dissipation of the heat generated by the amplifiers...
  • Page 11 The Installer Remote The Model P1 comes with a dedicated remote control for use in installations and updates involving a connected screen. … Move up and down in menus; Browse available settings in a menu … Move left and right in menus OK …...
  • Page 12 Use the Installer Remote to Name Sources In the Source Setup menu you can name sources you have connected to the Model P1. This is done using the arrow buttons on the Installer Remote. When you have selected the Edit option in the menu, press the up or down arrow buttons to highlight the source you wish to rename, then press OK.
  • Page 13 3. Connect speakers to the Model A1/A2 amplifiers. 4. Connect Model A1/A2 amplifiers to Model P1 and to each other as shown in the project- specific wiring diagram included with every Steinway Lyngdorf system. 5. Connect external audio and video sources to the Model P1.
  • Page 14 Installation via Installer Remote: Connect a Screen You can connect a screen to the Model P1 using any of the video output sockets on the back of the Model P1, such as HDMI or component. However, the zone video outputs are off by default and cannot be used for system setup purposes.
  • Page 15 2. Connect all speakers to the amplifiers and connect the amplifiers to the Model P1 processor as shown in the wiring diagram for the installation. 3. Connect the amplifiers and the Model P1 processor to the mains and flip the switch on the back of each product to turn it on.
  • Page 16 (http://192.168.1.222/setup.html). To enter the main user menu website, enter only the IP-address. NOTE: If there is more than one Model P1 in the setup, the new Model P1 must be assigned to the existing network. For more information, refer to Network Setup on page 30.
  • Page 17 DTS Setup Advanced Audio Setup Voicing Setup • Zone Setup Power Fixed Volume Video Output Edit Zone Sources • System Setup Video Setup Serial Setup Network Setup Trigger Input Setup Trigger Output Setup P1 Remote Control Setup  Add Remote...
  • Page 18  Remove Remote  Assign Remote  Set Channel • General Setup OSD Feedback 2d OSD Position • Device Management Backup And Restore  New Backup  Restore Backup  Delete Backup Read Roomperfect Data Software Info Software Update Factory Defaults...
  • Page 19 The Speaker Configuration menu provides information about the current speaker channel configuration, allowing you to select a configuration that is either stored on the Model P1, on a laptop, or on a connected memory stick. Upload the desired configuration to the Model P1 and verify the setup.
  • Page 20 OSD interface. In addition, the Web interface allows you to select a setup stored on the Model P1, on the Installer laptop or on a memory stick connected to the laptop, while the OSD interface allows for setup uploads only from the Model...
  • Page 21 Source Setup In the Source Setup menu, you register the individual sources connected to the Model P1 by the audio and/or video input sockets they use. Add new sources, edit existing sources, arrange them in a prioritized list, or delete them when they are no longer part of the system. This procedure must be followed for all connected sources to facilitate access.
  • Page 22 In day-to-day use, the user switches on a source and then presses the AUDIO button on the P1 remote control repeatedly to browse through the available audio modes – types of post processing - that the installer has selected for the source.
  • Page 23 Audio Mode Setup Menu Options Use Audio Modes... Options are Yes and No. If you select Yes, you can then define the Audio Modes from which the user should be able to choose. If you select No, the user can choose between all available post-processing types at all times.
  • Page 24 Model P1. Options are On, Off and Silent. Mch AD LFE Gain… This setting only applies for sources connected to the Model P1 via the multichannel analogue audio input sockets. This setting allows for adjustment of the gain in Low Frequency Effect (LFE) channel.
  • Page 25 Post Processing Options Dolby Pro Logic II Movie Dolby Pro Logic II Music ® ® Dolby Pro Logic II technology processes a stereo audio into 5.1-channel movie surround sound. Music and Movie modes cater to their namesakes’ material. Movie is more concentrated in the center channel, as opposed to Music, which provides a more spacious experience than in dialogue-oriented movie playback.
  • Page 26 The Zone Setup menu allows you to configure the system in such a fashion that connected systems in other rooms – or zones - can be controlled from the system in the main listening room, and that audio and video sources connected to the Model P1 can be experienced in these zones.
  • Page 27 Any source connected via the component video input sockets on the Model P1 can be defined for zone room viewing. Both audio and video are locked to each other and cannot be experienced independently, as described in the following paragraph. Zone source setup is done in the Edit sub-menu described below.
  • Page 28 System Setup Video Setup The Video Setup menu allows you to register the video system settings for the Model P1 video inputs and outputs, which in turn dictates which video formats can be shown on the screen when these inputs and outputs are activated. The menu contains: Analog out …...
  • Page 29 Serial Setup The Serial Setup menu allows you to change the system settings in relation to a Home Automation system. The menu contains: Baudrate … Options are 9600, 19200, 38400, 57600 and 115200. HW Handshake ... Options are Yes and No. Feedback level...
  • Page 30 Automatic (DHCP), you must have a network connection with access to a DHCP server. You must also switch off and restart the Model P1 for this setting to take effect. If you set Mode to Disabled, the network becomes inaccessible.
  • Page 31 Zone2 Pwr level … Zone 2 is on as long as the trigger signal is present. Trigger Output Setup The Trigger Output Setup menu allows you to set up the system so that the Model P1 can control Other devices in the system. The Trigger Output Setup menu contains the following: Trigger Output …...
  • Page 32 Some devices require extra time, such as home automation systems when curtains and lighting are being controlled. Select a value between 0 ms and two minutes. Action … Indicates how the trigger signals behave in different situations. Options are: No Action … Takes no action. Source …...
  • Page 33 P1 Remote Control Setup The Remote Control Setup menu allows you to register remote Controls for use with the system. This allows you to have remote controls dedicated to particular rooms. You can also remove remote controls from the system. Pairing a remote control for use with the system is done by selecting Add...
  • Page 34 General Setup This menu specifies the level of On-Screen-Display (OSD) feedback and the screen position of the 2D OSD. The 3D OSD is not adjustable. Options are: OSD Feedback: All … On-screen feedback for all changes in operational status. User … On-screen feedback on all user actions. Volume …...
  • Page 35 Web interface. Software Info … Shows reference information about the current software in the Model P1. Software Update … Upload software updates to the Model P1 from a FAT 32 formatted connected ™...

  • Page 36: Troubleshooting

    Web interface to retry. For complete information on RoomPerfect installation and use, see RoomPerfect Installation Manual. Unable to Upgrade to Latest Software Release The Model P1 software must not be older than release RC19 to upgrade. If the Model P1 has older software, please contact Steinway Lyngdorf. 3D Compatibility not Detected If the Model P1 isn´t fully booted a Blu-ray player will not be able to detect its 3D compatibility.
  • Page 37 Fault – Low signal This error message is displayed when the measurement has lasted more than 5 minutes for the low- frequency signal or more than 2 minutes for the high-frequency signal. This happens most often when using a low level measuring signal compared to the background noise in the listening environment, which results in prolonged measuring times.

  • Page 38: Network Setup

    Connecting to Model P1 with a Network Cable In situations where the Installer’s Kit is not available for setting up the Model P1 as described on page 4, it is still possible to get access to the product via the web interface. This is done with a direct cable connection between the Model P1 and a computer, or a connection via a hub or switch.
  • Page 39 Obtain DNS server address automatically selected by default. Click Use the following IP address and enter the following: IP address: 192.168.1.2 subnet mask: 255.255.255.0 default gateway: 192.168.1.1 Click OK to close the configuration windows, and you should now be able to access the Model P1 via your Internet browser.
  • Page 40 Click Use the following IP address and enter the following: IP address: 192.168.1.2 subnet mask: 255.255.255.0 default gateway: 192.168.1.1 Click OK to close the configuration windows, and you should now be able to access the Model P1 via your Internet browser.
  • Page 41 If there is more than one Model P1 on the same network, it is important that all P1 units have unique IP-addresses (note that the subnet mask and gateway can be the same). The easiest way to ensure this is to have a DHCP server in the local network and select DHCP mode in the Network Setup menu.

  • Page 42: Power Supply Specifications

    POWER SUPPLY SPECIFICATIONS MODEL P1 Power supply type SMPS (manual voltage selection) Power input voltage 100-120V AC/220-240V AC Power input frequency 50-60Hz Over-temperature protection Heat output at standby Power consumption per at standby ~ 8 mA for 120 V amplifier...

  • Page 43: Trademarks

    TRADEMARKS DTS is a registered trademark & the DTS logos and Symbol are trademarks of DTS, Inc. Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS is a registered trademark and the DTS logos, Symbol, DTS-HD Master Audio are trademarks of DTS, Inc.

  • Page 44: Service Information

    SERVICE INFORMATION In order to obtain warranty service you must contact your original dealer or the Steinway Lyngdorf distributor of the region or country where you are located. If you have trouble locating an authorized representative, please contact the Steinway Lyngdorf Customer Service Department using the contact information at www.steinwaylyngdorf.com, or you may email service@steinwaylyngdorf.com.
