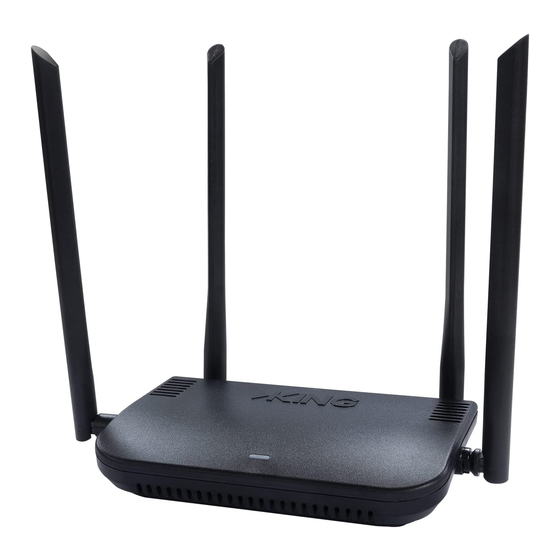

Wi-Fi Extender KWM2000
(included with KS1000)
The KING WiFiMax creates your own private and secure Wi-Fi
network, just like you have in your home. When in range of an
available network, simply configure your WiFiMax to connect to that
network, and it will extend the internet access from that network to
your own private Wi-Fi network.
Omnidirectional Wi-Fi Antenna KS1000
(not included with KWM2000)
The KING Swift is an omnidirectional Wi-Fi antenna
that increases the range and performance of your
KING WiFiMax router and range extender. This
2.4GHz Wi-Fi antenna mounts to your roof, connects
to your KING WiFiMax via a single cable, and allows
your KING WiFiMax to connect to networks from
even farther away and still utilize its 5GHz network for
fastest speeds.
CONTENTS ................................................................................................. 2
CONNECTIONS .......................................................................................... 3
FIRST-TIME USE ..................................................................................... 4-7
STANDARD OPERATION ..................................................................... 8-11
INSTALLATION ................................................................................... 12-13
TROUBLESHOOTING .............................................................................. 14
SPECIFICATIONS .................................................................................... 15
LIMITED WARRANTY ......................................................................... 16-17
WIRELESS REGULATORY INFORMATION ....................................... 18-19
SWIFT
CONTENTS
Page 1
Advertisement
Table of Contents
Related Manuals for KING WiFiMax KWM2000
Summary of Contents for KING WiFiMax KWM2000
-
Page 1: Table Of Contents
Wi-Fi Extender KWM2000 (included with KS1000) The KING WiFiMax creates your own private and secure Wi-Fi network, just like you have in your home. When in range of an available network, simply configure your WiFiMax to connect to that network, and it will extend the internet access from that network to your own private Wi-Fi network. -
Page 2: Contents
KING WiFiMax Manual Power Supply NOTE: No tools are required to set up and use the KING WiFiMax (unless wall mounting the unit). There are key hole slots on the back to mount the unit to a wall. The user must determine where and how to best mount the unit to a wall (inside use only). -
Page 3: Connections
CONNECTIONS Place your KING WiFiMax on a stable surface (or wall mount). Make connections as shown. (Blue lights on KING WiFiMax will turn on when power is connected.) Attach included dipole antenna or cable from KING Swift to open port. -
Page 4: First-Time Use
NOTE: If you have already completed this first-time use section, go to page 8. When using a smart phone or tablet: to maintain the best connection to your KING WiFiMax, it is suggested that the smart phone or tablet’s cellular network be turned off while completing the first-time use section. - Page 5 2. Open your device’s web browser. Type exactly as written. http://mykingwifi.com Go to: Tap “WiFi Settings” in the left-hand column. Internet Status English Exit 2.4 GHz: King_XXXXXX Internet Status 5 GHz: King_XXXXXX_5G Internet Settings WiFi Settings Parental Control Online: 1 Repeating failed.
- Page 6 Add “_5G” after your 5GHz network name to differentiate it from your 2.4GHz network name. Enter a password. KING highly recommends password protecting your name. Choose WPA/WPA2-PSK under “Encryption Mode” to enable password protection. Passwords can be the same for both networks if you wish, and must be at least 8 characters.
- Page 7 2.4GHZ Write your network name here: Write your password here: 5GHZ Write your network name here: Write your password here: 5. When you have entered names and passwords for both networks, tap “Save.” WiFi Settings English Exit WiFi Name & Password Internet Status Internet Settings WPA/WPA2-PSK...
-
Page 8: Standard Operation
STANDARD OPERATION When using a smart phone Back to Settings or tablet: to maintain the best connection to your KING WiFiMax, it is suggested that the smart phone or WiFi tablet’s cellular network be turned off during standard operation. Choose a Network... - Page 9 3. Tap “Wireless Repeating.” WiFi Settings English Exit Internet Status Internet Settings WiFi Settings WiFi Name & Password Wireless Repeating Channel & Bandwidth Transmit Power Enable Enable Channel/Bandwidth 2.4 GHz High/5 GHz High Parental Control Advanced Settings Beamforming+ AP Mode Anti-interference Enable Disable...
- Page 10 The router is scanning for networks. WiFi Settings English Exit Wireless Repeating Internet Status Internet Settings Wireless Repeating: WiFi Settings WiFi Name & Password Wireless Repeating Channel & Bandwidth Transmit Power Enable Enable Channel/Bandwidth 2.4 GHz High/5 GHz High Repeating Mode: WISP Client+AP Parental Control...
- Page 11 KC1130 KC1113 Your KING WiFiMax is now extending your network! If you turned off your cellular network during standard operation, it is now safe to turn it back on. Page 11...
-
Page 12: Installation
• When determining locations, make sure the long cable will reach the KING WiFiMax when attached to the KING Swift cable. (KING Swift cable may go directly to prewire enclosure - see opposite page). • Do not locate the KING WiFiMax or KING Swift in a slide-out. - Page 13 IMPORTANT! The installer is responsible for determining and supplying the most appropriate fasteners to secure the bracket to the roof. All holes, fastener heads, and the entire perimeter of the bracket must be completely sealed and weatherproofed with roof-compatible sealant. If there is a prewire enclosure on the roof, you will find a preinstalled wall plate in the vehicle.
-
Page 14: Troubleshooting
I don’t see the Upstream WiFi name I want to extend in my list of networks. If a network is very far away or very weak, the KING WiFiMax may not be able to see it, or may not offer it as an option. Try scanning again for networks by clicking on the blue circular arrows. -
Page 15: Specifications
SPECIFICATIONS KING WiFiMax Power: Included 12v power supply, requiring 110V AC plug-in Wireless standards: IEEE802.11a/b/g/n/ac Supported Frequencies: 2.4GHz and 5.8GHz (dual-band) Security: WPA/WPA2-PSK Storage Environment: Temperature -40ºF to 158ºF KING Swift Radio Frequency Band: 2.4GHz Wireless Standards: IEEE802.11a/b/g/n Antenna: 3dBi roof-mounted omnidirectional antenna Height: 9.5”... -
Page 16: Limited Warranty
30 days after date of manufacture. If it is determined that the unit needs to be returned to KING, customer must return COMPLETE product, freight prepaid, to: KING, 11200 Hampshire Avenue South, Bloomington, MN 55438-2453. - Page 17 • The product has been used with an accessory other than a KING accessory designed for the product. • Repairs have been made or attempted by others that are not certified by KING to do such repairs. • Repairs are required because of normal wear and tear.
-
Page 18: Wireless Regulatory Information
WIRELESS REGULATORY INFORMATION FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. - Page 19 Avis d’Innovation, Sciences et Développement économique Canada CAN ICES-3 (B)/NMB-3(B) L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) L’appareil ne doit pas produire de brouillage;...
- Page 20 Simply better, by design. ™ 11200 Hampshire Avenue South, Bloomington, MN 55438 PH 952.922.6889 || FAX 952.922.8424 || kingconnect.com ©2021 KING 23854 Rev 01 All trademarks are the sole property of their respective owners.
