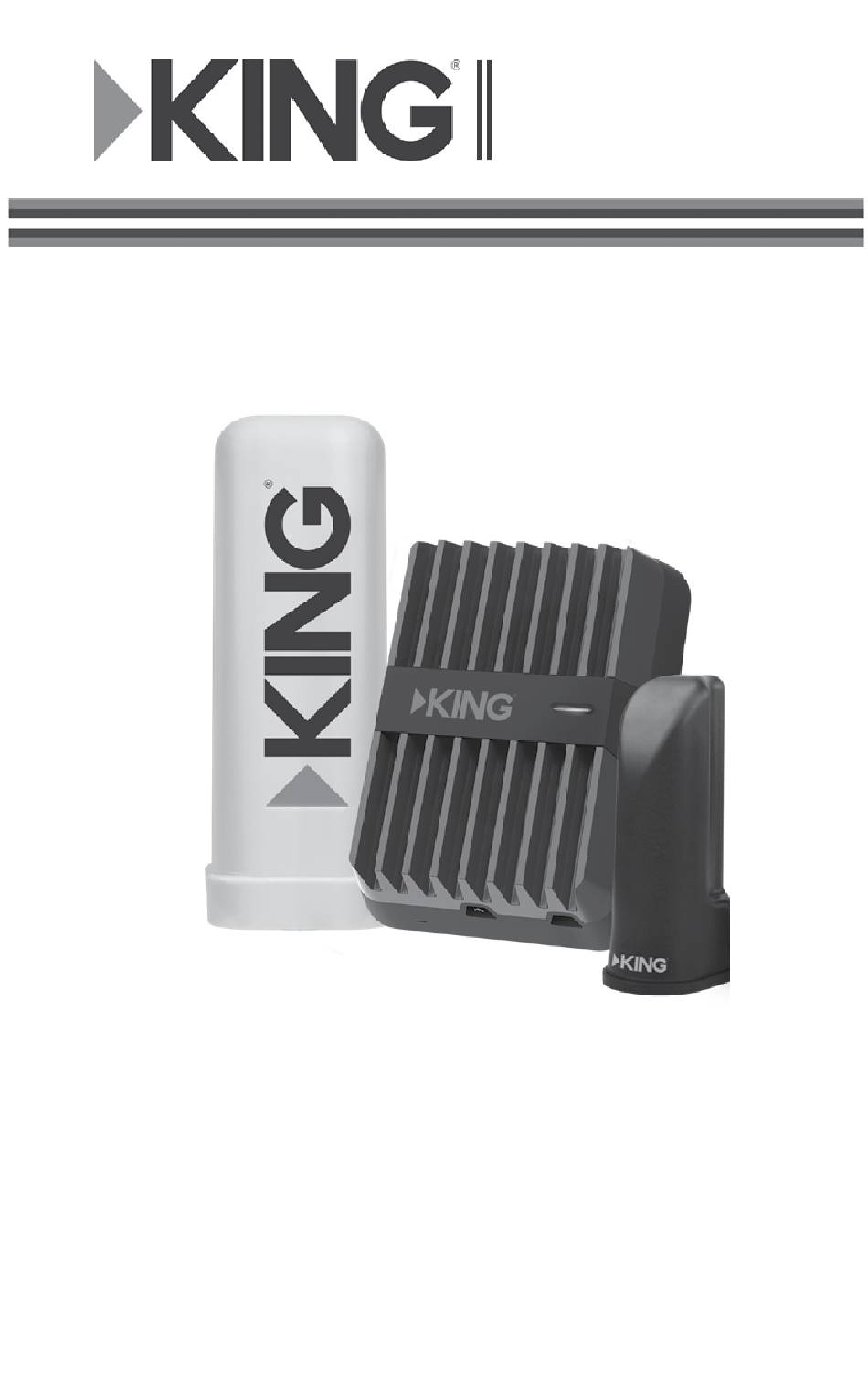

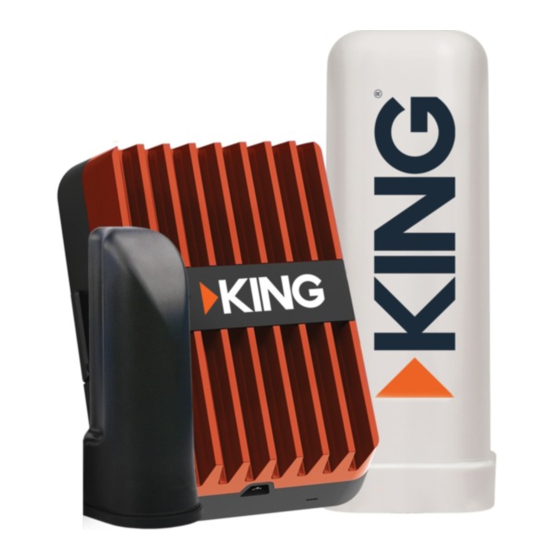

- Page 1 EXTEND KX2000 CELLULAR SIGNAL BOOSTER User Manual...
-
Page 2: Table Of Contents
BEFORE YOU START Read through this manual before installing or operating the KING Extend Pro. If you have any questions, call KING Customer Service at (952) 345-8147. TABLE OF CONTENTS PACKAGE CONTENTS ................2 OVERVIEW ....................3 IMPORTANT POINTS ................. 3 COMPONENT LOCATIONS ............... -
Page 3: Overview
OVERVIEW The KING Extend Pro is a cellular signal booster. It requires no additional activation or service. You simply install it and connect power, register it with your provider and it is ready to use. For more information on registering your booster with your provider, see: Sprint &... -
Page 4: Component Locations
COMPONENT LOCATIONS We recommend you do a “soft install” first by placing all components in their chosen locations, completing the setup instructions, and verifying the system works as desired. (Route the cable through an open door or window for the soft install.) It is up to the installer to determine the best component locations. The outside antenna must be completely above the roof line. -
Page 5: Outside Antenna Mounting Options
OUTSIDE ANTENNA MOUNTING OPTIONS Page 5... -
Page 6: Installation
INSTALLATION If your vehicle has a pre-wire enclosure on the roof, you can use the included pre-wire kit for installation (see instructions in kit). 1. Fasten the outside antenna to the mounting bracket with the supplied screws and washers (see page 5). 2. - Page 7 4. Fasten bracket to roof. Make sure fastener holes and fastener heads are properly sealed. 5. Route the cable to where it will enter the vehicle. Make sure to avoid any cabling, pipes, etc. that may be damaged by drilling in step 6. 6.
-
Page 8: Signal Booster Light
SIGNAL BOOSTER LIGHT After making all connections, the signal booster will automatically power on and the light will be green. Signal Booster ® Light & O KC1295 SOLID GREEN This indicates your booster is functioning properly and there are no issues with installation. -
Page 9: Troubleshooting
“power on”, a solid blinking red light appears, repeat steps 1 through 3. Increase the separation distance until the condition is corrected and/or desired coverage area is achieved. Increasing vertical separation between antennas typically improves isolation better than increasing horizontal separation. Need help? KING Customer Service: (952) 345-8147 Page 9... -
Page 10: Safety Guidelines
SAFETY GUIDELINES Use only the power supply provided with this product. Use of any other power supply may damage your equipment. All inside antennas must be at least 18 inches from all active users. Connecting the signal booster directly to the cell phone with use of an adapter will damage the cell phone. -
Page 11: Specifications
SPECIFICATIONS Model 470061 PWO460061 Connectors SMB-Jack Antenna Impedance 50 Ohms Frequency 698-716 MHz, 728-756 MHz, 777-787 MHz, 824-894 MHz, 1850-1995 MHz, 1710-1755/2110-2155 MHz 700 MHz 700 MHz 800 MHz 1700 MHz 1900 MHz Power output for single cell Band 12/17 Band 13 Band 5 Band 4... -
Page 12: Warranty
KING Customer Support at (952) 345-8147. In no event shall KING or Wilson be liable for any indirect, incidental, or consequential damages from the sale or use of the product. This disclaimer applies both during and after the term of this warranty.
