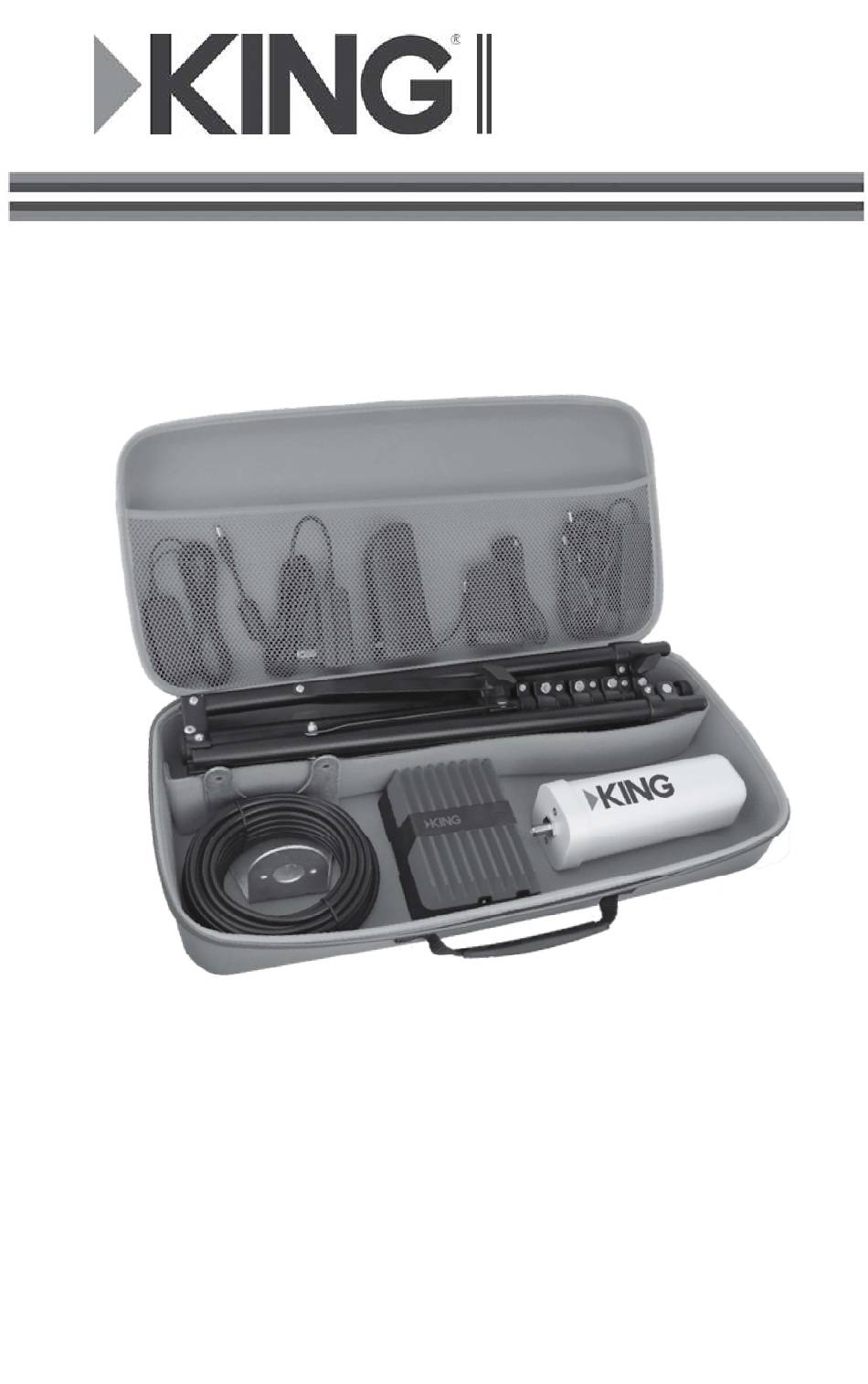

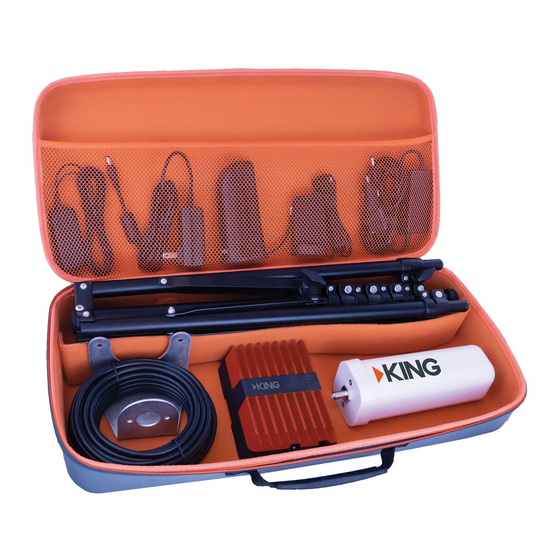

- Page 1 EXTEND KX3000 MULTI-USE PORTABLE CELLULAR SIGNAL BOOSTER User Manual...
-
Page 2: Table Of Contents
BEFORE YOU START Read through this manual before installing or operating the KING Extend Go. If you have any questions, call KING Customer Service at (952) 345-8147. TABLE OF CONTENTS PACKAGE CONTENTS ................2 OVERVIEW ....................3 VEHICLE ANTENNA SET 1 ..............4-5 PORTABLE/MOUNTABLE ANTENNA SET 2 ......... -
Page 3: Overview
OVERVIEW The KING Extend Go is a cellular signal booster. It requires no additional activation or service plan. You simply set it up or install it as desired, connect power, and register it with your provider. It’s now ready to use! For more information on registering your booster with your provider, see: Sprint &... -
Page 4: Vehicle Antenna Set 1
VEHICLE ANTENNA SET 1 Antennas connected to a booster create spheres of signal. When these spheres overlap, interference may occur and cause the booster to scale down its power or shut down to prevent damage. MAXIMIZE HORIZONTAL AND VERTICAL ANTENNA SEPARATION TO MINIMIZE SIGNAL OVERLAP. - Page 5 MOUNT OUTSIDE ANTENNA 1. Clean the surface where you will place the antenna. 2. Place antenna. The magnetic base will hold the antenna in place. For aluminum roofs, use the included adhesive disk to secure the antenna in place. MOUNT INSIDE ANTENNA attach to the side of the antenna labeled “MOUNTING SIDE.”...
-
Page 6: Portable/Mountable Antenna Set 2
PORTABLE / MOUNTABLE ANTENNA SET 2 Antennas connected to a booster create spheres of signal. When these spheres overlap, interference may occur and cause the booster to scale down its power or shut down to prevent damage. MAXIMIZE HORIZONTAL AND VERTICAL ANTENNA SEPARATION TO MINIMIZE SIGNAL OVERLAP. - Page 7 OUTSIDE ANTENNA MOUNTING OPTIONS Page 7...
- Page 8 INSTALLATION It is up to the installer to determine the best component locations and fasteners. 1. Fasten the outside antenna to the mounting bracket with the supplied 2. Connect the separate cable to the antenna (LARGE CONNECTOR 3. Apply roof-compatible sealant around the areas where the bracket fasteners will penetrate the roof.
- Page 9 5. Route the cable to where it will enter the vehicle. Make sure to avoid any cabling, pipes, etc. that may be damaged by drilling. 6. Drill an appropriately sized hole and feed the cable into the vehicle. Fasten cable to roof every 12-18 inches. 8.
-
Page 10: Signal Booster Light
SIGNAL BOOSTER LIGHT After making all connections, the signal booster will automatically power on and the signal booster light will be green. If using the power adapter with antenna set 1, the power adapter light will be red. SOLID GREEN This indicates your booster is functioning properly and there are no issues with installation. -
Page 11: Troubleshooting
“power on”, a solid blinking red light appears, repeat steps 1 through 3. Increase the separation distance until the condition is corrected and/or desired coverage area is achieved. Increasing vertical separation between antennas typically improves isolation better than increasing horizontal separation. Need help? KING Customer Service: (952) 345-8147 Page 11... -
Page 12: Safety Guidelines
SAFETY GUIDELINES Use only the power supply and power adapter provided with this product. Use of any other power supply/adapters may damage your equipment. Connecting the signal booster directly to the cell phone with use of an adapter will damage the cell phone. RF Safety Warning: Any antenna used with this device must be located at least 8 inches from all persons. -
Page 13: Specifications
SPECIFICATIONS Each signal booster is individually tested and factory set to ensure FCC compliance. The signal booster cannot be adjusted without factory reprogramming or disabling the hardware. The signal booster will amplify, but not alter incoming and outgoing signals in order to increase coverage of authorized will reduce gain until a signal is detected. -
Page 14: Warranty
Replacement products may include refurbished Wilson In no event shall KING or Wilson be liable for any indirect, incidental, or consequential damages from the sale or use of the product. This disclaimer applies both during and after the term of this warranty. - Page 16 ™ Simply better, by design. For patents go to: weboost.com/us/patents. NOT AFFILIATED WITH WILSON ANTENNA All trademarks are the sole property of their respective owners. 23697 Rev A © 2020 KING...
