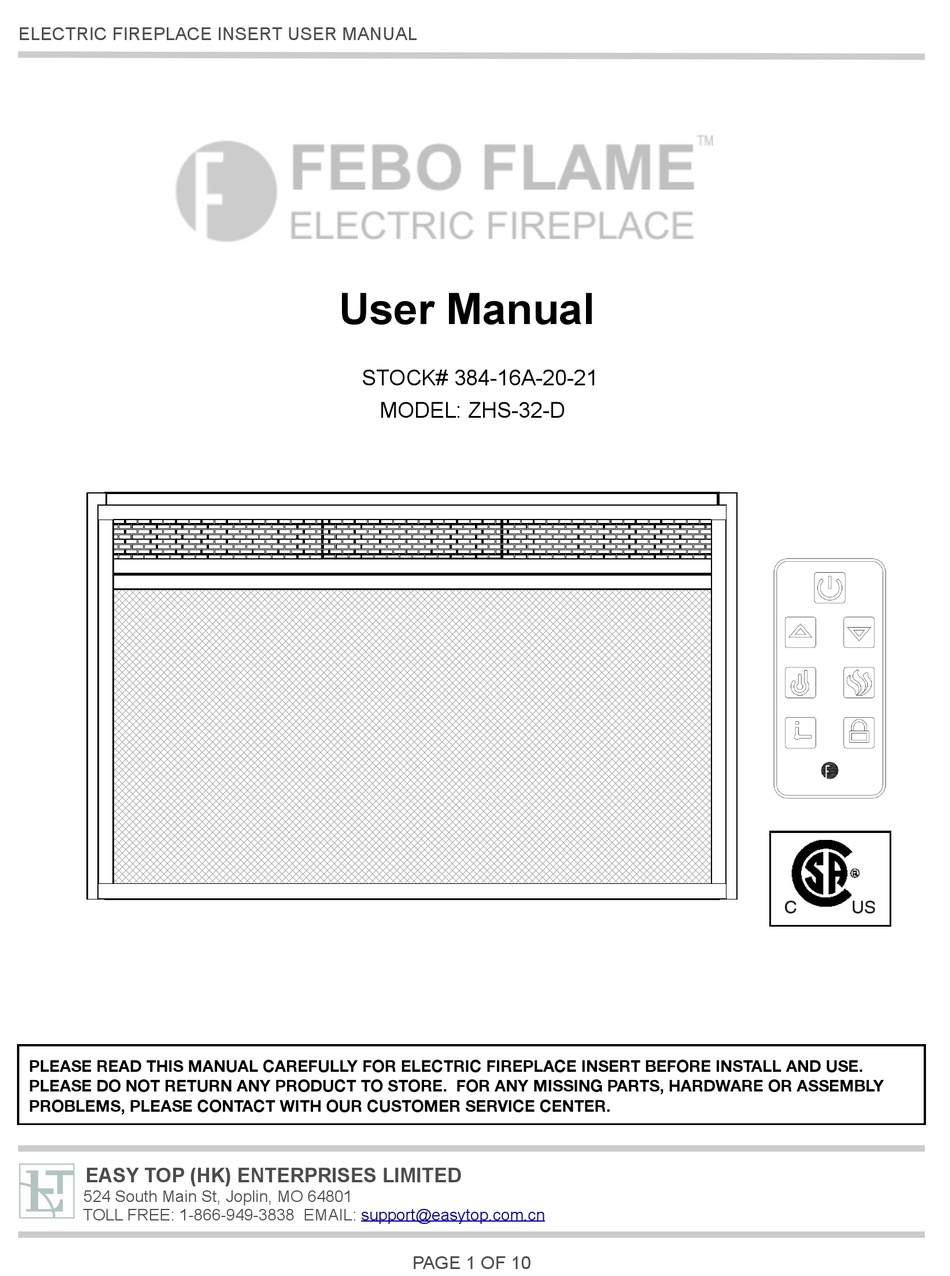

ELECTRIC FIREPLACE INSERT USER MANUAL
User Manual
STOCK# 384-16A-20-21
MODEL: ZHS-32-D
!
!
PLEASE READ THIS MANUAL CAREFULLY FOR ELECTRIC FIREPLACE INSERT BEFORE INSTALL AND USE.
PLEASE DO NOT RETURN ANY PRODUCT TO STORE. FOR ANY MISSING PARTS, HARDWARE OR ASSEMBLY
PROBLEMS, PLEASE CONTACT WITH OUR CUSTOMER SERVICE CENTER.
EASY TOP (HK) ENTERPRISES LIMITED
524 South Main St, Joplin, MO 64801
TOLL FREE: 1-866-949-3838 EMAIL:
support@easytop.com.cn
PAGE 1 OF 10
Advertisement
Related Manuals for Febo Flame ZHS-32-D
Summary of Contents for Febo Flame ZHS-32-D
- Page 1 ELECTRIC FIREPLACE INSERT USER MANUAL User Manual STOCK# 384-16A-20-21 MODEL: ZHS-32-D PLEASE READ THIS MANUAL CAREFULLY FOR ELECTRIC FIREPLACE INSERT BEFORE INSTALL AND USE. PLEASE DO NOT RETURN ANY PRODUCT TO STORE. FOR ANY MISSING PARTS, HARDWARE OR ASSEMBLY PROBLEMS, PLEASE CONTACT WITH OUR CUSTOMER SERVICE CENTER.
-
Page 2: Important Safety Instruction
IMPORTANT SAFETY INSTRUCTION WARNING: Any use of this appliance other than that recommended by the manufacturer in this owners manual may cause fire, burns, electric shock and/or other serious injuries or death. When using electrical appliance, basic precautions should always be followed to avoid the risk of fire, electric shock and injury to persons including the following: Read all instructions before using this appliance. - Page 3 OPERATING INSTRUCTIONS Read all instructions and warning prior to operating the appliance. Ensure that all controls are in the “OFF” status before plugging the appliance into a properly grounded electrical outlet. This appliance is for use on 120 Volts. The appliance has a 3-prong grounded plug (Figure 1.A). If your electrical outlet has only 2 slots (Figure 1.B), you will have to use an adapter (Figure 1.C) to convert from the 3-prong power cord to a 2-slot receptacle.
- Page 4 OPERATING INSTRUCTIONS Using the Control Panel: (Locate in Figure 3) G UP F DOWN D TIMER C HEATER B FLAME A POWER HILD LOCK Figure 3 Power(Figure 3.A): ✦ The POWER button supplies power to all the features of the fireplace. This button must be ON for any of the features to work properly.
- Page 5 OPERATING INSTRUCTIONS Using the Control Panel: (Locate in Figure 3) Child Lock (Figure 3.E): ✦ The CHILD LOCK button controls the locking feature of the fireplace, it can lock all control features on the Control Panel and Remote Control except the child lock on Remote Control, ✦ Press and hold the CHILD LOCK button 6 seconds, the locking features can be activated, The CHILD LOCK icon in Display Screen displays locked...
- Page 6 OPERATING INSTRUCTIONS This fireplace includes a Remote Control. See below for directions to use the Remote Control: A POWER G UP F DOWN C HEATER B FLAME E CHILD D TIMER LOCK Figure 5 Using the Control Panel: (Locate in Figure 5) The Remote control comes preassembled with a working battery and a insulation plastic film.
- Page 7 OPERATING INSTRUCTIONS Flame Control (Figure 4. B): ✦ The FLAME button controls the flame feature and the ember effect ON and OFF. ✦ When you press the FLAME button to be ON mode, the intensity of the flame will be dimming on from LOW to HIGH in 3 seconds.
-
Page 8: Maintenance
MAINTENANCE WARNING: Before attempting to perform any maintenance on this appliance, turn all controls to the “OFF” position and then unplug. Allow the appliance to be “OFF” for at least 10 minutes before performing any maintenance in order to allow all components to cool properly. Cleaning: Use a clean dry cloth to clean the fireplace. -
Page 9: Troubleshooting
TROUBLE SHOOTING WARNING: Turn off the appliance, unplug and let cool for at least 10 minutes before attempting to service. Only a qualified professional should attempt to service or repair the appliance. PROBLEM POSSIBLE CAUSE SOLUTION Simulated Flame Effect is dim or not Dimmer control button is set too Push flame button to increase present... -
Page 10: One-Year Limited Warranty
ONE YEAR LIMITED WARRANTY PLEASE DO NOT RETURN ANY PRODUCTS TO STORE, ANY MISSING PARTS OR HARDWARE OR ASSEMBLY PROBLEMS, PLEASE CONTACT WITH OUR CUSTOMER SERVICE CENTER AT 1866-949-3838. The following non-transferable limited warranty applies is extended only to the original consumer-purchaser of this EASY TOP (HK) Enterprises Limited (EASY TOP) product.
