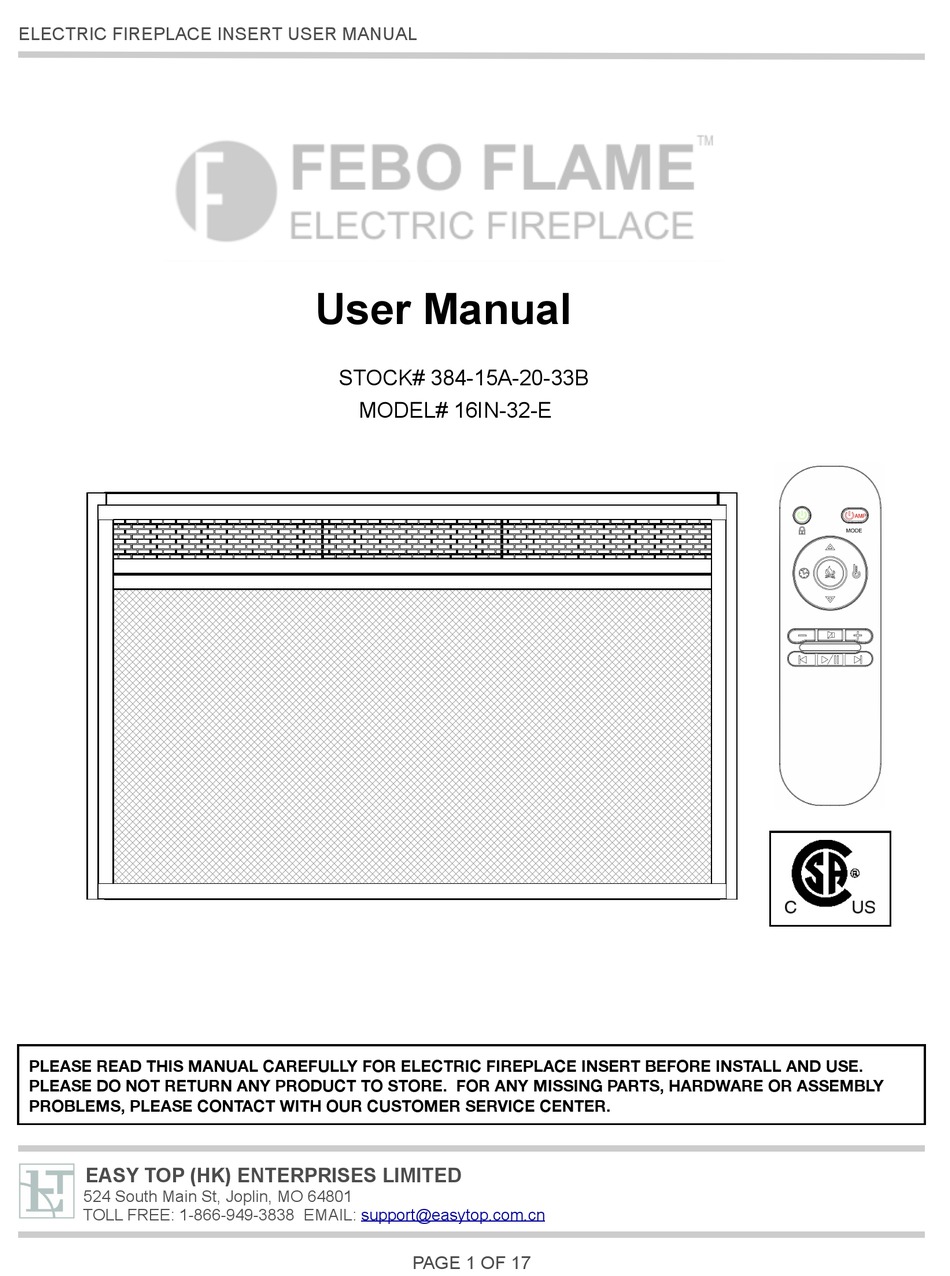

ELECTRIC FIREPLACE INSERT USER MANUAL
User Manual
STOCK# 384-15A-20-33B
MODEL# 16IN-32-E
!
!
PLEASE READ THIS MANUAL CAREFULLY FOR ELECTRIC FIREPLACE INSERT BEFORE INSTALL AND USE.
PLEASE DO NOT RETURN ANY PRODUCT TO STORE. FOR ANY MISSING PARTS, HARDWARE OR ASSEMBLY
PROBLEMS, PLEASE CONTACT WITH OUR CUSTOMER SERVICE CENTER.
EASY TOP (HK) ENTERPRISES LIMITED
524 South Main St, Joplin, MO 64801
TOLL FREE: 1-866-949-3838 EMAIL:
support@easytop.com.cn
PAGE 1 OF 17
Advertisement
Related Manuals for Febo Flame 16IN-32-E
Summary of Contents for Febo Flame 16IN-32-E
- Page 1 ELECTRIC FIREPLACE INSERT USER MANUAL User Manual STOCK# 384-15A-20-33B MODEL# 16IN-32-E PLEASE READ THIS MANUAL CAREFULLY FOR ELECTRIC FIREPLACE INSERT BEFORE INSTALL AND USE. PLEASE DO NOT RETURN ANY PRODUCT TO STORE. FOR ANY MISSING PARTS, HARDWARE OR ASSEMBLY PROBLEMS, PLEASE CONTACT WITH OUR CUSTOMER SERVICE CENTER.
-
Page 2: Important Safety Instruction
IMPORTANT SAFETY INSTRUCTION WARNING: Any use of this appliance other than that recommended by the manufacturer in this owners manual may cause fire, burns, electric shock and/or other serious injuries or death. When using electrical appliance, basic precautions should always be followed to avoid the risk of fire, electric shock and injury to persons including the following: 1. - Page 3 INSERT OPERATING INSTRUCTIONS Read all instructions and warning prior to operating the appliance. WiFi: ELECTRIC FIREPLACE Bluetooth: SOUND SYSTEM 1. Ensure that all controls are in the “OFF” status before plugging the appliance into a properly grounded electrical outlet. This appliance is for use on 120 Volts. The appliance has a 3-prong grounded plug.
- Page 4 INSERT OPERATING INSTRUCTIONS 3. If you press any button (except POWER) on the control panel or on the remote control, the display screen will flip down and display all the functions of the electric insert within 3 seconds. Without further operation, the display screen will automatically flip back up after 20 seconds.
- Page 5 INSERT OPERATING INSTRUCTIONS 5. Flame: Press to activate the flame function. This button controls the brightness of flame and ember effect. When the fireplace is first turned on, the flame will come in at the highest setting; press DOWN or UP button to adjust the brightness of flame.
- Page 6 INSERT OPERATING INSTRUCTIONS 7. Timer: Press once to activate. Press UP and DOWN button to adjust the timer. The choices are between 0.5H to 8H interval. Once the timer is on an the desired setting is reached, the system will shut down.
- Page 7 INSERT OPERATING INSTRUCTIONS Down: Use to turn down the heat, brightness of flame or timer. When FLAME / HEATER / TIMER is not activated, this button will not work. Figure 9 Up: Use to turn up the heat, brightness of flame or timer.
- Page 8 SOUND SYSTEM OPERATING INSTRUCTIONS 11. Connect the electric insert to the sound system amplifier module with connection cable #1. Figure 11 12. Connect the cable #2 and plug into the wall outlet. Figure 12 PAGE 8 OF 17...
- Page 9 SOUND SYSTEM OPERATING INSTRUCTIONS 13. Turn the sound system amplifier moduleʼs switch on. Figure 13 14. The sound system amplifier module has a RCA line-in for TV to connect to. The RCA cable is not included and this is an optional setup. Figure 14 PAGE 9 OF 17...
- Page 10 SOUND SYSTEM OPERATING INSTRUCTIONS 15. A 15 AMP circuit is required to operate this appliance. If the breaker trips when the appliance Sound System Control Panel is running, you may need to move the appliance to another location or unplug other appliances that are on the same circuit.
- Page 11 SOUND SYSTEM OPERATING INSTRUCTIONS Mode: Press this button for 3 seconds to switch between Bluetooth and RCA functions. Without any connection for 5 minutes, the sound system will automatically go into standby mode; press any button to re-activate. Figure 17 Previous track: Press this button to go back to previous track.
- Page 12 SOUND SYSTEM OPERATING INSTRUCTIONS Next track: Press this button to go to next track. Figure 19 Pause: Press this button to pause or restart music playing. Figure 20 PAGE 12 OF 17...
- Page 13 SOUND SYSTEM OPERATING INSTRUCTIONS Volume Up: Press to turn up the volume of the sound system. Figure 21 Volume Down: Press to turn down the volume of the sound system. Figure 22 PAGE 13 OF 17...
- Page 14 SOUND SYSTEM OPERATING INSTRUCTIONS Mute: Press this button to eliminate the volume. Figure 23 24. Remove the insulation plastic film from the battery before operation. Note: 1. Child Lock function on remote control - Different from the same button on the Control Panel, while operate with the Remote control, you just need to press the red “POWER”...
-
Page 15: Care And Maintenance
CARE AND MAINTENANCE Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 16: Troubleshooting
TROUBLE SHOOTING WARNING: Turn off the appliance, unplug and let cool for at least 10 minutes before attempting to service. Only a qualified professional should attempt to service or repair the appliance. PROBLEM POSSIBLE CAUSE SOLUTION Simulated Flame Effect is dim or not Dimmer control button is set too Push flame button to increase present... -
Page 17: One-Year Limited Warranty
ONE YEAR LIMITED WARRANTY PLEASE DO NOT RETURN ANY PRODUCTS TO STORE, ANY MISSING PARTS OR HARDWARE OR ASSEMBLY PROBLEMS, PLEASE CONTACT WITH OUR CUSTOMER SERVICE CENTER AT 1866-949-3838. The following non-transferable limited warranty applies is extended only to the original consumer-purchaser of this EASY TOP (HK) Enterprises Limited (EASY TOP) product.
