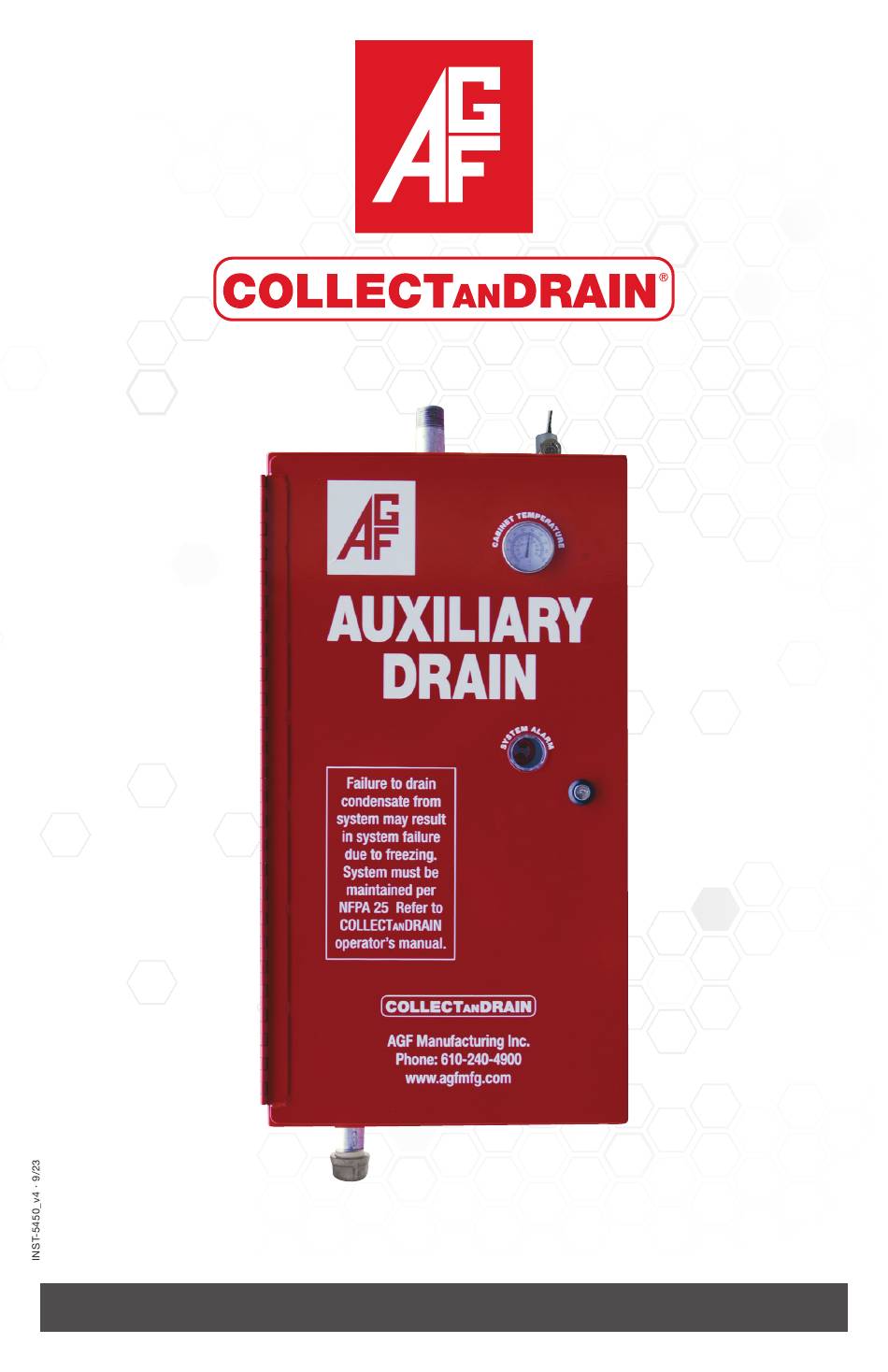

- Page 1 Model 5450 Owner’s Manual Owner’s Manual Owner’s Manual Owner’s Manual www.agfmfg.com...
-
Page 2: Table Of Contents
Inspect Y-Strainer Screen ............9-10 Verify Heater Operation (M5450A/B) ..........10 Verify Heater and HOT Monitor Operation (M5450H) ....10-11 Change Timer Setting (M5450H) ............11 Change Thermostat Setting ............11 AGF Manufacturing 100 Quaker Lane • Malvern, PA 19355 Phone: 610-240-4900 techsupport@agfmfg.com www.agfmfg.com... -

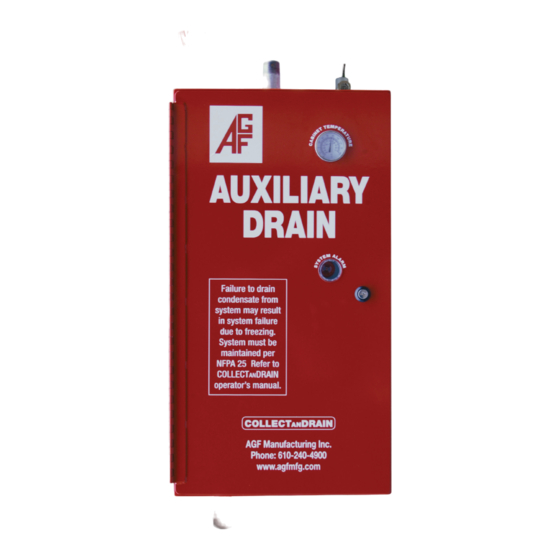

Page 3: Model 5450 Collect An Drain
The Model 5450 maintains a comfortable temperature above freezing while minimizing power consumption. CAUTION: The heater and its deflector bracket may be hot. Use care when accessing the main cabinet for any reason. www.agfmfg.com AGF Manufacturing • Phone: 610-240-4900 • techsupport@agfmfg.com •... - Page 4 Model 5450 Owner’s Manual The 150W heater is controlled by a user-set thermostat. The factory default setting of 60° F is recommended for temperatures down to 0° F. Consult AGF for thermostat settings if operating in an environment below 0° F. The thermostat controls the heater operation to within approximately ±10°...
-
Page 5: Installation Instructions Unpacking
Mounting Instructions. 1. Isolate the zone where the COLLECT DRAIN will be installed. 2. Relieve air pressure from the branch line. 3. Remove the existing auxiliary drain. www.agfmfg.com AGF Manufacturing • Phone: 610-240-4900 • techsupport@agfmfg.com •... -
Page 6: Mounting Instructions
3. To turn the unit on loosen the four (4) screws on the control panel cover and carefully, remove the cover. Then, push the internal circuit breaker up. The breaker indicator will change from green to red. www.agfmfg.com AGF Manufacturing • Phone: 610-240-4900 • techsupport@agfmfg.com •... -
Page 7: Verify Correct Operation
The default setting of 60° F (the dot between the 50 and 70) is recommended for outside temperatures down to 0° F. If operating below 0° F the set point should be increased. Consult AGF for set point guidelines. -
Page 8: Operating Instructions To Collect Condensate
Hold the pipe secure with a wrench when installing the pipe cap. 4. Open the upper valve (supply valve). 5. Close and lock the cabinet door using the supplied keys. COLLECT www.agfmfg.com AGF Manufacturing • Phone: 610-240-4900 • techsupport@agfmfg.com •... -
Page 9: To Drain Condensate
DO NOT open the supply valve until further instructed. 2. Remove the hex cap from the y-strainer body using a wrench. A second wrench may be needed to prevent the y-strainer from turning. www.agfmfg.com AGF Manufacturing • Phone: 610-240-4900 • techsupport@agfmfg.com •... -
Page 10: Verify Heater Operation (M5450A/B)
4. Turn the top dial to the 10s band. 5. Turn the thermostat set-point dial (red) clockwise until the heater turns on. www.agfmfg.com AGF Manufacturing • Phone: 610-240-4900 • techsupport@agfmfg.com •... -
Page 11: Change Timer Setting (M5450H)
The default setting of 60° F (the dot between 50 and 70) is adequate for outside temperatures down to 0° F. If operating below this temperature the set point should be increased. Consult AGF for set point guidelines. -
Page 12: Agf Manufacturing
AGF Manufacturing 100 Quaker Lane • Malvern, PA 19355 Phone: 610-240-4900 techsupport@agfmfg.com www.agfmfg.com...
