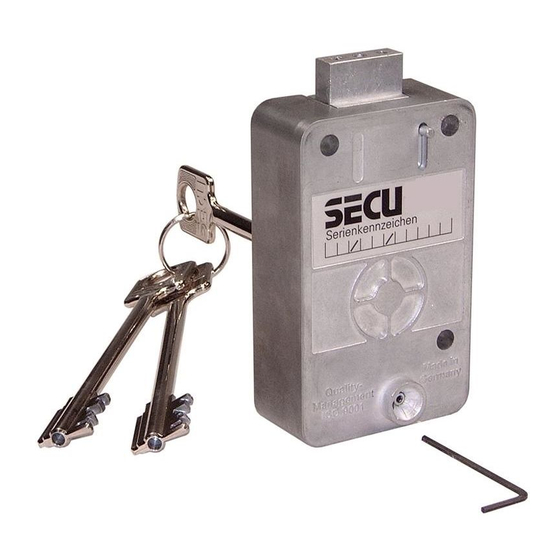

Mounting instructions for double-bit high security
locks
The lock is designed for use with a metal secure-storage unit and has to be mounted
using screws size 6, strength category 8.8, length 35 mm. The tightening torque applied
to tighten the bolts must not exceed 10 Nm. Apply a liquid screws tightening agent to
stop the screws becoming loose. The lock can be mounted either horizontally, with the
bolt pointing to the right or left, or vertically, with the bolt pointing up or down.

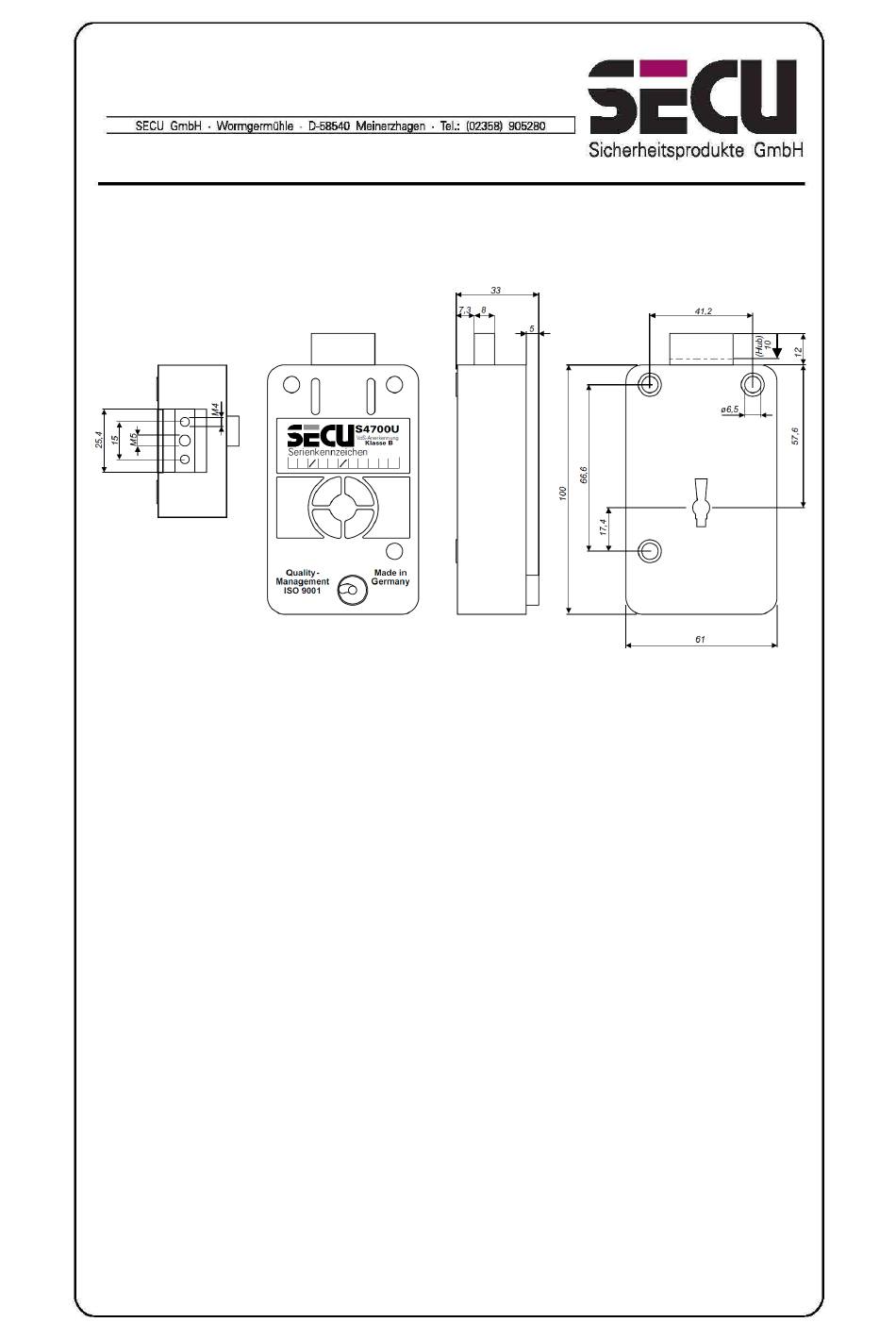

The illustration above shows the lock dimensions.
There are two possibilities to release or operate the bolt mechanism of the lock:
1. Bolted-on bolt work mechanism: the bolt work mechanism is screwed to the
front of the lock bolt using screws size M4 or M5
With this method, the bolt work is operated by means of the lock.
The bolt work mechanism is not screwed on: With this method, the lock only
2.
Allows the lock bolt to move freely. In other words, the bolt work is operated
separately.
