Summary of Contents for Secu SELO-BR

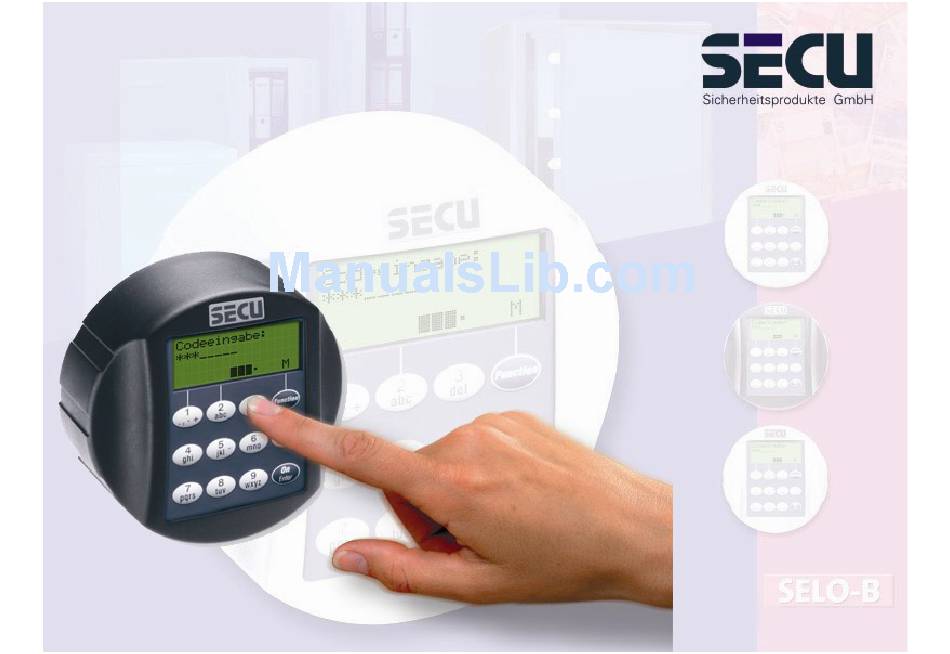

- Page 1 Electronic lock Made in Germany SELO-BR www.secu-gmbh.de Operating instructions for the additional functions: Weekly timer, holiday / vacation calendar, opening delay, administrator functions...
-
Page 2: Table Of Contents
Contents Changing the operating mode from “Standard” to “Backup”…….…… 3 Mode selection ………………………………………………………………..4 Timer functions ………………………………………………………….…….. 6 Weekly timer (access times) ..............8 Timer A+ timer B (individual access) ..........9 Example of programming for individual access ...... 10 Holiday / vacation calendar …………………………………………….. -
Page 3: Changing The Operating Mode From "Standard" To "Backup
Changing the operating mode from „Standard“ to „Backup“ The lock is of fully redundant design. This means that all electrical components vital to the proper functioning of the lock come in pairs and form a complete second or backup operating system. As the systems are of equal standard, each has to be made operational by the same procedure. -
Page 4: Mode Selection
Change from Professional Mode Lite Mode: 03.05.04 09:35 SECU Set to the Lite Mode, the lock is operated with one secret code of only 7 digits. professional The lock can only be set to opening without delay. It is possible to change the language of operation on the display. - Page 5 Mode selection Change from Lite Mode Professional Mode: With the lock set to Professional Mode, all lock functions are ready to be activated. SECU Press On/Enter key. Press Function key. lite - Using the t/u keys (keys 1 and 2), select:...
-
Page 6: Timer Functions
Timer functions Menu Timer functions.. < Menu: Timer functions Select sub-menu by means of the t/ukeys: 03.05.04 09:35 time entry... < • Time entry Enter and confirm hour Enter and confirm minute 03.05.04 09:35 • Date entry date entry... Enter and confirm day <... - Page 7 Timer functions Menu Timer functions.. Menu: Timer functions < Select sub-menu by means of the t/ukeys: 03.05.04 09:35 Holidays calendar < • Holiday calendar page 11 03.05.04 09:35 Opening Delay... < • Opening Delay page 18 03.05.04 09:35 Calibrating timer... <...
-
Page 8: Weekly Timer (Access Times)
Weekly timer 03.05.04 09:35 Access times.. Menu: Access times < Select sub-menu by means of the t/ukeys: Selection: Timer A • Timer A < page 9 Selection: Timer B < • Timer B page 9... -
Page 9: Timer A+ Timer B (Individual Access)
Weekly switch timer Menu: Timer A or timer B: (individual access) - Switch timer A and switch timer B operate independently of each other and No. 1 Days: MO-FR each administer a maximum of 8 time windows, which repeat weekly. ON : HM 08:00 OFF: HM 14:30 - Users can be allocated to timer A or to timer B or to neither of the... -
Page 10: Example Of Programming For Individual Access
Weekly switch timer • Example of the programming of timer A or timer Solicitor's office: Solicitor Not allocated to any timer, unlimited access (= Administrator) Staff: Allocated to timer A No. 3 Days: SA Time window 1: Mo – Fr, 8-16 hours ON : HM 08:00 Time window 2:... -
Page 11: Holiday / Vacation Calendar
Holiday calendar / vacation calendar Menu: Holiday calendar 03.05.04 09:35 Holiday calendar... < Select sub-menu by means of the t/ukeys: 03.05.04 09:35 One-time holidays < • One-time page 12 holidays 03.05.04 09:35 Perm. holidays • Permanent < page 15 holidays... -
Page 12: One-Time Holidays
Public holiday / vacation calendar Menu: One-time holidays 03.05.04 09:35 One-time holidays < Select sub-menu by means of the t/ukeys: Holiday: create < • Holiday: create page 13 Holiday.: display/delete < • Holiday : display / delete page 14... -
Page 13: Creating One-Time Holidays
Public holiday / vacation calendar Menu: Holiday: create - On the programmed public holidays / vacations, the lock remains closed No. 01 for visitors who are allocated to timer A or to timer B. This does not apply OFF : DMY 30:08:04 to any other visitor or to the administrator. -
Page 14: Displaying Or Deleting One-Time Public Holidays
Holiday / vacation calendar Menu: One-time holidays: display / delete No. 02 OFF : DMY 09:08:04 28:08:04 < - All entries can be viewed here and, if applicable, be deleted. - To do this, select the one-time holiday to be deleted by means of the t/u keys and then delete by pressing the ON key. -
Page 15: Permanent Holidays
Holiday / vacation calendar Menu: Permanent holidays 03.05.04 09:35 Perm. holidays < Select sub-menu by means of the t/ukeys: Holiday: create • Holiday: create page 16 < Holiday: display/delete • Holiday: display / delete page 17 <... -
Page 16: Creating Permanent Holidays
Public holiday / vacation calendar Menu: Permanent public holidays: create - On the programmed public holidays / vacations, the lock remains closed for visitors who are allocated to timer A or timer B. This does not apply to any other visitor or to the administrator. No. -
Page 17: Displaying Or Deleting Permanent Holidays
Public holiday / vacation calendar Menu: Permanent holidays: display / delete No. 02 OFF : DM 25:12 27:12 < - All entries can be viewed here and, if applicable, be deleted. - To do this, select the one-time holiday to be deleted by means of the t/u keys and then delete by pressing the ON key. -
Page 18: Opening Delay
Opening delay function Menu: Opening delay - The opening delay function prevents immediate opening, e.g. to protect Opening delay: against robberies. [12] min - The delay applies to all the users including the administrator; it can only < be created or modified by the administrator. - After the first code has been entered, the programmed delay is counted down;... -
Page 19: Calibrating Clock
Clock calibration Menu: Clock calibration correction factor: - 00.7 sec / Tag - If you require a particularly high timer precision, you can calibrate it. < - Example: measured deviation: 1 min (= 60 sec) in 90 days this results in a correction factor of 60 sec / 90 days = 0.7 seconds per day... -
Page 20: Change-Over Summer Time / Winter Time
Change-over summer time / winter time Menu: Summer time Summer time: CEST - The timers can automatically change over to summer time or to winter time. < - This function can be activated by means of the t/u keys: CEST: function is activated OFF: function is deactivated... -
Page 21: User Functions
User functions Menu Menu: User User.. < Select sub-menu by means of the t/ukeys: User: Create • Create < page 22 User: Modify < • Modify page 22 User: Display < • Display Select and confirm user User: Delete < •... -
Page 22: Create User/Edit User
Create user/edit user Menu: Create user/edit user - in the first line the user name can be entered. User 0001 - in the second line, the following access rights can be determined: rights: 1 timer: - 1 : access authorisation alone ------ 0 : access denied 1/2 : access only allowed together with a further person... -
Page 23: Administrator Functions
Administrator functions Menu Administrator... < Menu: Administrator Select sub-menu by means of the t/ukeys: Administrator Code length < • Code length Enter code length (7 or 8 digits) Confirm code length Note: - On first changing the code from 7 to 8 digits, the figure „zero“ is automatically added to any previously programmed codes. - After the code has been changed from 8 to 7 digits, use only the first 7 digits of any previously programmed code. - Page 24 Administrator functions Menu Administrator... < Menu: Administrator Select sub-menu by means of the t/ukeys: Administrator Reset timer func < • Reset timer functions page 26 Ident number: Administrator XXXX YYYY ZZZZ Ident number < < • Ident number Here the ident number of the lock can be requested.
-
Page 25: Code Modification By User Is Authorised
Code modification by user is authorised Menu: Code modification Code modification - Here the administrator defines whether the users may edit their < access code themselves: - Select by means of the keys: Yes: The users may edit their access code themselves. Only the administrator may edit the access code of the users. -
Page 26: Reset Timer Functions
Reset timer functions Menu: Reset timer functions Delete entries with ON-key! - By means of this function, the administrator can very quickly and easily < delete all the entries in the weekly timer, the public holiday calendar or the opening delay. - WARNING: All entries will be irrevocably deleted! - Please note: After the reset, all users who are allocated to a timer and therefore only have limited access will gain an unlimited access right! -
Page 27: Display Processes
Display processes Menu Process…... < Menu: Process Select sub-menu by means of the t/ukeys: Administrator 01.06.06 07:42 Code changed < • Reset timer functions Enter administrator code Select process The last 1000 processes can be displayed. -
Page 28: Display Lock Info
Display lock information Menu: Info SECU SELO-BR 1.0 Count:[00001744] < - The openings counter allows you to check the total number of times the lock has been opened... - Page 29 SECU Sicherheitsprodukte GmbH Wormgermuehle D – 58540 Meinerzhagen Germany www.secu-gmbh.de mail@secu-gmbh.de Irrtum und Änderungen vorbehalten Omissions and changes reserved Sous réserve de fautes d‘erreurs et de modifications BA SELO-BR VF 01/2006...
