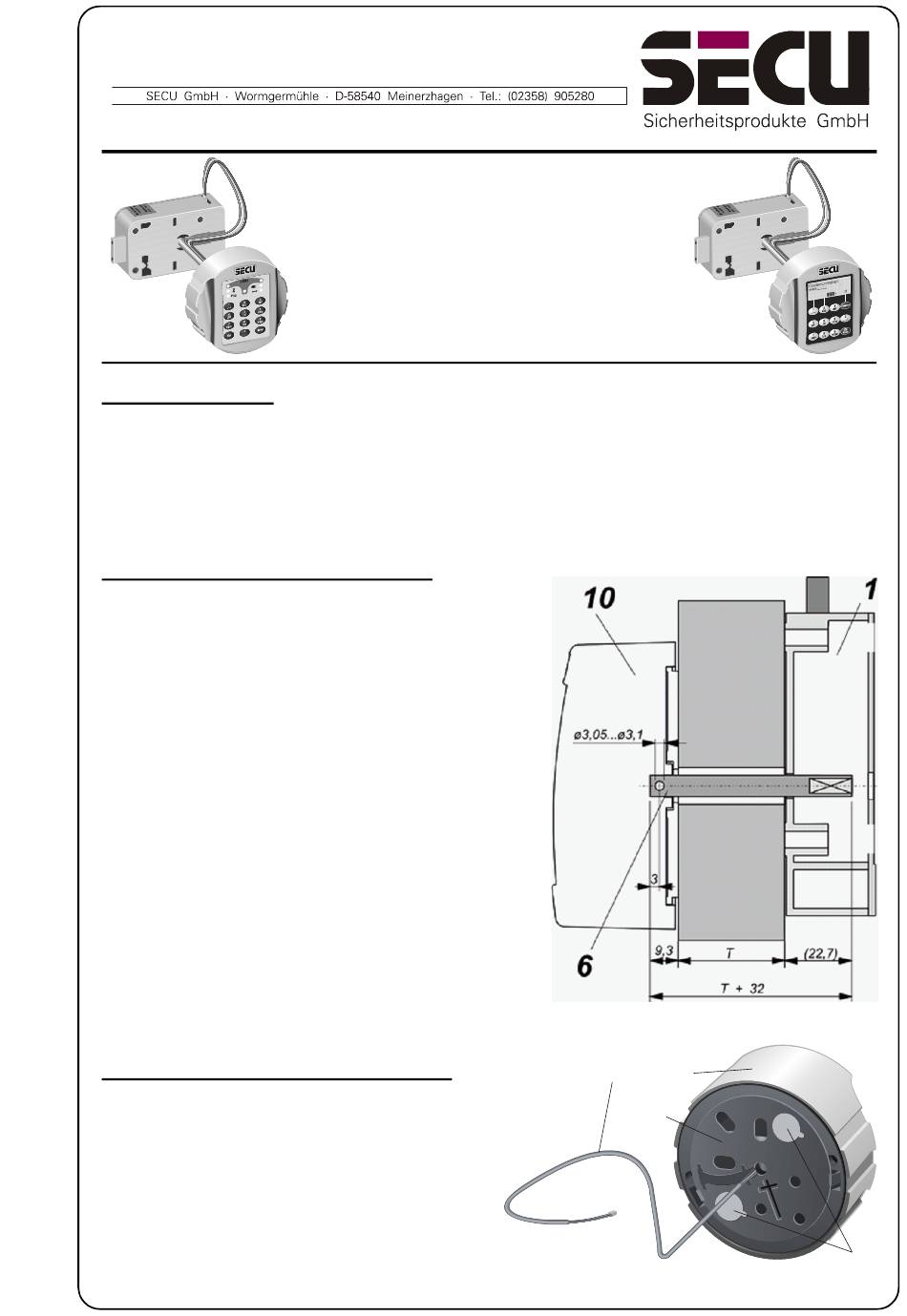

Mounting instructions
for electronic locks
SELO
Mounting sequence:
1. Adjusting the size of the lock spindle
2. Connecting lock spindle and input unit
3. Mounting the complete input unit on the outside of a safe door
4. Mounting the electromechanical lock module inside a safe door
5. Making the electrical connection between input unit and lock module electronics
1. Adjusting the size of the lock spindle
The purpose of lock spindle (6) is to mechanically connect data input
1
10
unit (10) and electromechanical lock module (1). If the exact length
of the lock spindle was not indicated in the purchase order, the
spindle has to be cut to the right length and a new pin hole drilled
before mounting.
Our "Tool for drilling and shortening SELO electronic lock spindles"
(Article no. 900 301) is designed to simplify these operations..
As an alternative, the cutting-to-size and drilling of the spindle can
ø3,05...ø3,1
also be executed according to the instructions in the diagram pro-
vided. Begin by measuring wall thickness T of the safe door; this is
the distance between the mounting surfaces of data input unit and
interior lock module, and add 32 mm. Shorten the lock spindle to this
total length from the rounded end. Next, drill a new hole for the pin,
diameter between 3.05 and 3.10 mm, at a 3 mm distance from the end
of the spindle, making sure that the hole axis is at a 90° angle to the
3
key areas of the lock spindle.
To make the following steps of the mounting procedure easier, debur
or lightly chamfer the pin hole. N.B.: Any distance in excess of the
9,3
T
(22,7)
recommended 3 mm will cause problems at a later stage of the
6
mounting procedure.
T + 32
2. Connecting lock spindle and input unit
13
10
Connect lock spindle (6) and data input unit (10) using the
11
locking pin (12) (ø3 mm) provided, and secure it with flat
securing piece (14). The diagram below shows the input unit
in "closed"-position; it is vertical and the keypad inscrip-
tions can be read normally. If the input unit is held in one
hand, the rear bottom plate (11) can be turned back and forth
180° between two limit stops.
15
-- page 1 --
Date: 11.16
Subject to technical modifications
Elektronikschloesser-Montageanleitung-Version SELO-11.16-englisch.pdf
