TOTO U.S.A., Inc.
1155 Southern Road Morrow, GA 30260
Phone : (770) 282-8686
Warranty Registration and Inquiry
For product warranty registration, TOTO U.S.A. Inc. recommends On-Line Warranty Registration. Please visit
our web site http://www.totousa.com. If you have questions regarding warranty policy or coverage, please
contact TOTO U.S.A. Inc.,
Customer Service Department, 1155 Southern Road, Morrow, GA 30260 (888) 295 - 8134 or (678) 466 - 1300
when calling from outside of U.S.A.
•
You are advised to record the following information to allow quick service.
Date of purchase :
Name of shop :
Date : year month day
Tel : (
)
WASHLET
SW3074T40
SW3074
SW3024
■ Thank you for your recent purchase of this product.
Please read the enclosed information to ensure the safe use of your product.
■ Be sure to read this Instruction Manual before using your product and keep it in a safe place
for future reference.
2021.7.28
D07A82
Instruction Manual
Advertisement
Table of Contents
Related Manuals for Toto SW3024
Summary of Contents for Toto SW3024
- Page 1 Phone : (770) 282-8686 WASHLET Warranty Registration and Inquiry For product warranty registration, TOTO U.S.A. Inc. recommends On-Line Warranty Registration. Please visit our web site http://www.totousa.com. If you have questions regarding warranty policy or coverage, please contact TOTO U.S.A. Inc., Customer Service Department, 1155 Southern Road, Morrow, GA 30260 (888) 295 - 8134 or (678) 466 - 1300 when calling from outside of U.S.A.
-
Page 2: Table Of Contents
......12 Parts Names Clean ......14 Preparation Product name (Model) WASHLET ....16 Basic Operations SW3074T40 Part No. SW3024 Mechanism of Auto Functions Functions SW3074 Ref. Page Sanitary Toilet (SW3074T40, SW3074) ..16 ● ● Rear washing Deodorizer, Auto wand CLEAN, Pre-mist ●... -
Page 3: Safety Precautions
Safety Precautions IMPORTANT SAFEGUARDS WARNING READ ALL INSTRUCTIONS BEFORE USING Do not use other water then allowed by the laws and ordinances of the Symbols and Meanings region of use. Only Use potable water. Do not use seawater or recycled water. WARNING May result in death or serious injury. - Page 4 Safety Precautions (Continued) WARNING CAUTION This is an electrical product. Do not install it anywhere water is likely to get on Do not use the product if the main unit is unstable. the product or anywhere with humidity high enough that water is likely to form ...
- Page 5 Safety Precautions (Continued) CAUTION DANGER To reduce the risk of electrocution: 1. Do not use while bathing. If a water leak should occur, always close the shutoff valve. 2. Do not place or store the product where it can fall or be pulled into a tub or sink. When the ambient temperature is likely to drop to 32 °F (0 °C) or lower, prevent damage to the pipes and hoses due to freezing.
-
Page 6: Operational Precautions
Safety Precautions Operational Precautions (Continued) ■ For prevention of malfunctions ■ For prevention of damage Grounding Instructions ●Wipe plastic areas such as the main unit with a <About the seat switch> soft cloth tightly wrung out with water. ●When you sit on the toilet seat, the seat switch This product should be grounded. - Page 7 Control panel Heated seat (Page 17) Water drain plug (Page 37) Descriptions in this manual are based on the illustrations of SW3074. *1 The shape and location vary depending on the type of toilet bowl and tank. *2 Except SW3024...
- Page 8 Preparation Using the Product for the First Time 1. Turn on the power 2. Open the shutoff valve Insert the power plug. Fully open the shutoff valve. The wand extends and then retracts. Check the "Power" LED illuminates. When the "Power" LED does not light, press for at least 3 seconds.
-
Page 9: Basic Operations
• "EWATER+" helps to minimize dirty surfaces, but does not make cleaning the washing functions (Rear washing, Front unnecessary. washing, etc.). (Page 16) *3 Except SW3024 • The eff ect of rinsing with "EWATER+" can vary depending on the frequency Auto wand CLEAN of toilet use and other conditions. - Page 10 Temperature Adjustment Toilet Seat, Warm Water, Drying Three diff erent temperature levels (High, Medium, Low) and "OFF" setting can be selected. ˂The drawing is SW3074˃ Toilet seat temperature button Displaying the temperature level of the pressed button (When you want to adjust the toilet seat temperature) When the seat temperature and the warm water When the seat temperature and the warm water Warm water temperature button...
-
Page 11: Energy Saver Features
Energy Saver Features Type "Auto energy saver" or "Timer energy saver" can be selected. To save energy, lower (or turn "OFF") the seat or warm water temperature. You want to save energy only You want the product to save You want to save the maximum Energy saver is on for a preset duration of time. - Page 12 Energy Saver Features How to Set Auto energy saver button Auto energy saver Timer energy saver ●Set the Energy saver at the time you want to start it. Example: To save energy from 1 am to 7 am (for 6 hours) When the time of the day reaches ˂The drawing is SW3074˃...
-
Page 13: Various Operations
Various Operations Setting List Applicable How to Set Available Settings Setting Types Settings Models Bold: Initial settings Ref. Page Auto wand CLEAN / OFF • Set whether or not to clean the wand automatically Page 26 • Set whether or not to spray mist in the bowl unit Pre-mist / OFF automatically... -
Page 14: Auto Functions
Various Operations Auto functions Cleaning Features Cleaning Features Set whether or not to clean the wand Set whether or not to spray mist in the bowl Set whether or not to deodorize automatically Set whether or not to power deodorize automatically unit automatically after sitting on the toilet seat... -
Page 15: Power Plug
Maintenance Power Plug Main Unit WARNING Power Plug Main Unit (Approximately once a month) (Approximately daily) Always unplug the power plug from the outlet before maintenance or inspection. (Failure to do so may cause electric shock or malfunction, resulting in a breakdown.) Soft cloth •... -
Page 16: Gap Between The Main Unit And Bowl Unit
Maintenance Gap between the Main Unit and Bowl Unit Gap between the Main Unit and Bowl Unit [SW3074T40] [SW3074, SW3024] Gap between the Main Unit and Bowl Unit Gap between the Main Unit and Bowl Unit (Approximately once a month) -
Page 17: Gap Between The Main Unit And The Toilet Lid
• The "Power" LED illuminates. Hinge • Do not pull, push or press the wand with excessive force. (May cause damage or Open and close the toilet lid malfunction.) to check the reinstallation. Press • The wand retracts. *1 Except SW3024... -
Page 18: Water Filter Drain Valve
Maintenance What to Do? Water Filter Drain Valve If the water does not fl ow due to a water service interruption Water Filter Drain Valve (Approximately once every 6 months) <If you think the water pressure has weakened> If the water does not fl ow due to a water service interruption Close the shutoff... -
Page 19: Freeze Damage Prevention
Tighten the water drain plug How to freeze damage prevention securely with a fl at-head (Page 36 Step screwdriver. (2) [Applicable to SW3074, SW3024 only] Press to extend the Close the shutoff valve. (Page 34) • Drain the water from the water supply hose. -
Page 20: Troubleshooting
● Water may sometimes come out from around the wand when it expands in Water comes out the warm water tank. unexpectedly from ● Is the "Wand CLEAN" LED on the main display fl ashing? the wand ➞"Auto Wand CLEAN" starts and the wand is being cleaned. *1 Except SW3024... - Page 21 ● If the "Wand CLEAN" LED does not illuminate, it is time to replace the component LED does not that generates "EWATER+". Consult the installer, seller, or TOTO customer ● Is the toilet seat temperature set to "OFF" or a low level? service.
-
Page 22: Limited Warranty
225 W f) Damage or loss resulting from electrical surges or lightning strikes or other acts which are not the fault of TOTO or which the product is not specified to tolerate, including failure to use the factory equipped cord and plug or use of a loose or faulty Safety device Temperature fuse, anti-idling fl...
Need help?
Do you have a question about the SW3024 and is the answer not in the manual?
Questions and answers

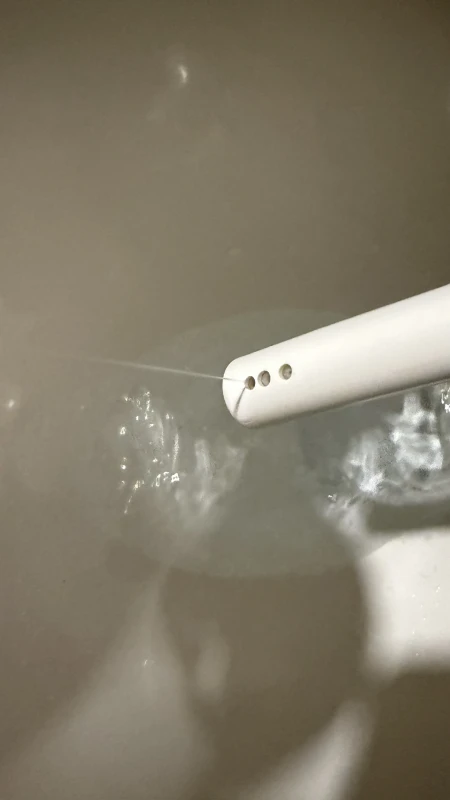

Lately The water spray coming out from the front wash is very thin, like a needle and it hurts, this problem is not happening from the rear wash.
A thin and painful front wash spray on a Toto SW3024 could be caused by the following:
1. Low Water Pressure – The unit requires a certain water pressure (29 PSI or 0.20 MPa) for proper operation. Lower pressure may result in a weak or inconsistent spray.
2. Sediments or Foreign Matter – Debris in the water system can clog the spray nozzles, reducing water flow and making the spray uncomfortable.
3. Quality of Water – Poor water quality in the region may affect the system’s performance.
4. Improper Installation – Incorrect installation may lead to restricted water flow, impacting the spray’s effectiveness.
Cleaning the nozzles and ensuring proper water pressure may help resolve the issue.
