NDS PLUS 25 User Manual

Hide thumbs Also See for PLUS 25:

Advertisement

Table of Contents

-

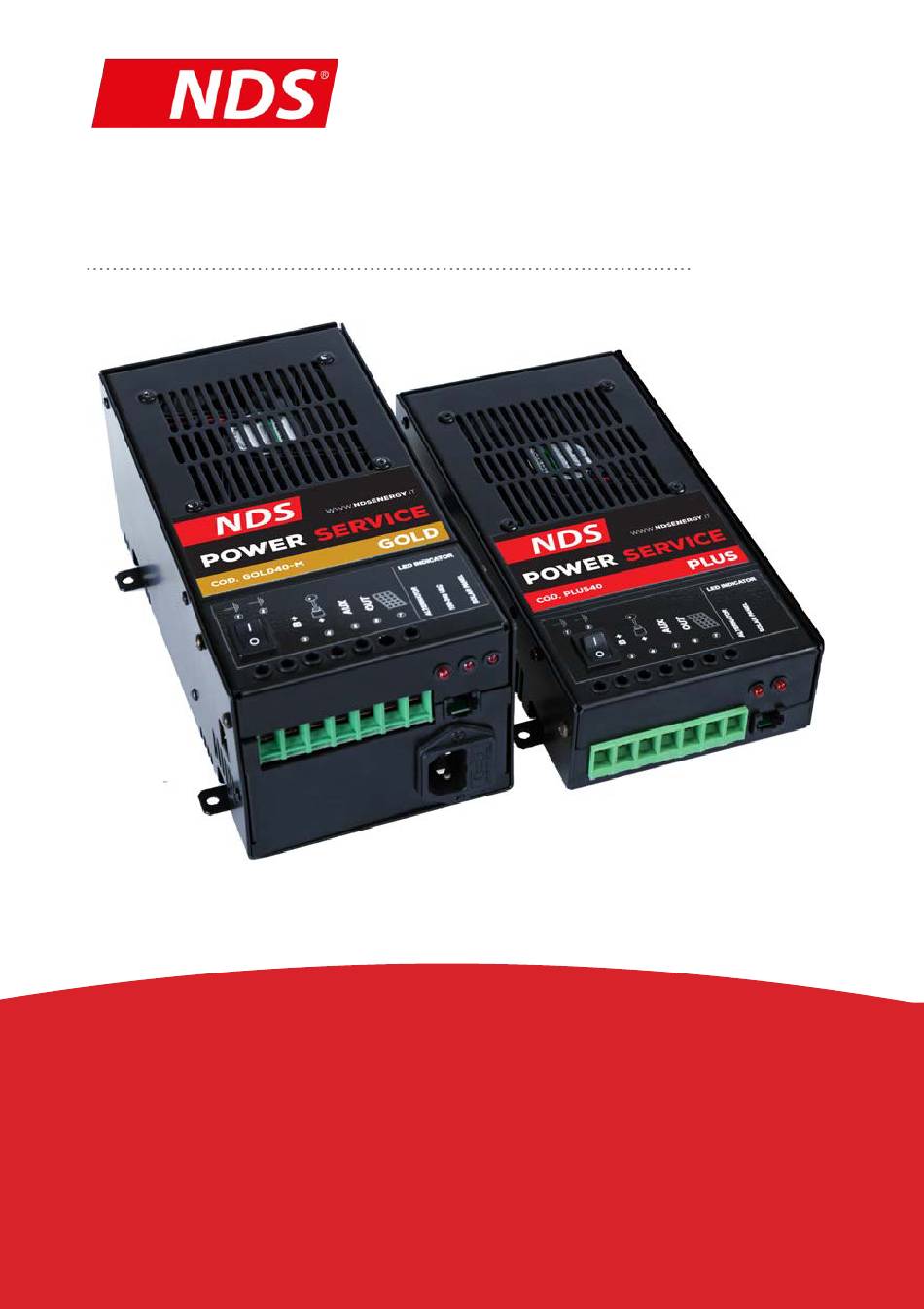

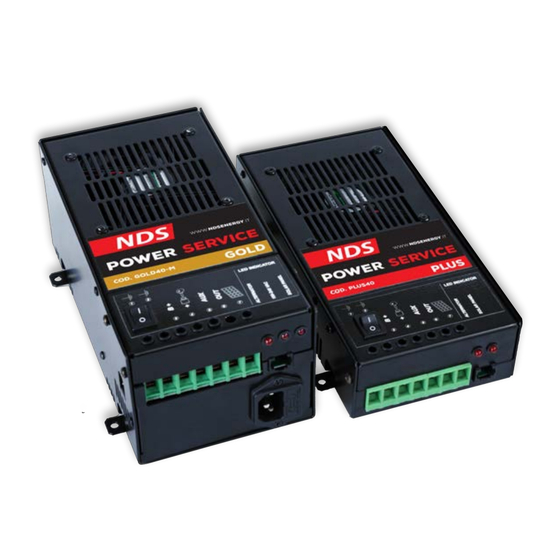

POWERSERVICE
User Manual
VALID FOR THE FOLLOWING MODELS
PLUS 25
PLUS 30
PLUS 40
PLUS 12-24/20
PLUS 24-24/20
GOLD 25-M
GOLD 30-M
GOLD 40-M
GOLD 12-24-M
GOLD 24-24-M
1
ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLUS 25 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NDS PLUS 25

Summary of Contents for NDS PLUS 25

  • Page 1 POWERSERVICE User Manual ENGLISH VALID FOR THE FOLLOWING MODELS PLUS 25 GOLD 25-M PLUS 30 GOLD 30-M PLUS 40 GOLD 40-M PLUS 12-24/20 GOLD 12-24-M PLUS 24-24/20 GOLD 24-24-M...
  • Page 2 INSTRUCTIONS FOR THE PROPER DISPOSAL  this electronic device is subject to the European Directive 2012/19/EU. according to the local waste disposal rules, do not dispose of old products with normal household waste. The proper disposal of products that can no longer be used prevents potential negative consequences for the environment and for the population.

  • Page 3: Table Of Contents

    INDEX 1. SAFETY INSTRUCTIONS 2. MODELS 3. DESCRIPTION 4. OPERATION 5. LED INDICATORS 6. CHARGING CURVES 7. CONNECTIONS 8. INSTALLATION 9. WIRING DIAGRAMS 10. CHECKING THE SYSTEM’S OPERATION 11. MAINTENANCE 12. FUSE REPLACEMENT 13. TROUBLESHOOTING 14. TECHNICAL FEATURES 15. F.A.Q. 16.

  • Page 4: Safety Instructions

    • The information contained in this manual may be changed without notice. NDS Energy s.r.l. reserves the right to make changes and improvements to the product at any time without notice and without...

  • Page 5: Models

    This manual is Valid for the following models INPUT: 12V / OUTPUT: 12V INPUT: 24V / OUTPUT: 24V PRODUCT CODE PRODUCT CODE PLUS 24-24/20 PLUS 25 GOLD 24-24-M PLUS 26 PLUS 27 INPUT: 12V / OUTPUT: 24V GOLD 25-M PRODUCT CODE...

  • Page 6: Description

    3. DESCRIPTION POWERSERVICE is the special line of DC-DC/AC-DC chargers designed, patented and assembled by NDS, which ensure an efficient charge to the leisure batteries, guaranteeing 50% more charge than the alternator only. POWERSERVICE units safeguard battery life with specific charge curves for all types of batteries.
  • Page 7 • Compatible With Euro 6 Systems With Smart Alternator. • Charge Management With Microprocessor. • Fan Speed Regulated by Temperature and Operating Power, for a Silent and Efficient Device. • Protection by Internal Fuses. • Alternator Protection (in Case of Overload). •...

  • Page 8: Operation

    POWERSERVICE units are equipped with several protection systems to ensure a high level of safety and security: PROTECTION TYPE REACTION TYPE Battery over-voltage Charge is interrupted Power Service automatically shuts off if the input voltage from the Alternator overload alternator and / or the engine battery falls below 12.8V Reduces the output current and turns off.
  • Page 9 continuously monitored, so as to quickly charge the battery as efficiently as possible. CHARGING FROM THE ALTERNATOR After the engine has started (and the alternator), the I g n i t i o n + o r D + s i g n a l c o n n e c t e d t o t h e POWERSERVICE input will be active and the device will monitor the voltage of the engine battery to check...
  • Page 10 POWER SUPPLY FROM SOLAR PANEL If the following situations occur: • Ignition+ or D + signal not active, • Solar panel illuminated by sunlight with AN OPEN- CIRCUIT voltage higher than 16V, POWERSERVICE starts charging using the integrated solar regulator with PWM technology; charging phases are the same as those provided by the alternator and by an external mains supply.

  • Page 11: Led Indicators

    5. LED INDICATORS POWERSERVICE è is equipped with LED indicators to signal the source of incoming charge and the charge phase that the device is using. the charging phase in progress is shown with a corresponding number of flashes on the relevant LEDs. PLUS SOLAR ALTERNATOR...

  • Page 12: Charging Curves

    6. CHARGING CURVES POWERSERVICE units support battery charging for AGM, Gel and flooded lead-acid batteries. There is a special curve for Euro 6 systems with “smart” alternators and LiFePO lithium batteries . The charge curves are selectable using two jumpers. A Curve: AGM MODEL Max voltage...
  • Page 13 C CURVE: GENERIC CURVE (FLOODED, LiFePO MODEL Max voltage 14,5V Float voltage 13,5V Max desulfation voltage not allowed NO YES D CURVE: GENERIC CURVE FOR SMART ALTERNATOR, EURO 6 (LiFePO MODEL Max voltage 14,6V 29,2v Float voltage 13,7V 27,4V Max desulfation voltage not allowed CAUTION The D curve is specific for euro 6 engines with smart...
  • Page 14 A, B CURVE (AGM, GEL) 15,8V max Vmax Imax maximum maximum desulfa current voltage tion maintenance Imax/2 C, D CURVE (FLOODED, LiFePO Vmax Imax maximum maximum current voltage maintenance Imax/2 NOTE During charging, the device’s led indicators will emit flashes corresponding to the charging phase being used at the time.

  • Page 15: Connections

    7. CONNECTIONS The device has a seven (7) terminal block for power connections for cables up to 16mm PLUS 1 2 3 4 5 6 7 GOLD 1 2 3 4 5 6 7...
  • Page 16 NOTE The negative pins n°1 and 2 are internally connected to each SPECIFIC AUX CONNECTION (PIN NO. 5) FOR THE FOLLOWING MODELS: PLUS 25, PLUS 30, PLUS 40, PLUS 24-24/20, GOLD 25-M, GOLD 30-M, GOLD 40-M, GOLD 24-24-M POWERSERVICE has an auxiliary terminal: (terminal n°5) dedicated to the original control unit output (eg...
  • Page 17 A relay with Normally Closed contact is active On POWERSERVICE Pin N°5 (AUX) and internally connected to Pin N°6 (Exit Pin). The Normally open contact is connected to input B+ (Pin N°3), so if the ignition+ signal line is not active (engine off) the appliance will be powered by the leisure battery.

  • Page 18: Installation

    8. INSTALLATION POWERSERVICE can be installed easily and securely thanks to the external flanges (aluminum feet). The ideal mounting position is smooth, well ventilated and not subject to overheating; avoid surfaces covered with fabric or carpet. Install the device as close as possible to the leisure batteries.
  • Page 19 CAUTION POWERSERVICE GOLD version integrates a 230VAC battery charger, therefore: pre-existing chargers, external chargers, integrated in the control unit chargers, must be uninstalled! Set the power switch to 0. 2. Connect the negative pole of the starter battery to POWERSERVICE Pin N°1.
  • Page 20 To avoid interferences in audio / video systems: • Use high quality (and in good condition) cables for TV antennas and other transceivers. • make sure that the POWERSERVICE’S power cables (input and output) are far from transceivers cables, sensitive devices power cables and AC current cables.

  • Page 21: Wiring Diagrams

    9. WIRING DIAGRAMS INSTALLATION IN VEHICLE WITH NO CONTROL UNIT AND / OR SPLIT CHARGE RELAY FOR CABLES LONGER THAN 2 METERS USE 16mm CABLES In this case, for ordinary vehicles to be transformed to RV or v e h i c l e s t h a t n e e d a n a u x i l i a r y b a t t e r y , t h e POWERSERVICE can be used to manage the charge and the distribution of energy.
  • Page 22 INSTALLATION IN VEHICLE WITH EXISTING USING CONTROL UNIT (CHARGING SYSTEM) FOR CABLES LONGER THAN 2 METERS USE 16mm For the control unit we mean the unit of control and distribution of energy on the HABITATION PART of the vehicle (Eg.: CBE ds300, Schaudt EBL163, nord elettronica ne287, SARGENT, BCA, etc.).
  • Page 23 INSTALLATION WITH SPLIT CHARGE RELAY ONLY FOR CABLES LONGER THAN 2 METERS USE 16mm CABLES The parallel relay refers to the pre-existing relay which, when the vehicle engine is switched on, makes the connection between the leisure battery and the engine battery.)
  • Page 24 PLUS AND GOLD 12-24-M INSTALLATION IN VEHICLE WITH 12V ALTERNATOR AND 24V SERVICE/LEISURE BATTERIES FOR CABLES LONGER THAN 2 METERS USE 16mm CABLES...
  • Page 25 INSTALLATION WITH I-MANAGER IN SYSTEMS WITH TWO LEISURE BATTERIES FOR CABLES LONGER THAN 2 METERS USE 16mm CABLES POWERSERVICE output must be connected to the common positive of the i-manager, in order to supply the two leisure batteries.

  • Page 26: Checking The System'soperation

    10.CHECKING THE SYSTEM’S OPERATION After installation, it’s necessary to check the correct operation of the device. before to start you must discharge the leisure battery first (about 25% less then the full charge) by switching on some of the appliances connected to the system: lights and TV for example.
  • Page 27 SOLAR PANEL CHARGING CHECK (CAN ONLY BE DONE WHEN VEHICLE IS OUTSIDE AND DURING DAYLIGHT HOURS!) Turn off the vehicle engine. 2. If the solar panel is correctly installed and oriented to the sun, after a few seconds the LED RELEVANT to the solar PANEL INPUT will flash.

  • Page 28: Maintenance

    The switch on the device must always be left in the ON position (1), for normal operation. If the switch is set to OFF (0), the POWERSERVICE disabled only from the "Alternator" charge source, then it continues to operate from the solar panel and / or 230V mains (for the GOLD model), but it will not work while the engine is running.

  • Page 29: Fuse Replacement

    12. FUSE REPLACEMENT POWERSERVICE units are electronically protected, but feature fuse protections for each of the input and output terminals. To access the DC part fuse, you must unscrew 4 side screws (2 on each side) and lift the front cover, taking care not to damage the wires connected to the leds and to the switch: 1 2 3...
  • Page 30 • Fuses 4 and 5 are connected in parallel and they are connected both to pin n°6. • By replacing the fuses, the POWERSERVICE will perform an automatic restart. • In case of further additional faults, contact the NDS energy service center promptly.

  • Page 31: Troubleshooting

    13. TROUBLESHOOTING PROBLEM POTENTIAL CAUSES • All the LEDs flash 5 times Fuse failure related to the accompanied by the sound cable connected to the output. • of the buzzer. Solar panel voltage too high. • pause. Electronic board overheating. Again flash and sound SOLUTION 1.
  • Page 32 PROBLEM POSSIBILI CAUSE • Detected voltage drop on the The alternator led flash 6 alternator times • Alternator insufficient power • Power component overheating • Power loss on the cables SOLUTION 1. Cables must have 10mm (min) section. 2. Check the connections on terminals 1,2,3 and 6. 3.

  • Page 33: Technical Features

    14. TECHNICAL FEATURES PLUS PLUS PLUS PRODUCT CODE Alternator Nominal Input Voltage Solar Panel Alternator 11V-15V Input Voltage Range Solar Panel 12V-28V Alternator Maximum Input Voltage Solar Panel Alternator ≥70A ≥90A ≥110A Input Sources Recommended Power Solar Panel ≤250W Nominal Output Voltage Output Voltage Range 11V-16V Battery Output Numbers...
  • Page 34 PLUS PLUS PLUS PRODUCT CODE Battery Voltage Detection D+ Signal Alternator / Ignition+ Yes / Active high Euro6 System Compatibility And Smart Alternator Alternator Vm≥13,3V and D+ on Smart Activation Threshold Vm≥12,4V and D+ on Alternator Solar Panel Vp≥16V and D+ off Alternator Vm≤12,8V or D+ off Smart...
  • Page 35 PLUS PLUS PRODUCT CODE 12-24/20 24-24/20 Alternator Nominal Input Voltage Solar Panel Alternator 11V-15V 22V-30V Input Voltage Range Solar Panel Alternator Maximum Input Voltage Solar Panel Input Sources Alternator ≥110A Recommended Power Solar Panel Nominal Output Voltage Output Voltage Range 22V-32V Battery Output Numbers Alternator...
  • Page 36 PRODUCT CODE PLUS 12-24/20 PLUS 24-24/20 Battery Voltage Detection D+ Signal Alternator / Yes / Active high Ignition+ Euro6 System Compatibility and Smart Alternator Vm≥13,3V and D+ Vm≥26,6V and D+ Alternator Activation Smart Vm≥12,4V and D+ Vm≥24,8V and D+ Threshold Alternator Solar Panel Vm≤12,8V or D+...
  • Page 37 GOLD GOLD GOLD PRODUCT CODE 25-M 30-M 40-M Alternator Nominal Solar Panel Input Voltage Grid 230VAC / 50Hz Alternator 11V-15V Input Voltage Solar Panel 12V-28V Range Grid 90VAC-264VAC 47/63Hz Alternator Maximum Input Solar Panel Voltage Grid 3,5A Alternator ≥70A ≥90A ≥110A Input Sources Recommended...
  • Page 38 GOLD GOLD GOLD PRODUCT CODE 25-M 30-M 40-M Charging Curves* 5 Phases Charging Curves* Yes – Jumper Charging Curves* AGM, GEL, Flooded, LiFePO Recommended Battery ≥75Ah ≥90Ah ≥120Ah Capacity Battery Voltage Detection D+ Signal Alternator / Yes / Active high Ignition+ Euro6 System Compatibility and Smart Alternator...
  • Page 39 GOLD GOLD PRODUCT CODE 12-24/20 24-24/20 Alternator Nominal Solar Panel Input Voltage Grid 230VAC / 50Hz Alternator 11V-15V 22V-30V Input Voltage Solar Panel Range Grid 90VAC-264VAC 47/63Hz Alternator Maximum Input Solar Panel Voltage Grid 3,5A Alternator ≥110A ≥55A Input Sources Solar Panel Recommended Power Grid...
  • Page 40 PRODUCT CODE GOLD 12-24/20 GOLD 24-24/20 Battery Voltage Detection D+ Signal Alternator / Yes / Active high Ignition+ Euro6 System Compatibility and Smart Alternator Vm≥13,3V and D+ Vm≥26,6V and D+ Alternator Smart Vm≥12,4V and D+ Vm≥24,8V and Activation Alternator D+ on Threshold Solar Panel Grid...
  • Page 41 POWERSERVICE. We recommend using THE NDS i- manager device to get all the information on the battery charge status.
  • Page 42 65010 - cappelle sul tavo (PE) Italy Declares under its own responsibility that the product: Commercial Name: POWER SERVICE PLUS 25, PLUS 30, Models: PLUS 40, PLUS 12-24/20, PLUS 24-24/20 To which this declaration refers, is in compliance with the provisions of the Directive of the Council of the...
  • Page 43 65010 - cappelle sul tavo (PE) Italy Declares under its own responsibility that the product: Commercial Name: POWER SERVICE PLUS 25, PLUS 30, Models: PLUS 40, PLUS 12-24/20, PLUS 24-24/20 To which this declaration refers, is in compliance with the provisions of the Directive of the Council of the...

  • Page 44: Warranty

    16.WARRANTY...
  • Page 48 TUTTA L’ENERGIA CHE TI SERVE ALL THE ENERGY YOU NEED 0011_MANU_PlusGold_GB01 NDS ENERGY S.R.L. Via Pascoli, 169 65010 Cappelle sul Tavo (Pe) Italy Tel.:+39 085 4470396 Web: www.ndsenergy.it Email: customer@ndsenergy.it LIKE US: facebook.com/ndsenergysrl...
