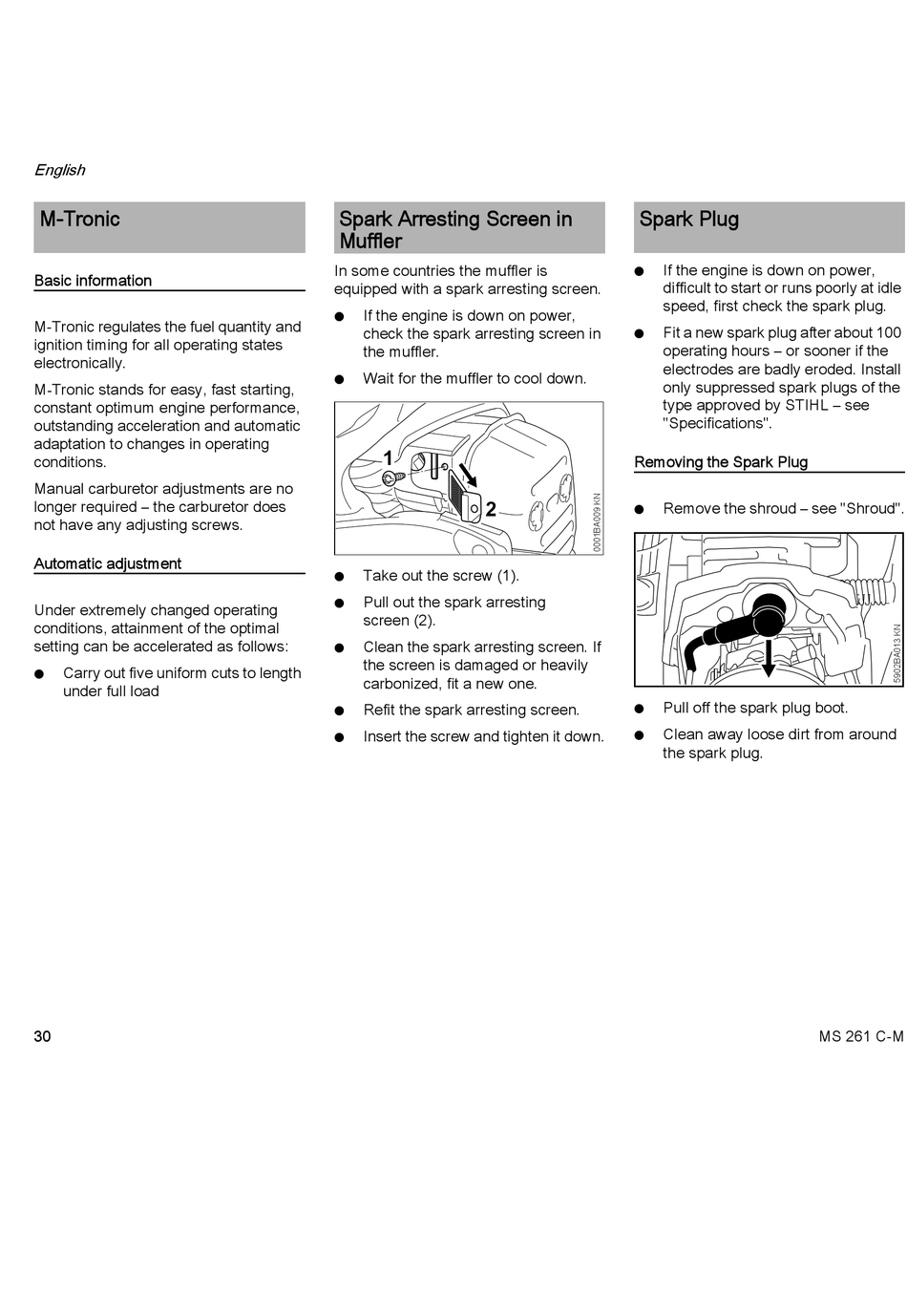

M-Tronic; Spark Arresting Screen In Muffler; Spark Plug - Stihl MS 261 C-M Instruction Manual

English

M-Tronic

Basic information
M-Tronic regulates the fuel quantity and
ignition timing for all operating states
electronically.
M-Tronic stands for easy, fast starting,
constant optimum engine performance,
outstanding acceleration and automatic
adaptation to changes in operating
conditions.
Manual carburetor adjustments are no
longer required – the carburetor does
not have any adjusting screws.
Automatic adjustment
Under extremely changed operating
conditions, attainment of the optimal
setting can be accelerated as follows:
Carry out five uniform cuts to length
N
under full load
30
Spark Arresting Screen in
Muffler
In some countries the muffler is
equipped with a spark arresting screen.
If the engine is down on power,
N
check the spark arresting screen in
the muffler.
Wait for the muffler to cool down.
N
1
2
Take out the screw (1).
N
Pull out the spark arresting
N
screen (2).
Clean the spark arresting screen. If
N
the screen is damaged or heavily
carbonized, fit a new one.
Refit the spark arresting screen.
N
Insert the screw and tighten it down.
N

Spark Plug

If the engine is down on power,
N
difficult to start or runs poorly at idle
speed, first check the spark plug.
Fit a new spark plug after about 100
N
operating hours – or sooner if the
electrodes are badly eroded. Install
only suppressed spark plugs of the
type approved by STIHL – see
"Specifications".
Removing the Spark Plug
Remove the shroud – see "Shroud".
N
Pull off the spark plug boot.
N
Clean away loose dirt from around
N
the spark plug.
MS 261 C-M
