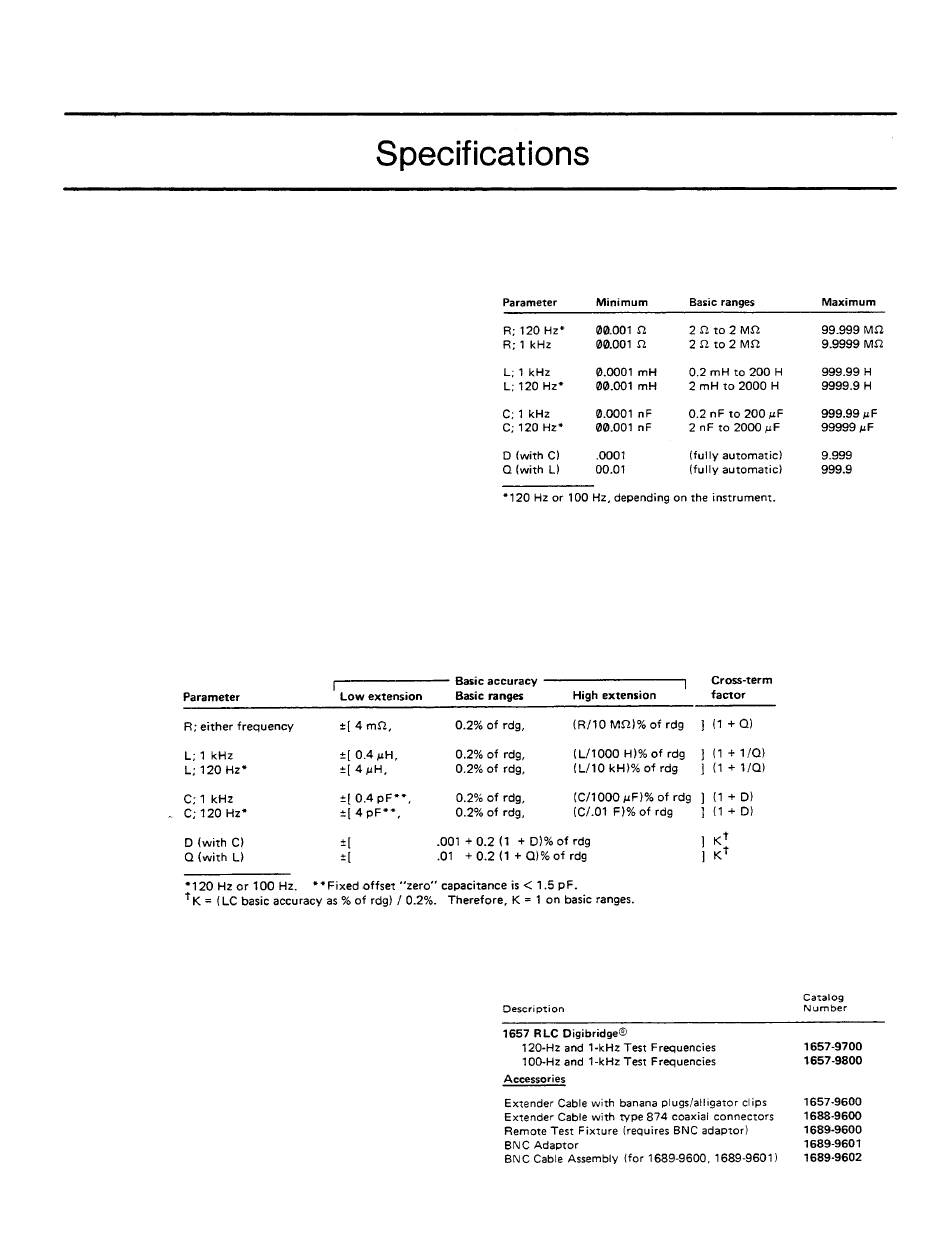

QuadTech 1657 RLC Digibridge Instruction Manual page 4

Measurement Mode: Measures R series or parallel; L and Q series or parallel; C
and D series or parallel. All measurement modes are pushbutton selectable.
Displays: LED-type numerical display with automatically positioned decimal points
and illumination of units. For R LC, five digits (99999) and simultaneously for DQ,
four digits (9999).
Measurement Speed: Greater than 3 measurements per second.
/
Test frequencies: Pushbutton selection between 2. Accuracy re panel
legends: +2%, -.01%. Actual frequencies: for 1657-9700, 1020.0 Hz +/- .01% (panel
legend "1 kHz") and 120.00 Hz +/- .01%;
for 1657.9800,1000.0 and 100.00 Hz +/- .01%.
Applied Voltage: 0.3 V rms maximum.
Environment: TEMPERATURE: 0° to 50°C operating, -40° to +75°C
storage. HUMIDITY: 0 to 85% R.H., operating.
Supplied: Power cord, axial-lead adaptors, instruction manual.
Power: 90 to 125 or 180 to 250 V, 50 to 60 Hz. Voltage selected
by rear-panel switch. 25 W maximum.
Mechanical: Bench mounting. DIMENSIONS: (wxhxd): 375x112x343 mm
(14.8x4.4x13.5 in.). WEIGHT: 5.6 kg (12.3 lb) net,l0 kg (22 lb) shipping.
Patent applied for.
Accuracy: For R, L, and C: +/- 0.2% of reading in basic ranges, if quadrature
component is small (D < 0.1, Q > 10, etc). See table. D accuracy: +/- .001 in basic
ranges, for D < 0.1 (otherwise, see table). Q accuracy: +/-.01 in basic ranges, for Q < 1
(otherwise, see table).
Ranges: Pushbutton selection with automatic front-panel guidance. Three basic ranges
(best accuracy, see table) of 2 decades each, for each parameter. Automatic extensions
to min and max, as tabulated.
