5.6.1 Disassembly.
Use the following procedure for access to replaceable
parts and contact points used in trouble analysis.
a. Disconnect the power cord.

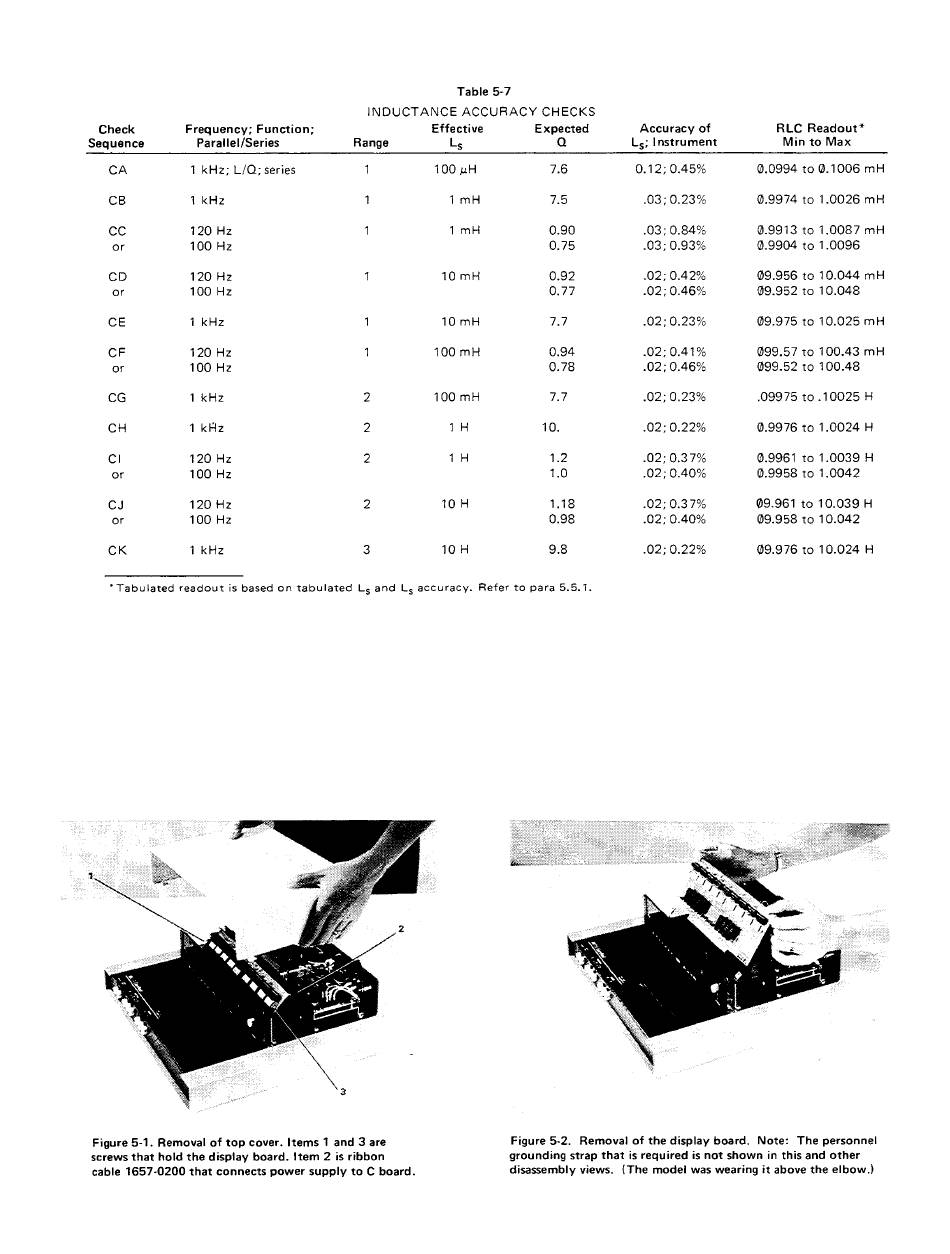

b. Remove the top-cover screws from the rear panel of
the main chassis. See Figure 1-2. Slide the top cover forward
about 6 mm, so that its front corners are unhooked. Lift it directly upward
(Figure 5-1). Reassembly note: 2 screws, 13 mm long.
Figures 5-1 through 5-6.
absolutely necessary) before removal of the main circuit board.
board to its brackets. (See Figure 5-8 in para 5.6.2.) Pull the board directly
out of its socket in the main board. Keep the display board in its original
(inclined) plane until it is completely free (Figure 5-2).
The next step, removal of display board, is recommended (though not
c. Remove the 2 support screws, at left and right, that hold the display
