• If the hose is run along the floor (or at less
than 40 cm above it) and raised later on,
water drain becomes difficult and laundry
may come out extremely wet. Therefore,
observe the heights described in the figure.
• To prevent flowing of dirty water back into
the machine and to allow for easy discharge,
do not immerse the hose end into the dirty
water or do not drive it in the drain more
than 15 cm. If it is too long, cut it short.
• The end of the hose should not be
bent, it should not be stepped on
and the hose must not be pinched
between the drain and the machine.
• If the length of the hose is too short, add an
original extension hose. Length of the hose
may not be longer than 3.2 m. To avoid water
leak failures, the connection between the
extension hose and the drain hose of the
product must be fitted well with an appropriate
clamp as not to come off and leak.

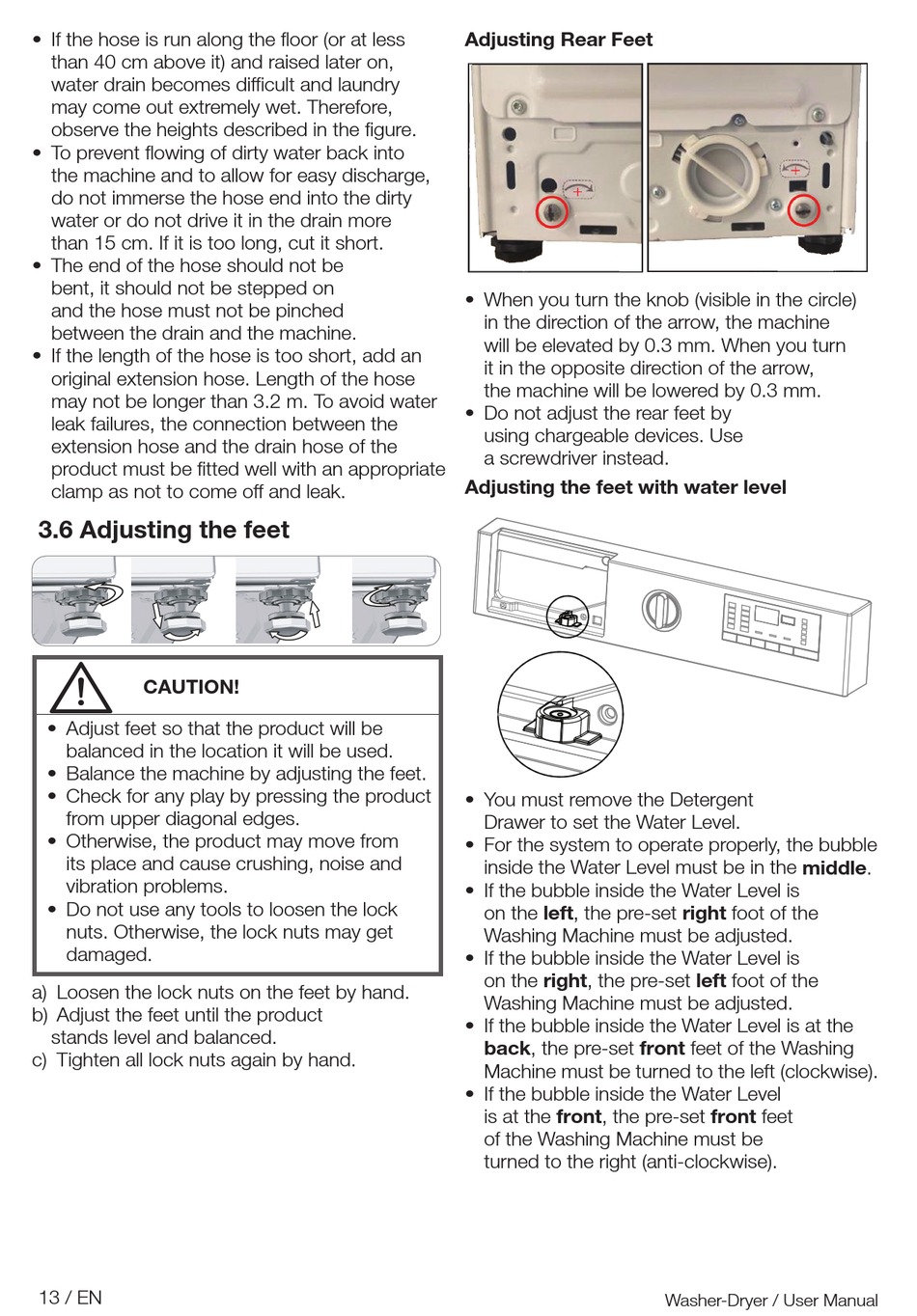

3.6 Adjusting the feet

A
CAUTION!
• Adjust feet so that the product will be
balanced in the location it will be used.
• Balance the machine by adjusting the feet.
• Check for any play by pressing the product
from upper diagonal edges.
• Otherwise, the product may move from
its place and cause crushing, noise and
vibration problems.
• Do not use any tools to loosen the lock
nuts. Otherwise, the lock nuts may get
damaged.
a) Loosen the lock nuts on the feet by hand.
b) Adjust the feet until the product
stands level and balanced.
c) Tighten all lock nuts again by hand.
13 / EN
Adjusting Rear Feet
• When you turn the knob (visible in the circle)
in the direction of the arrow, the machine
will be elevated by 0.3 mm. When you turn
it in the opposite direction of the arrow,
the machine will be lowered by 0.3 mm.
• Do not adjust the rear feet by
using chargeable devices. Use
a screwdriver instead.
Adjusting the feet with water level
• You must remove the Detergent
Drawer to set the Water Level.
• For the system to operate properly, the bubble
inside the Water Level must be in the middle.
• If the bubble inside the Water Level is
on the left, the pre-set right foot of the
Washing Machine must be adjusted.
• If the bubble inside the Water Level is
on the right, the pre-set left foot of the
Washing Machine must be adjusted.
• If the bubble inside the Water Level is at the
back, the pre-set front feet of the Washing
Machine must be turned to the left (clockwise).
• If the bubble inside the Water Level
is at the front, the pre-set front feet
of the Washing Machine must be
turned to the right (anti-clockwise).
