STEP 7:

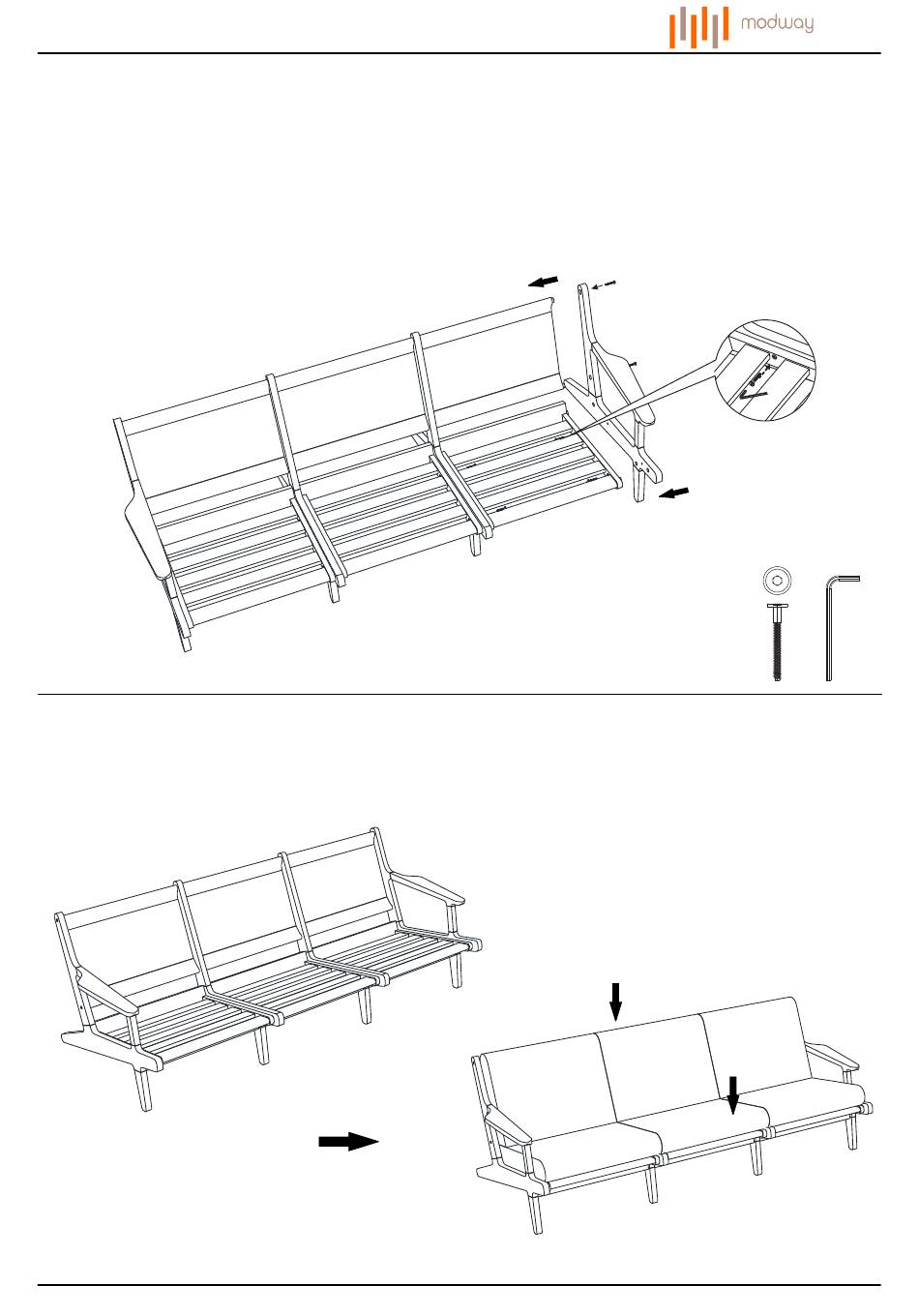

Carefully position Right Frame (4) to the assembled Chair Back (1) and Chair Seat (2) as shown. Insert the
tenon on Chair Back (1) and Chair Seat (2) into the rabbet on Right Frame (4).
Insert 2 pieces of Bolt (A) into the pre-drilled holes on Chair Back (1) through the top pre-drilled holes on Right
Frame (4).
Insert 2 piece of Bolt (A) into the pre-drilled holes on Chair Seat (2) through the top pre-drilled holes on Right
Frame (4).
Use Allen Wrench (B) to tighten Bolts (A) clockwise until secure.
7
3
Hardware & Tool required
STEP 8:
Carefully position the assembled chair to the desired location. Put Back Cushion (5) and Seat Cushion (6) into
the assembled chair as shown.
Customer Service 908-368-1025 www.modwayfurniture.com
7
8
2
Assembly is complete. Your three seater is ready to be used now!
