Operating and installation
instructions

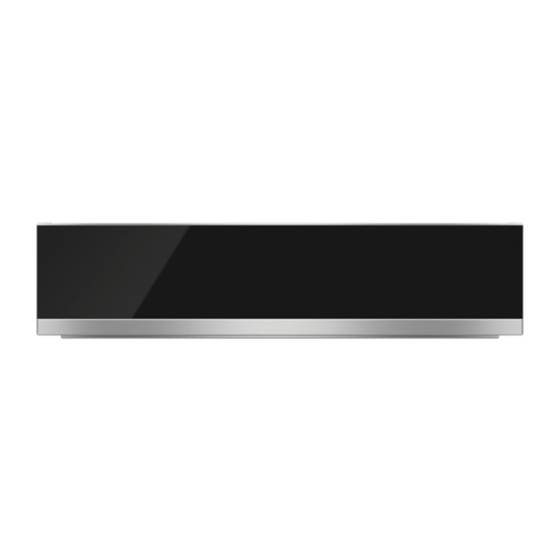

Built-in vacuum drawer
To avoid the risk of accidents or damage to the appliance it is
essential to read these instructions before it is installed and used for
the first time.
en-AE, SA
M.-Nr. 11 260 570

Advertisement

Table of Contents
loading

Summary of Contents for Miele EVS 7010

  • Page 1 Operating and installation instructions Built-in vacuum drawer To avoid the risk of accidents or damage to the appliance it is essential to read these instructions before it is installed and used for the first time. en-AE, SA M.-Nr. 11 260 570...
  • Page 2: Table Of Contents

    Contents Warning and Safety instructions..............Caring for the environment ................13 Guide to the appliance ..................14 Overview of the drawer ..................14 Controls and indicators ..................15 Accessories supplied ..................16 Cleaning for the first time ................. 17 Operation......................18 Important information for use................
  • Page 3 Contents Building-in dimensions ..................44 Installation in a tall or base unit..............44 Combination appliance for niches with a height of 450 mm......45 Combination appliance for niches with a height of 590 mm......46 Side view ......................47 Connections and ventilation................48 Installation ......................
  • Page 4: Warning And Safety Instructions

    Miele cannot be held liable for injury or damage caused by non- compliance with these instructions. Keep these operating and installation instructions in a safe place...
  • Page 5 Warning and Safety instructions Correct application  The drawer is intended for domestic use and use in other similar environments.  The drawer is not intended for outdoor use.  The drawer is only for domestic use to vacuum and seal food in vacuum bags intended for this purpose, to vacuum seal preserving jars, jars with twist-off lids and vacuum-proof containers made of plastic or stainless steel.
  • Page 6 Warning and Safety instructions Safety with children  Children under the age of 8 years must be kept away from the drawer unless they are constantly supervised.  Children aged 8 and older may only use the drawer without supervision if they have been shown how to use it and are able to do so in a safe manner.
  • Page 7  Unauthorised installation, maintenance and repairs can cause considerable danger for the user. Installation, maintenance and repairs must only be carried out by a Miele authorised technician.  A damaged drawer can be dangerous. Always check for visible signs of damage. Never use a damaged appliance.
  • Page 8 Miele authorised service technician. Otherwise the warranty is invalidated.  Miele can only guarantee the safety of the appliance when genuine original Miele replacement parts are used. Faulty components must only be replaced by Miele spare parts.
  • Page 9 Warning and Safety instructions  If the drawer is installed behind a furniture panel (e.g. a door), ensure that the door is never closed whilst the drawer is in use. Heat and moisture can build up behind a closed furniture panel and cause subsequent damage to the drawer, the housing unit and the floor.
  • Page 10 Warning and Safety instructions Correct use  Danger of burning. The sealing bar gets hot during operation. The weld seam of the vacuum sealing bag is also heated to a very high temperature during the sealing process. Do not touch the sealing bar or the weld seam immediately after the vacuuming process.
  • Page 11 Warning and Safety instructions  Never insert the tubes attached to the drawer into any body orifices. Vacuum sealing preserving jars and jars with twist-off lids in the closed vacuum sealing chamber:  Danger of injury. Damage and cracks in jars or glass/twist-off lids can cause implosion.
  • Page 12 Warning and Safety instructions Cleaning and care  Danger of electric shock. The steam from a steam cleaning appliance could reach live electrical components and cause a short circuit. Do not use a steam cleaner to clean the warming drawer.
  • Page 13: Caring For The Environment

    Please dispose of it at your local community waste collection / recycling centre or contact your Miele dealer for advice. Ensure that it presents no danger to children while being stored for disposal.
  • Page 14: Guide To The Appliance

    Guide to the appliance Overview of the drawer a Air filter cover (see “Installation”) b Glass lid with chamber seal Push down on the little black triangle to close the glass lid. c Sealing bar in the vacuum chamber and counterpressure bar on the underside of the glass lid d Drawer front with Push2open mechanism The drawer can be opened and closed by lightly pressing the drawer front.
  • Page 15: Controls And Indicators

    Guide to the appliance Controls and indicators Sensor controls Indicator lights a On/Off sensor control  h Indicator light  For switching the drawer on/off Indicates a warning (see “Problem solving guide”) b Sensor control  i Segment bar indicator lights For setting the vacuum settings For displaying the: c Sensor control ...
  • Page 16: Accessories Supplied

    VB 1828 vacuum sealing bags Miele dealer (see „Optional accessories“). 50 bags for storage and sous vide cooking of liquid and solid food Vacuum adapter 180 x 280 mm (W x H), D = 90 µm...
  • Page 17: Cleaning For The First Time

    Cleaning for the first time  Remove any protective wrapping and Cleaning the drawer for the stickers. first time  Do not remove stickers carrying  Take all accessories out of the safety or installation information or drawer. the data plate. ...
  • Page 18: Operation

    Operation - Use boil-proof bags if you want to Important information for use cook food sous vide after vacuum - Only vacuum seal food. sealing it. - Only use food that is fresh and in - Select a suitable bag size for the size good condition.
  • Page 19: Tips

    Operation Tips  Danger of injury caused by implosion. - Freeze liquids before vacuum sealing Damage to the glass lid can cause them. You can then fill the bag ²/₃ full. implosion. - Fold the edges of the vacuum sealing Preserving jars and jars with twist-off bag outwards for filling.
  • Page 20: Using The Vacuum Settings

    Operation Using the vacuum settings There are 3 vacuum sealing settings. The higher the vacuum setting selected, the greater the vacuum. Vacuum Intended use settings    Packaging, portioning and storing Suitable for - Food that is prone to squashing, e.g. lettuce, berries or crisps - Preserving jars and jars with twist-off lids (screw cap lids) with liquid contents, e.g.
  • Page 21: Using The Sealing Levels

    Operation Using the sealing levels There are 3 levels for sealing vacuum bags. The sealing level to select depends on the material thickness of the bag: the stronger the bag, the higher the sealing level. Level 3 is recommended for the vacuum sealing bags supplied.
  • Page 22 Operation  Danger of injury caused by implosion. Damage to the glass lid can cause implosion. Do not under any circumstances use the drawer if the glass lid is damaged.  Malfunction due to dirty and/or covered sensor controls. The sensor controls do not react or unintentional switching procedures result, perhaps even the automatic deactivation of the drawer.
  • Page 23: Vacuuming And Sealing Bags

    Operation Vacuuming and sealing bags The following occurrences during the process are normal and do not  Fill the vacuum sealing bag. indicate a functional or appliance fault:  Open the drawer and the glass lid. - The bag inflates, before enveloping ...
  • Page 24: Sealing The Bag Early

    Operation After the vacuuming process Sealing the bag early A signal sounds. You can end the vacuuming process before reaching the selected vacuum  Open the glass lid. settings and seal the bag early.  Danger of burning due to hot ...
  • Page 25: Vacuum Sealing Preserving Jars And Jars With Twist-Off Lids

    Operation Vacuum sealing preserving jars  Danger of injury caused by and jars with twist-off lids implosion. Damage and cracks in jars or glass/  Close the jar with its appropriate lid twist-off lids can cause implosion. and rubber seal or with the twist-off Only vacuum jars and lids which are lid.
  • Page 26 Operation After the vacuuming process A signal sounds.  Open the glass lid.  Danger of burning due to hot surfaces. The sealing bar is hot. Do not touch the sealing bar immediately after the vacuuming process.  Remove the jar from the vacuum chamber.
  • Page 27: Vacuuming Sealing External Containers

    Operation Vacuuming sealing external  Danger of injury caused by containers implosion. External glass containers can The process for vacuum sealing a implode during vacuuming. ® container from the caso vacuum Only use vacuum-proof containers sealing container set is described made of plastic or stainless steel.
  • Page 28 Operation  Place the lid on the container and The vacuum sealing process will start. The  sensor control goes out and press it down. the  sensor control lights up.  Open the drawer and the glass lid. Leave the glass lid of the drawer open for the entire duration of the vacuum sealing process.
  • Page 29 Operation After the vacuum sealing process A signal sounds.  Detach the connector from the container lid. Make sure that the closure of the lid is still turned to “SEAL” (closed).  Remove the vacuum adapter from the vacuum pump air intake valve. Before starting a new vacuuming process, check that the vacuum adapter, the tube and the vacuum...
  • Page 30: After Use

    Operation After use Cancelling a vacuum sealing process  Switch off the drawer with the  On/ Off sensor control. You can cancel a vacuum sealing process at any time, e.g. if you notice  Clean and dry the drawer and any during the process that the edge of the accessories as described in bag is not positioned correctly or that...
  • Page 31: Cleaning And Care

    Cleaning and care  Switch the drawer off to clean it.  Danger of injury due to electric shock.  The drawer and accessories should be cleaned and dried thoroughly after The steam from a steam cleaning each use. appliance could reach live electrical components and cause a short ...
  • Page 32: Cleaning The Drawer Front And Glass Lid

    Cleaning and care Cleaning the drawer front and Cleaning the vacuum adapter glass lid  Clean the vacuum adapter with a clean sponge and a solution of hot  Remove soiling and fingerprints with water and washing-up liquid or a a standard domestic glass cleaner or clean, damp microfibre cloth.
  • Page 33: Carrying Out A Drying Cycle

    Cleaning and care Carrying out a drying cycle When carrying out the drying cycle, the vacuum chamber must be empty When food is vacuum sealed, moisture and free of liquid residues. gets into the oil circulation system in the Clean and dry the vacuum chamber vacuum pump.
  • Page 34: Problem Solving Guide

    The drawer will not The safety screws on the back of the drawer have open. not been removed.  Contact your Miele dealer. The drawer cannot be The appliance is not correctly plugged in and switched on. switched on at the mains socket.
  • Page 35 Problem solving guide Issue Cause and remedy The vacuuming process The oil in the vacuum pump has become extremely takes longer than hot. expected.  Leave the drawer to cool for an hour before starting another vacuuming process.  When carrying out a number of consecutive vacuuming processes, wait a minimum of 2 minutes between each process to prevent the oil from overheating again.
  • Page 36  Start the vacuuming process again with a new vacuum sealing bag and select a higher sealing level. The rubber on the counterpressure bar is not evenly fitted.  Flatten the rubber. The sealing bar and/or the counterpressure bar is damaged.  Call Miele to have it replaced.
  • Page 37 Problem solving guide Issue Cause and remedy The bag is not The vacuum sealing bag has been damaged by maintaining the vacuum sharp pointed objects, e.g. pointed pasta shapes or a although the weld seam bone. is intact.  Start the vacuuming process again with a new vacuum sealing bag, on a lower vacuum level if necessary.
  • Page 38  When carrying out a number of consecutive vacuuming processes, wait a minimum of 2 minutes between each process to prevent the oil from overheating again.  If the problem occurs again, contact your Miele dealer. The vacuuming process The required final vacuum could not be achieved.
  • Page 39 The chamber seal is damaged, e.g. cracks can be seen.  Call your Miele dealer to replace it. Abrasion marks on the Installing or removing an appliance above the drawer top edge of the front has caused abrasion marks.
  • Page 40: Optional Accessories

    Miele appliances. For storing and sous vide cooking of liquid and solid food These can be ordered from your Miele 180 x 280 mm (W x H), D = 90 µm dealer (see end of this booklet for contact details). VB 2435 (pack of 50)
  • Page 41: After Sales Service

    In the event of any faults which you cannot remedy yourself, please contact your Miele dealer. Contact details for your Miele dealer are given at the end of this document. Please note that telephone calls may be monitored and recorded for training purposes and that a call-out charge will be applied to service visits where the problem could have been resolved as described in this booklet.
  • Page 42: Installation

    The drawer may only be built in in combination with those appliances quoted by Miele as being suitable. Miele cannot guarantee trouble-free operation if the appliance is operated in combination with appliances other than those quoted by Miele as being suitable. ...
  • Page 43: Installation Notes

    *INSTALLATION* Installation Installation notes The drawer can be used in combination with the following Miele built-in appliances: - all ovens with an appliance front width of 595 mm - all steam ovens with an appliance front width of 595 mm - all coffee machines with an appliance front width of 595 mm - all microwaves with an appliance front width of 595 mm...
  • Page 44: Building-In Dimensions

    *INSTALLATION* Installation Building-in dimensions All dimensions are given in mm. Installation in a tall or base unit The furniture housing unit must not have a back panel fitted behind the building-in niche. If the drawer is to be installed in a base unit underneath a hob, please also observe the installation instructions for the hob as well as the building-in depth required for the hob.
  • Page 45: Combination Appliance For Niches With A Height Of 450 Mm

    *INSTALLATION* Installation Combination appliance for niches with a height of 450 mm The furniture housing unit must not have a back panel fitted behind the building-in niche.
  • Page 46: Combination Appliance For Niches With A Height Of 590 Mm

    *INSTALLATION* Installation Combination appliance for niches with a height of 590 mm The furniture housing unit must not have a back panel fitted behind the building-in niche.
  • Page 47: Side View

    *INSTALLATION* Installation Side view A EVS 7010: 22 mm EVS 7110: 23.3 mm...
  • Page 48: Connections And Ventilation

    *INSTALLATION* Installation Connections and ventilation a View from the front b Mains connection cable, L = 2200 mm c No connections permitted in this area d Ventilation cut-out, min. 1800 mm...
  • Page 49: Installation

    *INSTALLATION* Installation Fitting the air filter and removing the Installation safety screws The drawer has an integrated vacuum pump which contains oil. To prevent oil from leaking out, the drawer must be transported and stored in a horizontal position only. Do not tilt the drawer and do not stand it up on its side.
  • Page 50 *INSTALLATION* Installation  Remove the safety screws  from  Screw the air filter  onto the the back of the drawer. vacuum pump using a screwdriver. Oil may leak while transporting the drawer. Remove the air filter  before transporting the drawer and plug the vacuum pump with the transit device .
  • Page 51 *INSTALLATION* Installation Installing the drawer Fitting the anti-tipping mechanism  Danger of injury due to incorrect installation. The drawer is heavy and will tip forwards when open. Installation must be carried out by two people. Keep the drawer closed until it has been fitted to the side walls of the housing unit using the supplied anti- tipping mechanism.
  • Page 52 *INSTALLATION* Installation Installing and connecting the drawer When the drawer is first connected, or after an interruption to the mains, all of  Check that the air filter is fitted and the sensor controls and indicators in the safety screws have been removed the display will light up for approx.
  • Page 53 *INSTALLATION* Installation Aligning the front of the drawer After installing the combination appliance, it may be necessary under certain circumstances to align the front of the drawer and adjust the gap between the drawer and the combination appliance. To help you do this, there are 2 screws behind the drawer front with which the front is fixed to the drawer housing.
  • Page 54: Electrical Connection

    (RCD) with a trip  Danger of injury. range of 30 mA. Miele cannot be held liable for unauthorised installation, maintenance and repair work as this can be dangerous to users. Miele cannot be held liable for...
  • Page 55 H 05 VV-F (PVC- supply during repair or service work. insulated), available from your Miele After disconnection, ensure the dealer. appliance cannot be switched back on by mistake.
  • Page 59 Tel. +966 11 2013501, Fax. +966 11 2013502 Taif Hadiya Street Tel. +966 12 7327001, Fax. +966 12 7369596 Khobar Al Zahran Road Tel. +966 13 8646150, Fax. +966 13 8646190 Manufacturer: Miele & Cie. KG, Carl-Miele-Straße 29, 33332 Gütersloh, Germany...
  • Page 60 EVS 7010, EVS 7110 en-AE, SA M.-Nr. 11 260 570 / 01...

This manual is also suitable for:

Evs 7110
