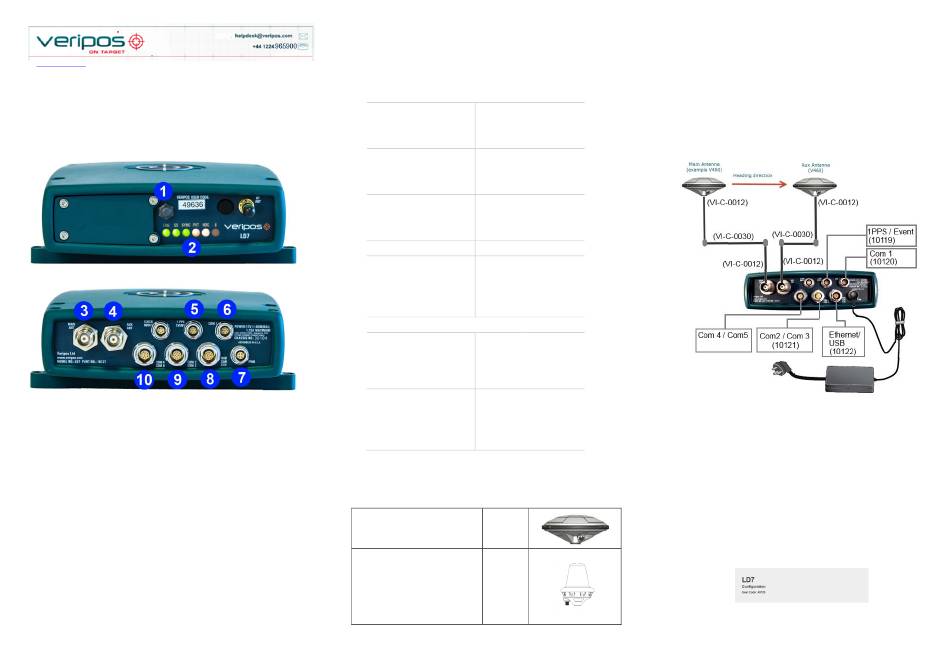

VERIPOS LD7 Quick guide
VOSS:
http://help.veripos.com
Reference card for use day to day, to print and use.

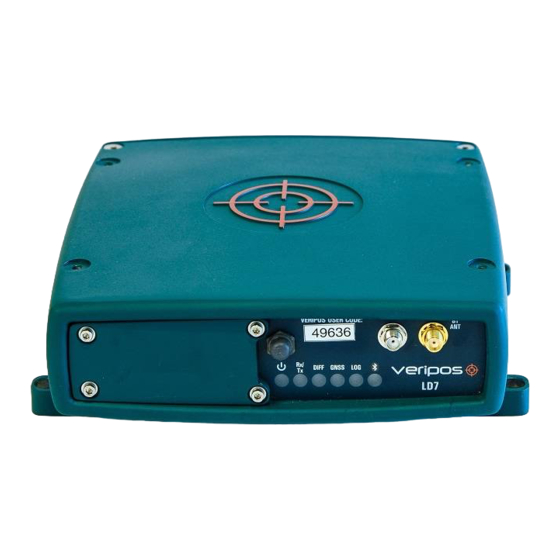

1.
Latch Power Button
2.
Status LEDs
3.
Main Antenna Connector
4.
Aux Antenna Connector
5.
1 PPS /Event Connector
6.
Com 1 Connector
7.
Power Connector
8.
Ethernet / USB Connector
9.
Com2 / Com3 Connector
10.
Com4 / Com5 Connector
AB-V-MA-00560 Rev A8

Cables and adaptors supplied

1 x Ethernet / USB Cable
1 x PSU
16 pin Lemo Plug
4 pin Lemo Plug
(PN 10119)
1 x PPS / Event Cable
1 x Com1 Cable
7 pin Lemo Plug
9 pin Lemo Plug
(PN 10122)
(PN 10120)
1 x Com2 / Com3 Cable
1 x Com4 / Com5 Cable
14 pin Lemo Plug
10 pin Lemo Plug
(PN 10121)
1 x AC power lead
2 x LMR400 coaxial cable
4 x LMR240 coaxial cable
N-Type Skt to N-Type Skt
TNC Plug to N-Type Plug
(PN: VI-C-0030)
(PN: VI-C-0012)
1 x LMR240 coaxial cable
1 x LMR240 coaxial cable
N-Type Plug to N-Type
TNC Plug to N-Type Plug
Plug
(PN: VI-C-0012)
(PN: VI-C-0011)
1 x LMR400 coaxial cable
N-Type Skt to N-Type Skt
(PN: VI-C-0030)
Antennas
See LD7 Installation manual for more information.
2 x LBand & GNSS combined
V460
Dedicated LBand (optional)
V86

Connecting LD7

Connect the LD7 making connections as shown in the typical example
installation below.
When installing the Lemo connectors ensure the red dot on the plug
and red mark on the socket line up

Initial start-up

Press the power switch on the front panel. Allow the unit approximately
120 seconds to start up.
Use a Windows 7 or XP PC with browser software (preferably Google
Chrome version 30.0.1559.101 or above)
Amend the IP address of the PC to a compatible address for the LD7.
The default fixed IP address of the LD7 is 192.168.0.126.
Connect the LD7 RJ45 lead via an Ethernet hub or directly to the PC.
On the PC, open internet browser and enter the default LD7 IP address,
192.168.0.126
Enter the unique LD7 User code on front of LD7 unit and press OK.
Once connected the main browser page is shown:
LD7 Main browser page – default / recommended settings shown

Beam selection

On the LBand page select a Veripos correction satellite beam for your
