Veripos LD2 Quick Manual

VERIPOS LD2 Quick guide
VOSS: http://help.veripos.com
1. Use cables & adaptors supplied:
Antenna tails (L-band N-Type
/GNSS TNC) to suit
1 x AC power lead
Optional - DB9– DB9 serial output
cables to suit configuration
2. Antennas: - see LD2 Installation manual for more information.
e.g.V460, GA530
GNSS
AD491
L-Band e.g.90984, V86
MF Marine Beacon
e.g.CDA-3, A31
(Optional)
HF
DHM 5000
(Optional)
AB-V-MA-00545 Rev A1

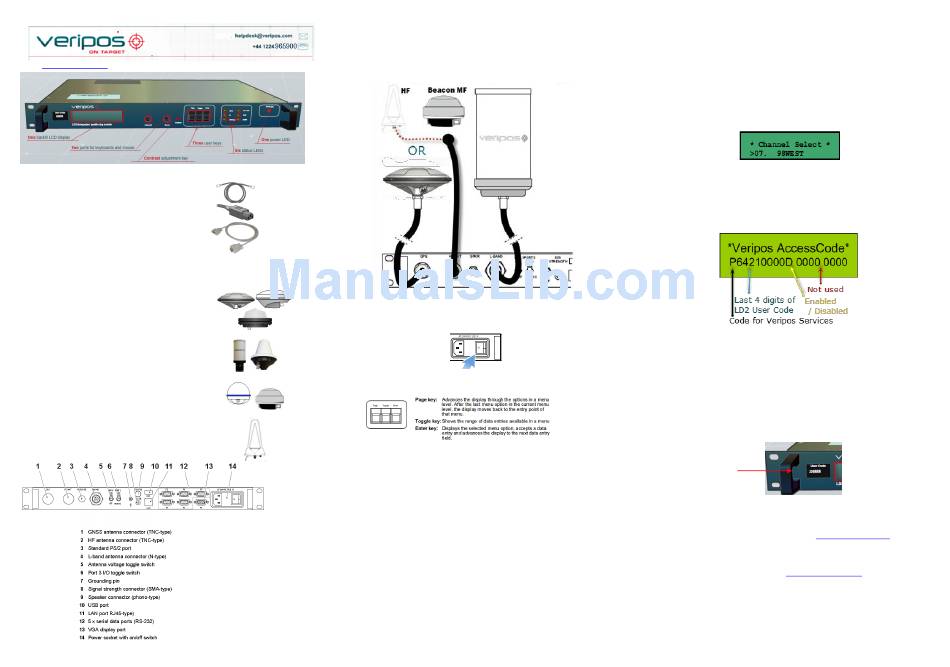

3. Connecting the LD2 - make connections to the LD2 as shown;
4. Turn on LD2 power at rear and wait until unit has initialized;
Use the front panel keys to navigate and set up the LD2 screen:
5.

Beam Selection

To use Veripos corrections the LD2 must be synced to a geostationary satellite beam.
A more detailed description is in the LD2 Operations Manual.
Select a Veripos correction satellite beam for your vessel work area:
Beam Coverage
143.5E Asia, Australasia, Indian Ocean
POR East Asia, Australasia, Alaska
IOR Asia, Indian Ocean, East Africa, Persian Gulf,
Caspian Sea
25E North Sea, Mediterranean Sea, Africa, Persian
Gulf, Caspian Sea
AORW North America, Gulf of Mexico, South America
98W North America, Gulf of Mexico, South America
AORE North Sea, Mediterranean Sea, Africa
Press Page until Main Menu / Configuration
Enter 1x to Configuration / Demodulator
Enter 1x to Channel Select. Enter.
Toggle until beam required is shown, Enter.
Toggle from N to Y, Enter.
> chevron shows beam in use.
6.

Enable for Veripos Corrections

The LD2 needs to be synced to a regional beam before enabling.
Press Page until Access Code shows, then Enter to view current status:

Service Access Licence number (SAL). This is the contract number for
augmentation services provided by Veripos to you / your client and must be
provided when requesting service activation / deactivations.

User Code for the IMU – this is the unique 5 code number printed on the IMU
chassis.

The Veripos Augmentation Service(s) required – advise the Helpdesk of the
name / type of service appropriate to your requirements and IMU.
Once you have this information contact the Veripos Helpdesk to request unit
activation, quoting your User Code and Service Access Licence (SAL) number.
Provide the unique 5 digit User Code shown on the LD2 front panel (above).
You can download a Service Notification Form from http://help.veripos.com
when contacting the Veripos Helpdesk .Provide the details requested and type of
Service(s) you require, e.g. Veripos Ultra with Verify DP.
Tel. +44 1224 965900 email: helpdesk@veripos.com
