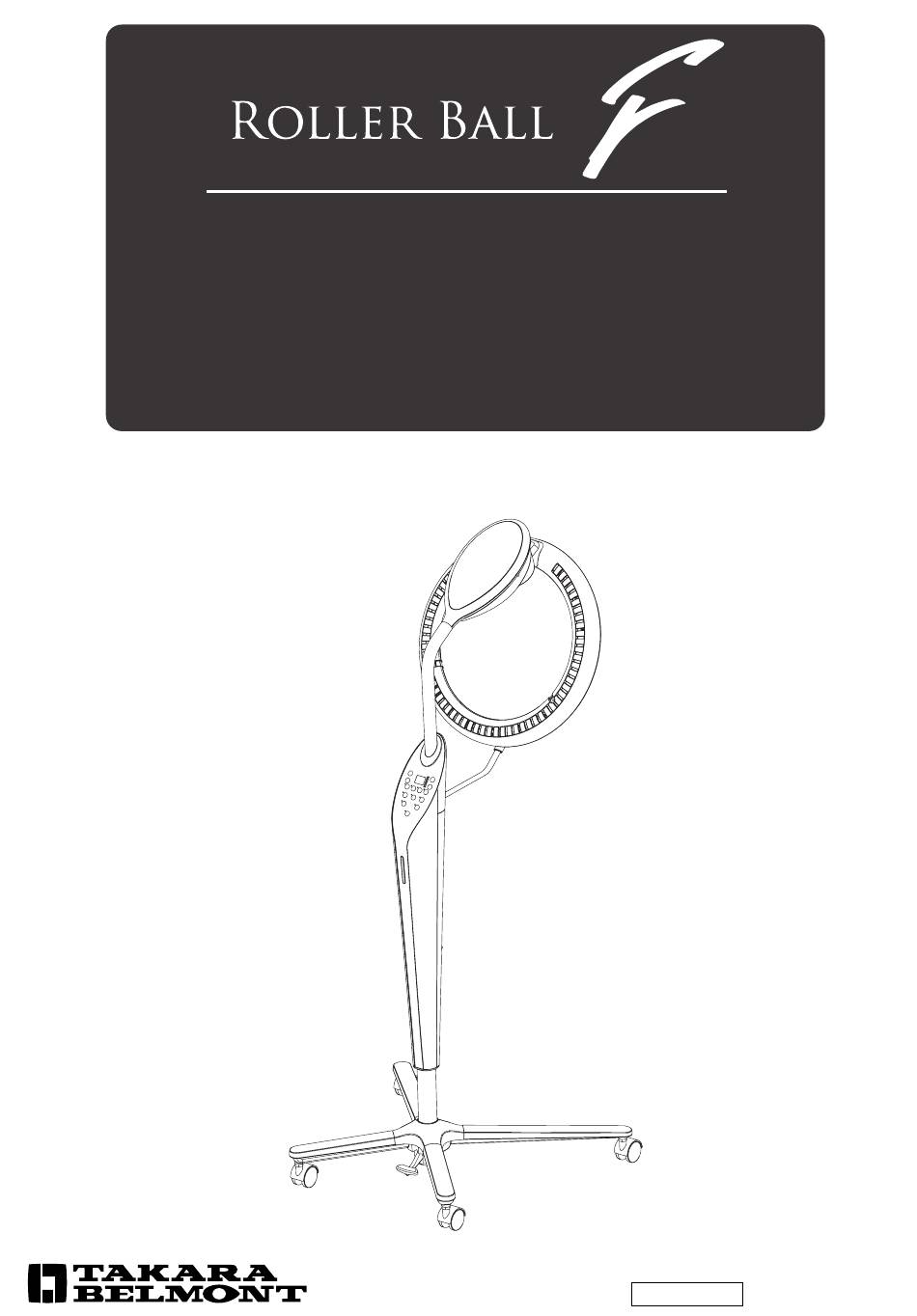

- Page 1 Model A K - S 2 3 S A K - S 2 3 S F Assembly Instructions February 2012 Request No. 1A08XGB0 Second Version...
-
Page 2: Parts Supplied
<Before Assembling the Product> Check the parts supplied with the product. Prepare a No.2 Phillips‑head screwdriver for assembling. Never take out the upper main unit from the carton box or CAUTION assemble the unit by holding it at the ring. 【Screws Supplied 】 ‑ M5 x 15 cap bolt (with spring washer) 7 pieces ‑ M4 x 12 binding‑head screw 2 pieces ‑ M4 x 12 (black) binding‑head screw 1 piece ‑ M3 x 15 pan‑head screw (with flat washer, spring washer) 1 piece 【Assembling Procedures 】 【Parts Supplied】 Common Parts Common Procedures Stand pole assembly ・・1 set Stand base ・・・・・・1 set Assembling the stand. Installing the stand base cover. Fixing the upper main unit onto the stand. Stand base cover・・・1 piece Guide bar・・・・・1 set Raising and fixing the shaft. Installing the guide bar. Power cord・・・・1 set Upper main unit ・・1 set Specification w/o Fan Installing the upper main unit cover. Specification w/ Fan Power cord stopper・・1 piece Allen key wrench・・1 piece Installing the upper main unit cover (w/ Fan). *Opposite side: 4 mm Common Procedures Installing the pipe cover. -
Page 3: Assembling The Stand
Assembling the stand. Installing the stand base cover. *Tighten the stand pole firmly to prevent the unit from rattling. Stand base cover M5 x 15 cap bolt : 4 pieces (With a spring washer) Fix the stand base cover through the stand pole. Stand pole assembly Latch of the stand base cover (8 latches) Stand base Insert the stand pole into the stand base and tighten at four points with the supplied screws. *Install the stand base cover so that the latches * Use the supplied L‑shaped wrench. on the backside will hook onto the stand base. Fixing the upper main unit onto the stand. *Do not hold the unit at the ring when performing this procedure. *Tighten the screws firmly to prevent the unit from rattling. Upper main unit M5 x 15 cap bolt (with spring washer): 2 pieces Insert the upper main unit into the stand pole, and tighten it at two points with the supplied screws. *Use the supplied L‑shaped wrench. - Page 4 Never release your hands from the shaft throughout the operation CAUTION of step . Doing so may cause an impact to the root of the shaft, resulting in a damage of the product. Dropping the shaft may cause a strong impact that can result in a damage of the product. Damage Do not apply pressure onto the shaft.
- Page 5 ・ Raising and fixing the shaft. Loosen the screws on the shaft with the L-shaped wrench, raise the shaft up, and tighten with the lock screw. *Never release your hands from the shaft until you complete this procedure. １．Loosen the screws. Shaft ２．Tighten the screw.
- Page 6 Installing the guide ba r. Insert the guide bar into the main unit and secure it with the two supplied screws. *Use the Phillips‑head screwdriver. M4 x 12 binding‑head screw : 2 pieces Guide bar Specification w/o Fan Installing the upper main unit cover. Set the upper main unit cover. *Pay attention to the position of the latches. M4 x 12 (black) binding‑head screw : 1 piece Fix the cover at one point with the supplied screw. *Use the Phillips‑head screwdriver. Specification w/ Fan Installing the upper main unit cover (with Fan). Make sure that the lead wire is not caught when installing the upper CAUTION main unit cover. Neglecting this caution may cause damage to the product such as breaking of wire. Connect the connector. *Lead wire should not get caught. (Black) Binding‑head screw M4 x 12: 1 piece Fix the cover at one point with the supplied Set the upper main unit cover. screw. *Pay attention to the positions of the latches. *Use the Phillips‑head screwdriver.
-
Page 7: Attaching The Power Cord
Installing the pipe cover. Information If the shaft is fixed in an inclined position at process step , the pipe cover may not install correctly . If this is the case, adjust the fixing position of the shaft. Fit in the pipe cover. Fit the latch into the pitted area on the cover. *Insert the latch provided at the back of the pipe cover into the Correctly Installed Pipe Cover pitted area on the main unit cover. A space is created at the rear end of the A gap can be seen between the pipe cover and the main unit cover. pipe cover. Above illustration shows a shaft inclined backward Above illustration shows a shaft inclined forward. Completion. Attaching the power cord. *Be sure to check the operation. M3 x 15 pan‑head screw (with flat washer, spring washer): 1 piece Fix the cord at the power cord stopper at one point with the supplied screw. *Use the Phillips‑head screwdriver. 【 】 Specification w/o Fan... -
Page 8: Control Panel
Checking of Operations Control Panel 【 】 Operating mode selection buttons Start/stop button Fan button (only for the specification with fan) 【Process】 ①Check the initial status ・Confirm that all lamps illuminate for one second after turning on the power switch. ...
