OWNER'S MANUAL

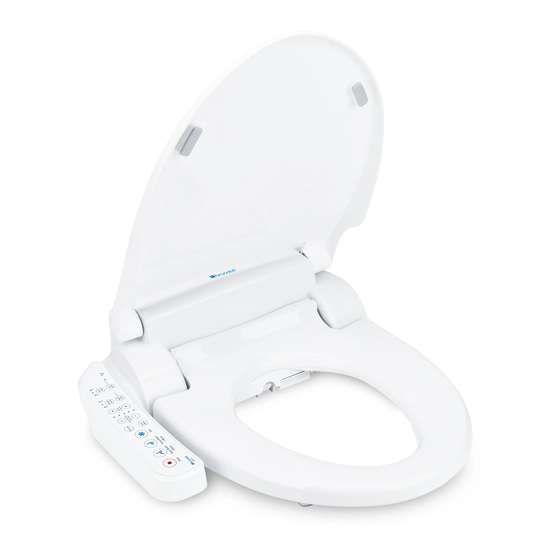

Swash SE400 Advanced Bidet Toilet Seats
SE400-EW
SE400-RW

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SE400 and is the answer not in the manual?

Questions and answers

Summary of Contents for brondell SE400

  • Page 1 OWNER’S MANUAL Swash SE400 Advanced Bidet Toilet Seats SE400-EW SE400-RW...
  • Page 2 Attach Proof of Purchase to This Page Adjunte prueba de compra a esta página Joindre une preuve d’achat à cette page...
  • Page 3: Table Of Contents

    Product Parts Cleaning the Mesh Filter Product Storage & Use TROUBLESHOOTING PRODUCT INSTALLATION WARRANTY PRODUCT INSTALLATION Installation Parts Before Installation Swash Installation External Bidet Filter Installation PRODUCT OPERATION OPERATING THE SWASH SE400 Control Panel Using the SE400 Special Mode Operations...
  • Page 4 • If the product produces a strange noise, a burning smell, or emits smoke, unplug it immediately from the electrical outlet and contact Brondell. Failure to do so may result in electric shock or fire. • Do not insert any wires or sharp objects into any product gaps. This may result in electric shock, fire, or product damage.
  • Page 5 • Do not use the product if it is not working properly. Please unplug the product immediately, close the main water supply valve, and call the Brondell Service Center at Failure to do so may result in electric shock, fire, or flooding.
  • Page 6 • Never operate this product if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Contact the Brondell Service Center for examination and repair.
  • Page 7 SAFETY INFORMATION (IMPORTANT SAFEGUARDS) For those with certain medical or mobility issues in the bathroom, ATTENTION we recommend our Swash 1400 or Swash 1000 bidet seats, as their mounting systems are engineered for the most secure transitions from wheelchairs or walkers. GROUNDING AND GFI OUTLET INSTRUCTIONS This product should only be used with a grounded GFCI (Ground Fault Ground GFCI Outlet...
  • Page 8 PRODUCT INFORMATION Product Features Stainless-Steel Nozzle System Nozzle Oscillation Stainless steel resists soiling and bacterial The Move function provides a massaging, contamination for enhanced hygiene. oscillating cleanse during the wash cycle ensuring a thorough and comfortable wash. Posterior and Feminine Warm Water Wash Experience the ultimate in clean with adjustable Auto Function temperature, position, pressure, massage, and...
  • Page 9 PRODUCT INFORMATION Product Dimensions Elongated Top View 4.3 in 16.4 in 7.8 in 14.9 in 18.2 in 2.7 in 13.6 in Round Top View 4.3 in 15.2 in 7.8 in 14.9 in 18.2 in 2.7 in 13.6 in Required Distance Between Mounting Holes 5.5 in...
  • Page 10 PRODUCT INFORMATION Product Parts 2. Seat Sensor 3. Warm Seat 4. Warm Air Dryer 5. Nozzle Assembly   1 6. LED Nightlight Control Panel 8. Power Plug 9. Water Inlet with Mesh Filter 10. Drain Plug 11. Mounting Plate   8  ...
  • Page 11: Product Installation

    PRODUCT INSTALLATION Installation Parts Mounting Bolt (2) 6. Top-Mount Brackets (2) 2. Rubber Cone Washer (2) T-Valve Connector with 3. Flat Washer (2) Rubber Washer 4. Nuts (2) 8. Bidet Hose 5. Mounting Plate   1   7   8  ...
  • Page 12: Before Installation

    This may cause damage to the internal components. WATCH OUR INSTALLATION VIDEO Installation for all Swash products can be found online at brondell.com CHECK BOLT SPREAD This bidet seat can only be installed on toilets with a bolt hole spread of 14 cm / 5.5 in.
  • Page 13: Swash Installation

    PRODUCT INSTALLATION Swash Installation Please read these instructions carefully before installing the Swash. Failure to do so could result in flooding, leaking or damage to the product. NOTE: Steps may vary by type of seat and toilet 1. Existing Toilet Seat Removal a.
  • Page 14 PRODUCT INSTALLATION Swash Installation c. Slide rubber cone washer, flat washer, and then nut onto mounting bolts under the toilet bowl and tighten to keep mounting plate in place. 6. Install Mounting Plate for top-mounted toilet seats (see Page 11, Step 5 for instructions on Standard Installation).
  • Page 15: External Bidet Filter Installation

    Swash. The bidet filter should be changed every six months, and can be purchased online at brondell.com. 1. Turn Off Water Supply Valve and Flush Toilet.
  • Page 16: Operating The Swash

    OPERATING THE SWASH SE400 Control Panel     1 0 Power Indicator Eco Mode Button     1 1 and Indicator Seat Temperature   9 Button and Indicators Night Light Button   1 2 and Indicator Water Temperature   8 Button and Indicators  ...
  • Page 17 OPERATING THE SWASH SE400 Control Panel 1. Stop Button 8. Water Temperature Button and Indicators Stops all wash and dry functions currently Press and release the “Water Temp” button operating. Press and hold this button for four to adjust the outgoing water temperature seconds to power off the bidet.
  • Page 18: Using The Se400

    OPERATING THE SWASH Using the SE400 NOTE: The wash functions will not work unless the sensor in the seat detects someone sitting down (with the built-in skin conductivity sensor). To override the Seat Sensor, please see the instructions on Page 18.
  • Page 19 OPERATING THE SWASH Using the SE400 Warm Air Dryer Function Eco Mode In this mode the water in the tank and the seat Press the “Dry” button to activate the warm air temperature will be heated to 86°F when the dryer.
  • Page 20: Special Mode Operations

    OPERATING THE SWASH Special Mode Operations NOTE: Do not sit on the seat when in Special Mode Operations. The process will not work while the seat is occupied. Seat Sensor Override The Seat Sensor is activated at the factory by default. Completing the following steps will bypass the body sensor located in the seat and allows the wash functions and dry functions to operate without the sensor being engaged.
  • Page 21 TECHNICAL INFORMATION Product Specifications BRONDELL SWASH ADVANCED BIDET SEAT Model SE400-EW, SE400-RW Power Voltage 120 V, 60 Hz Power Consumption 660 W Supply Water Pressure 14.2 psi – 106.6 psi Elongated: 18.5 in x 20.87 in x 6.10 in Dimensions Round: 18.5 in x 19.5 in x 6.10 in...
  • Page 22 Wash off any substances that come in contact with the seat as soon as possible. If necessary, replacement seat parts can be purchased through Brondell customer support. Nozzle Cleaning 1.
  • Page 23 MAINTENANCE Cleaning the Mesh Filter & Product Storage Cleaning the Mesh Filter Cleaning intervals will differ depending on use and water quality. It is recommended to check the filter at least once a year. 1. Turn off the water supply and hold the toilet’s flush lever down until all of the water has drained from the tank.
  • Page 24 If the bidet appears to be operating abnormally, please review the troubleshooting tips before calling the Brondell Service Center as most issues are easily resolved with a few simple steps. If you are unable to resolve the issue after checking the following items, please call the Service Center at 888-542-3355, Mon–Fri, 9am–5pm PST, or email us at support@brondell.com.
  • Page 25 TECHNICAL INFORMATION Troubleshooting Problem Possible Cause(s) Solution(s) Nozzles do not 1. Nozzles are dirty 1. Clean nozzles (see Page 20). function properly 2. Clogged filter 2. Remove, clean, and reinstall mesh filter (see Page 21). 3. Water pressure is too low 3.
  • Page 26 TECHNICAL INFORMATION Troubleshooting Problem Possible Cause(s) Solution(s) Water leaks from 1. Water leaking from the T-valve 1. Make sure that the rubber gasket is areas other than inserted correctly into the T-valve (flat the nozzles side down with lip pointing up towards the toilet tank connection) and firmly tighten the connector.
  • Page 27 BRONDELL reserves the right to make such inspections as may be necessary in order to determine the cause of the defect. BRONDELL will not charge for labor or parts in connection with warranty repairs for the first year from date of purchase on all products except those that may be subject to commercial use limitations.
  • Page 28 MANUFACTURED BY: Brondell, Inc. Made in Korea Please retain receipt records for any warranty claims.
