brondell S1400-EW Fit Manual

Toilet Fit Guide

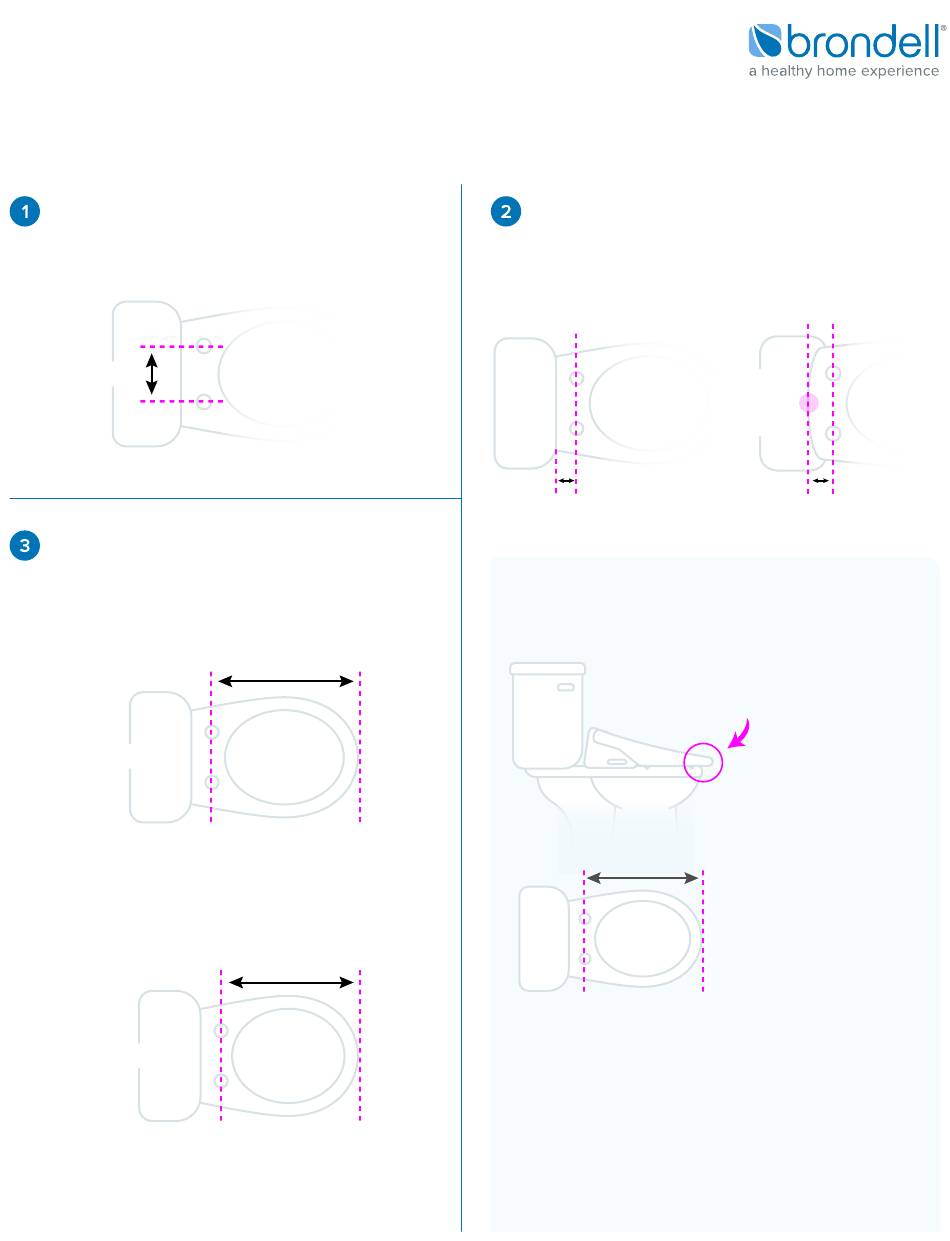

You'll need to measure your toilet to determine:
- Whether a Brondell Swash will fit (the Swash fits most residential toilets)
- Whether you need an Elongated or Round Swash
Measure the distance between the bolt
holes. The space must be between
5¼ inches and 8 inches.
5¼" – 8"
Measure the distance from the bolt holes
to the front of the toilet bowl
if you have a round or elongated fixture.
ELONGATED
If your measurement is 18" – 19½"
Order an
ROUND
If your measurement is 16" – 17¾"
Order a
to determine
18" – 19½"
Elongated Swash
16" – 17¾"
Round Swash
Measure the distance from the center of
the bolt holes to the toilet tank
proper clearance. There must be at least
1½ inches of clearance.
≥ 1½"
Is the distance from the center of the bolt holes
to the toilet tank less than 2"?
The Swash may extend slightly over
the front edge of your toilet bowl.
≤ 20½"
If this measurement is less than 20½", consider
purchasing a Round shape to reduce the amount the
seat extends over the front edge, even if your fixture
is elongated.
The overall length of the Round Swash is 19.55".
A distance less than 19.55" from the tank to the front
of the toilet bowl will also cause overhang.
to determine
French
Curved
Tank
≥ 1½"
from center
Measure the distance
from the front of the
toilet tank to the front
of the toilet bowl.
