User Manual
EC-PM-80340
THERMAL RECEIPT PRINTER

Advertisement

Table of Contents
loading

Related Manuals for EC Line EC-PM-80340

Summary of Contents for EC Line EC-PM-80340

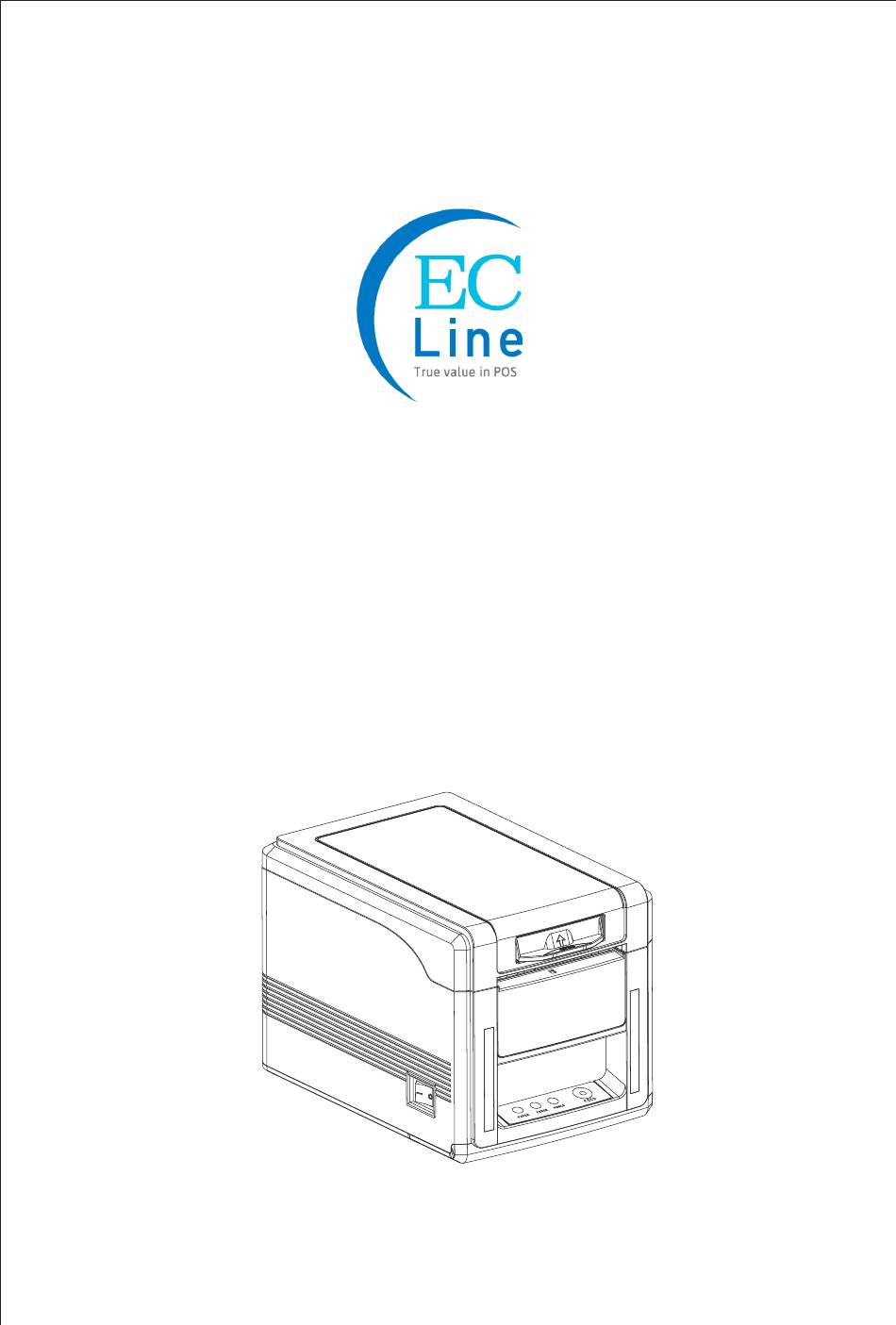

  • Page 1 User Manual EC-PM-80340 THERMAL RECEIPT PRINTER...

  • Page 2: Safety Notice

    1.Safety Notice: * Install the printer on stable place, choose a firm, level surface where avoid vibration. * Do not use and store the printer under high temperature, humid or seriously polluted environment. * Connect AC power adapter to a proper power outlet. Avoid to use the same outlet with other large electric machines which generate voltage fluctuation.
  • Page 3 4. Features 300mm/sec high printing speed Support 2D barcode printing Support kitchen printing and network printing Support front paper dispensing and auto cutter, stopping paper from jamming Support bar code printing Ports:Serial+USB+Ethernet ; USB+Wifi ; USB+Bluetooth 83mm Large Paper Roll Capacity Rational construction, easy maintenance Built in data buffer which can receive new task when printing is in progress Characters can be enlarged, bonded, underlined, line space and character space...

  • Page 4: Specification

    5.Specification EC-80340 Model Printing speed 300mm/sec Paper roll Paper Width:43/58/70/80/82mm Paper Diameter:83mm max. Roller diameter: Inside: 12mm Outside: 18~26mm Dot density 512/576 dots/line Character size ANK Character, Font A: 12×24dots, Font B: 9×17dots, Chinese Character: 24×24dots Compatible with EPSON ESC/POS Print command and Star command sets Interface...

  • Page 5: Printer Connection

    6. Printer Connection a. Plug the power adapter cable into the printer’s power port. b. Plug the interface cable securely into the printer’s Serial/USB/Ethernet port. c. Plug the cash drawer’s RJ-11 phone jack into the printer RJ-11 socket. 1.Serial Port 2.Ethernet Port 3.Power Port...
  • Page 6 8. Print Mode Setting (DIP switches) Users can select the auto cutter, language, printing speed, beep, print density by using DIP switches to set the printer. 1. Remove the DIP switches cover on the bottom of the printer. 2. DIP switches setting.

  • Page 7: Three-View Drawing

    9. Three-view Drawing Top view Front view Side view 10. Cutter Maintenance If step 1 failed, follow the below instructions I. Open the printer cover as showing III.Press the “FEED”again, cutter will return to its home position. Attention: Do not use force to separate the printer cover in case of any damage to the print head and auto cutter.

  • Page 8: Feed Button

    11. Button and Indicators Paper Indicator Feed Button Error Indicator Power Indicator 12. Function of button and indicators （1） ERROR Indicator ON may indicate paper out, cutter error, print head overheated. OFF indicates normal status （2） PAPER Indicator PAPER & ERROR are both ON, indicating printer is out of paper; PAPER &...
  • Page 9 13. Professional Performance a. 300mm/sec high printing speed b. Support front paper exit and auto cutter c. Support bar code printing d. 83mm large roll paper e. Support various paper width printing...
  • Page 10 Manufacturer: EC LINE Thank you very much for using EC Line product For service, please contact service@ecline.com.hk www.eclinepos.com...
