Summary of Contents for EC Line EC-PM-58110
-

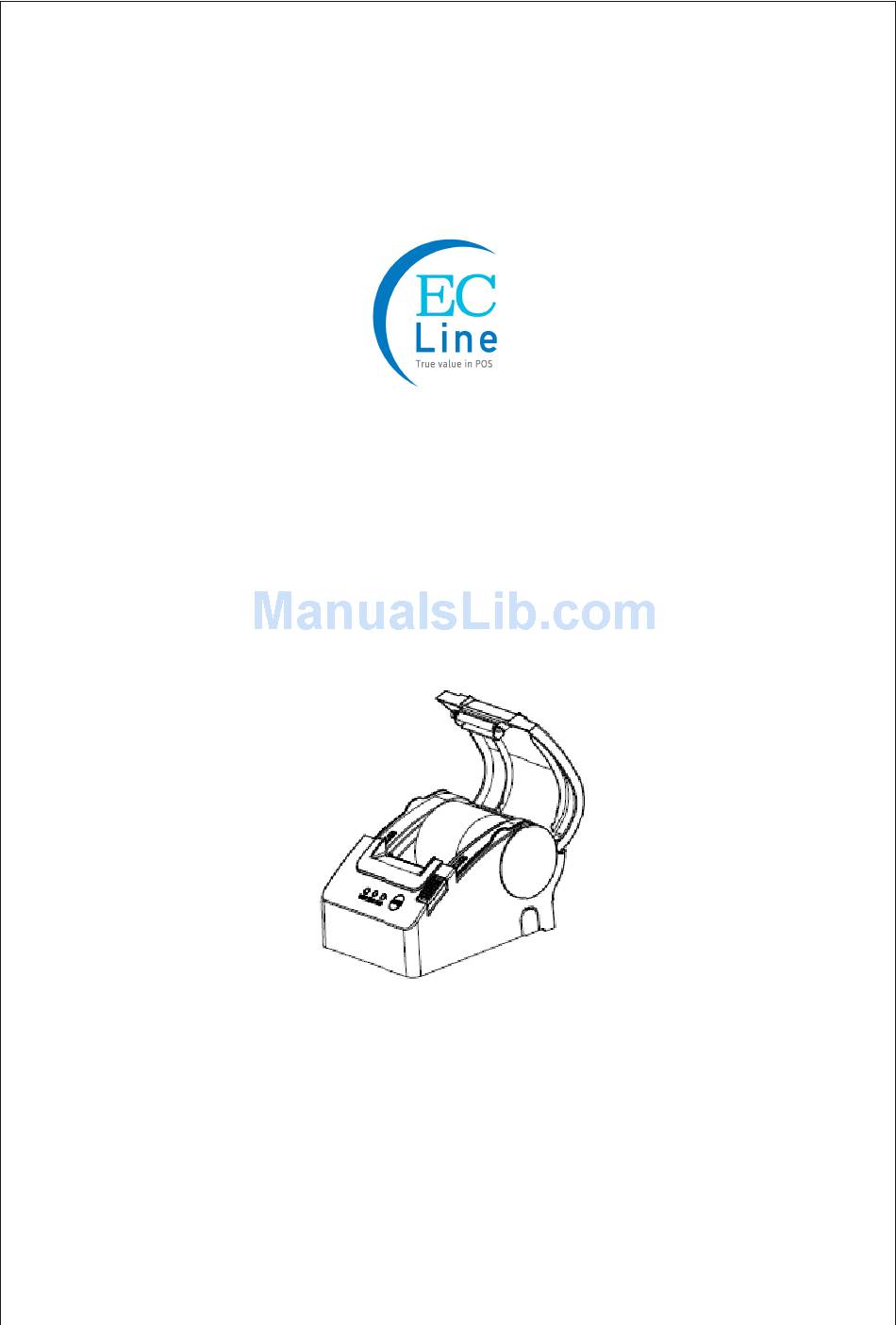

Page 1: User Manual
User Manual EC-PM-58110 THERMAL RECEIPT PRINTER... -
Page 2: Safety Notice
Safety Notice: * Don't touch the Head of printer with anything. * Don't touch the cutter blade. * Don't bend the power cord excessively or place any heavy objects onto it. * Don't use the printer when it is out of order. This can cause a fire or and electrocution. * Only use the power cord excessively or place any heavy objects onto it. -
Page 3: Main Features
Main Features: * Support Ethernet printing * Support 60K Bytes NV Logo download print, which is convenient for storing and printing Logo or or trademarks * Support up to 25 international language character sets. * Optional GB18030 Chinese character set * Inpect printing status Support Parallel, Serial, USB, Ethernet, bluetooth, Wifi interfaces. -
Page 4: Paper Roll Installation
Connection a. Connect the adapter cable to power connector of the printer. b. Connect the interface cable to the connector on the rear panel of the printer. c. Connect the cash drawer's RJ-11 phone jack to the connector on the rear panel. Power adapter Power line Paper Roll Installation... - Page 5 Print character: ANK Character, custom/times of character print. adjust row space. Font A: 12 24 dots, 1.50 3.00mm(W H) Simplify/Traditional: 24 24 dots, 3.00 3.00mm( W H) International code: PC347 Standard Europe /Katakana/PC850 Multilingual / PC860 Portuguese /PC863 Canadian-French /PC865 Nordic / West Europe/Greek/Hebrew/East Europe/Iran/ WPC1252/PC866 Cyrillic#2 /PC852 Latin2 /PC858/IranII/ Latvian/Arabic/PT151 1251...
- Page 6 Insert the bundled CD disk into the CD-ROM drive, in the CD-Rom menu, click DRV58EN V6.0G file to begin driver installation Please choose the OS that matches with your computer system and press next. Please select EC-PM-58110 Series for Install module.
- Page 7 c. Select the correct interface and press 'Install' d . Install complete and reboot your computer...
- Page 8 Manufacturer: EC LINE Thank you very much for using EC Line product For service, please contact service@ecline.com.hk www.eclinepos.com...
