Summary of Contents for Imperial DABMAN i250

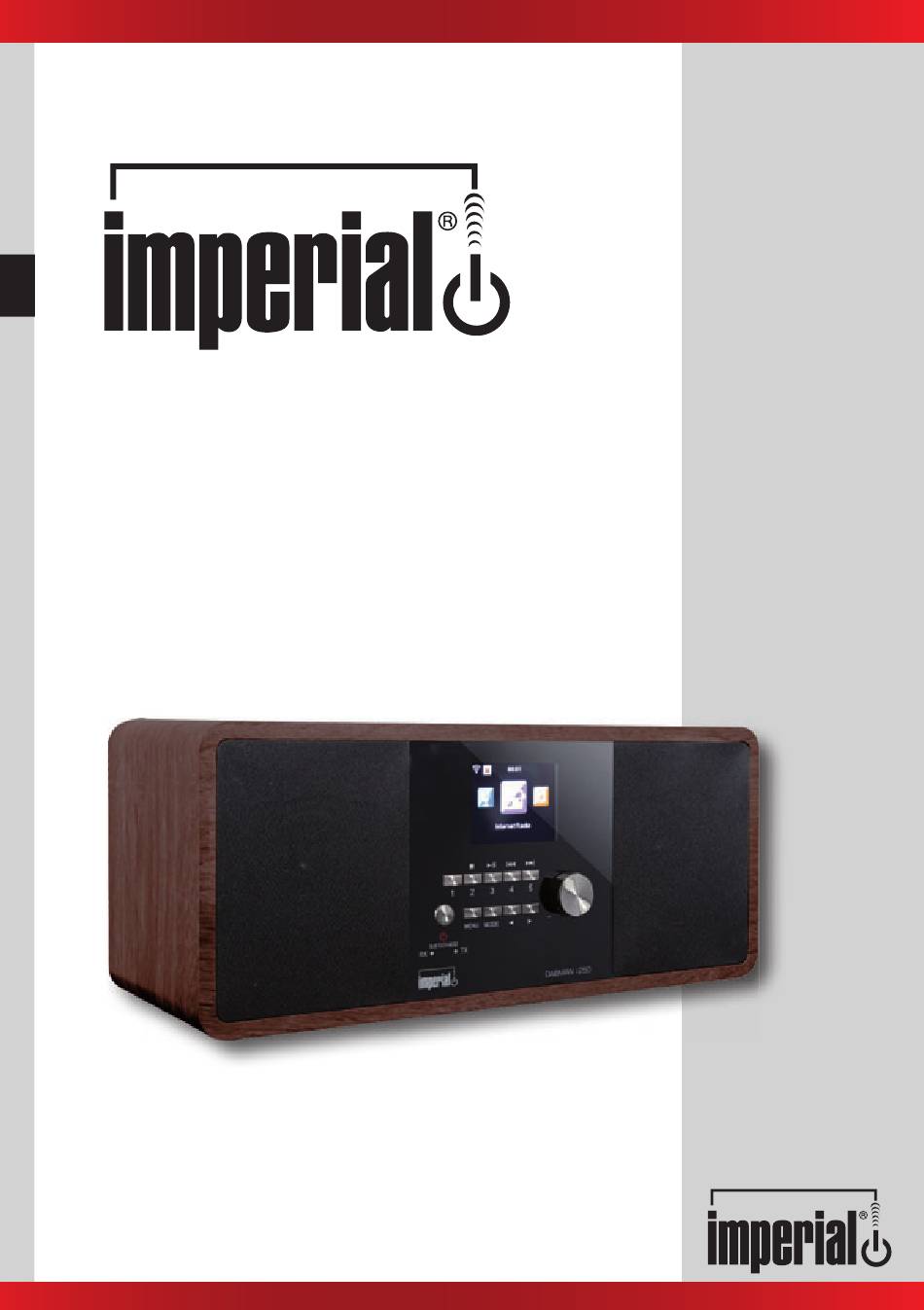

  • Page 1 Operating Manual IMPERIAL DABMAN i250 www.telestar.de...

  • Page 2: Table Of Contents

    1. INTRODuCTIE ........94 IMPERIAL DABMAN i250...

  • Page 3: Introduction

    This operating manual will assist you with the • correct • safe • optimal use of the IMPERIAL DABMAN i250. We assume the user of the radio has general knowledge related to the operation of consumer electronics products. Any person •...

  • Page 4: Safety Notices

    • Should liquid or foreign objects fall into the radio, immediately dis connect the mains adapter from the mains outlet. Have the product checked by qualified personnel before resuming operation. Otherwise you are in danger of getting an electrical shock. IMPERIAL DABMAN i250...
  • Page 5 2. SAFETY NOTICES • Please ensure the electrical outlet (plug) is easily accessible. • Do not squeeze or sharply bend cable connections. • If the mains cable is damaged, you must have the radio repaired by an expert before using it again. Otherwise you are in danger of getting an electrical shock.
  • Page 6 In this case you should wait for an hour before operating the radio again. • Place the mains cable in such a position that nobody will step on it or trip over it. IMPERIAL DABMAN i250...
  • Page 7 2. SAFETY NOTICES Correct handling of batteries • Batteries may contain poisonous substances. Ensure batteries are not handled by children. Children could place the batteries in their mouth and swallow them. If a battery is swallowed, please consult a doctor immediately. •...

  • Page 8: Items Supplied

    D-56766 Ulmen GArAntieKArte Absender Bitte Blockschrift in GrOSSBUCHStABen · Bitte Kästchen beachten name Vorname PLZ und Ort Gerätetyp IMPERIAL DABMAN i250 DigitalBOX europe GmbH Servicecenter telefon mit Vorwahl Am Weiher 14 (industriegebiet) D-56766 Ulmen Unterschrift des Käufers Garantiekarte_NORMA.indd 1 16.08.12 11:45 www.telestar.de...

  • Page 9: Illustrations

    4. ILLuSTRATIONS 10 11 12 13 Operating Manual...
  • Page 10 Switch the operating mode of the device between Internetradio, DAB+, UKW, UPnP, AUX, Bluetooth and USB here. 10./11. Navigation / Station selection Navigate through the menu using these buttons or choose the next station from the station list. IMPERIAL DABMAN i250...
  • Page 11 4. ILLuSTRATIONS Volume control, Confirmation button Change the volume with the dial or confirm menu entries by pressing the button. Display Power switch Here you can switch the radio on or off. The radio will be disconnected from the power supply in position 0. Mains adapter connection To connect the radio with the mains adapter (supplied) USB connection...

  • Page 12: Remote Control

    5. REMOTE CONTROL IMPERIAL DABMAN i250...
  • Page 13 5. REMOTE CONTROL Standby button Use this button to turn the device on or off. Sleep Use this button to turn the sleep timer of the unit on or off. WPS button With this button you can establish a W-LAN connection in your home network.
  • Page 14 EQ equalizer function You can activate the equalizer function and configure custom sound settings using this button. Language You can change the menu language with this button. Favourites button Turns on one of the individually stored favourite channels. IMPERIAL DABMAN i250...

  • Page 15: Installation

    6.1. Power supply First, connect the mains adapter supplied with the corresponding socket on the rear panel of the DABMAN i250. Now connect the mains adapter to a 220V outlet. Then extend the telescopic anten- na on the rear panel of the radio to its full extent, this will ensure the best possible reception, if you wish to receive terrestrially broadcast stations via the antenna.
  • Page 16 Select the network with which the connection is to be established Enter the W-LAN key. Use the ▼▲ keys to select a symbol, continue by pressing the ► key. Confirm the entry by pressing ENTER. IMPERIAL DABMAN i250...

  • Page 17: Operation

    7. OPERATION Press the Menu key on the radio or on the remote control to go to the main menu of the radio. The radio will automatically close the menu after 10 seconds, and will revert to the radio mode previously selec- ted, a display in the bottom right-hand corner will show the seconds, counting backwards.
  • Page 18 The MAC address of the radio can be found under the item Information Center. Whenever you have updated the web page, on which you can manage and update your personal radio stations, please navigate your radio to My MediaU Management to synchronize the changes. IMPERIAL DABMAN i250...
  • Page 19 7. OPERATION 7.1.3. Network Here you can configure your network settings. Use the ▼▲ keys to select the desired menu item, and confirm by pressing ENTER. The network will be configures as described under Point 6.4. 7.1.4. Date & Time Here you can set the time and date.
  • Page 20 To stop the alarm, press the Enter key on the remote control, or key 7 on the radio. To do this, go to Settings and select the menu item Mode, and switch the operating mode to radio alarm here. (Chapter 7.1.1.) IMPERIAL DABMAN i250...
  • Page 21 7. OPERATION 7.1.6. Timer The timer allows you to set a time at the end of which the radio will sound an alarm. To do this, use the ▸ ◂ keys to enter the time in minutes and se- conds. Pressing the key repeatedly will increase or decrease the time in one-second steps, hold the ▸...
  • Page 22 Here you can switch between stereo and mono reproduction of FM radio reception. This setting can be useful if you are tuned to an FM station with a weak and distorted signal. In this case, change the setting to Mono to improve the quality. IMPERIAL DABMAN i250...
  • Page 23 7. OPERATION 7.1.13. Setting for local stations To facilitate the search for stations in your area while in Internet ra- dio mode, you can search specifically for radio stations in your region using the menu. To do this, you must inform the radio of your location. Here you can enter your location manually, or activate an automatic location search.

  • Page 24: Local Station

    In this menu item, you can use the ▼▲ keys to select the desired program list. Confirm your selection by pressing Enter. If you wish to call up radio stations broadcast via DAB+, select DAB. All other radio selection options refer to the reception of Internet radio IMPERIAL DABMAN i250...

  • Page 25: Internet Radio

    7. OPERATION 7.3. Internet Radio Press the Menu key on the radio or on the remote control, and use the ►◄ keys to select Internet Radio. In the Internet radio menu you can select and manage all Internet radio stations. As many as 10,000 radio stations may be available, provided your radio is connected to a network that is in turn connec- ted to the Internet.
  • Page 26 Select a station by using the ▼▲ keys, and confirm by pressing Enter. Alternatively you can also add new radio stations if you know their Internet address. To do this, enter the Internet address of the radio provider. IMPERIAL DABMAN i250...

  • Page 27: Media Center

    7. OPERATION 7.4. Media Center vPress the Menu key on the remote control or on the radio, and use the ►◄ keys to select Media Center. If the i250 is connected to a wireless network, the radio can also be used as a media player in order to reproduce music data from PCs or smartphones connected to the same home network via UPnP or DLNA, and given that the appropriate media contents have been released for distribution in...
  • Page 28 Automatic FM scan When you have switched to FM, press the Enter key. The radio will start the automatic station scan and will save all stations found. The radio can store up to 20 FM radio stations. IMPERIAL DABMAN i250...

  • Page 29: Dab

    7. OPERATION v7.5.2. FM radio operation To call up the radio stations saved, press the ▸ ▸ or ◂ ◂ key. Alternatively, you can also call up the first 5 stations saved via the station keys 1-5 on the radio. If you wish to change the allocation of the station saving keys, press the station selection key 6 ( see page 10) to perform a scan to the next station that can be received.
  • Page 30 You can open the favourites list using either the FAV button or by pressing the desired number key on the remote control. The first 5 stations of the favourites list can also be selected using the station memory buttons on the device. IMPERIAL DABMAN i250...

  • Page 31: Aux

    Use a suitable cable (3.5 mm cinch, obtainable separately, may vary from one device to the next) to connect an external device with the DABMAN i250 (AUX In page 10) and switch on this device. While in operation, press the Mode key on the remote control, if necessary repeatedly until the display shows „AUX“...

  • Page 32: Bluetooth

    Bluetooth device. (TX LED on the front active) The DABMAN i250 may be connected to an external device (e.g. smart phone/tablet) via Bluetooth. Media (locally stored MP3 files, streaming music, web radio) on the external device can then be played though the radio via the Blue- tooth connection.

  • Page 33: Play Media Via Bluetooth

    8. AIR MuSIC CONTROL be connected). Search for “DABMAN i250” in the list of available devices, select it and make the connection. Double arrows will ap- pear in the upper left corner of the radio’s display. And a beep will sound the announcement “Connected”...
  • Page 34 When starting the app, this will automatically recognize the i 200, provided this is logged into the same network. The main menu of the app is structured along the same lines as the menu of the radio. IMPERIAL DABMAN i250...
  • Page 35 8. AIR MuSIC CONTROL Main menu Start the desired function by tapping on the appropriate symbol Internetradio In this mode, too, all the familiar functions in Internet radio operation can be selected. In the lower section you can select the station saving spaces 1-5. Operating Manual...
  • Page 36 8. AIR MuSIC CONTROL Media Center In this area you can connect with media servers in your network. In addition, you have the facility to access music files stored on a USB storage device connected with the system. IMPERIAL DABMAN i250...
  • Page 37 8. AIR MuSIC CONTROL FM Radio In this mode you can operate the FM radio. In this mode you can operate the DAB+ radio. Operating Manual...

  • Page 38: Troubleshooting

    Change the location of the radio (e.g. closer to window), Repeat station scan FM reception poor Antenna not fully extended, extend the FM antenna to its full length. Change the location of the radio (e.g. closer to window), Repeat station scan IMPERIAL DABMAN i250...
  • Page 39 9. TROuBLESHOOTINg Symptom Possible cause and solution AUX function not DABMAN i250 is set to incorrect mode. working Switch to “AUX” mode. Cable may be faulty. Check cable connection between DABMAN i250 and external device Poor audio quality File with low bit rate. Check the audio file.
  • Page 40 No Internet radio sta- Check the access points of the network. tions available The radio station may be currently una- vailable. The station link may have been changed, or it is no longer broadcasting. IMPERIAL DABMAN i250...

  • Page 41: Disposal Instructions

    10. DISPOSAL INSTRuCTIONS The packaging of your product consists exclusively of recyclable materials. Please return these materials, appropriately sorted, to the „Dual System“ or appropriate recycling system in your country. At the end of its lifetime, this product may not be disposed of in your normal household waste, it must be handed in at a collection point for the recycling of electrical and electronic equipment.

  • Page 42: Features And Technical Data

    UPnP/ DLNA komatibel Wi-Fi IEEE 802.11b/g WPA/WPA2/WEP (64/128 bit key) DAB/DAB+/FM Sensitivity to -100dBm DAB+ Sensitivity to -101dBm Sensitivity to -100dBm Decoding Reception range DAB Band III 174 MHz- 240 MHz FM 74 MHz - 108.1 Mhz IMPERIAL DABMAN i250...
  • Page 43 11. FEATuRES AND TECHNICAL DATA Display TFT Color Display 2.8 inch LCD 240 x 320 pixels SOuND Index STMicroelectronics ( 10W+10W Output Music Power) BRIDGE AMPLIFIER 3” loudspeaker max. 4Ω10W Supports multi sound effect EQ to set IC. NORMAL,FLAT,POP,JAZZ,ROCK CLASSIC) Connection Line Out 3,5 mm Stereo...
  • Page 44 Subject to change without no- tice. The warranty period for the DABMAN i250 corresponds with the le- gal requirements at the time of purchasing. In addition, we provide our telephonic Hotline service, offering profes- sional assistance.

  • Page 45: Service And Support

    Your radio bears the CE mark, and complies with all required EU standards. CE mark for European markets The CE mark on the product IMPERIAL DABMAN i250 gives you the assurance that the product complies with the regulations of directive for (2014/30/CE)
