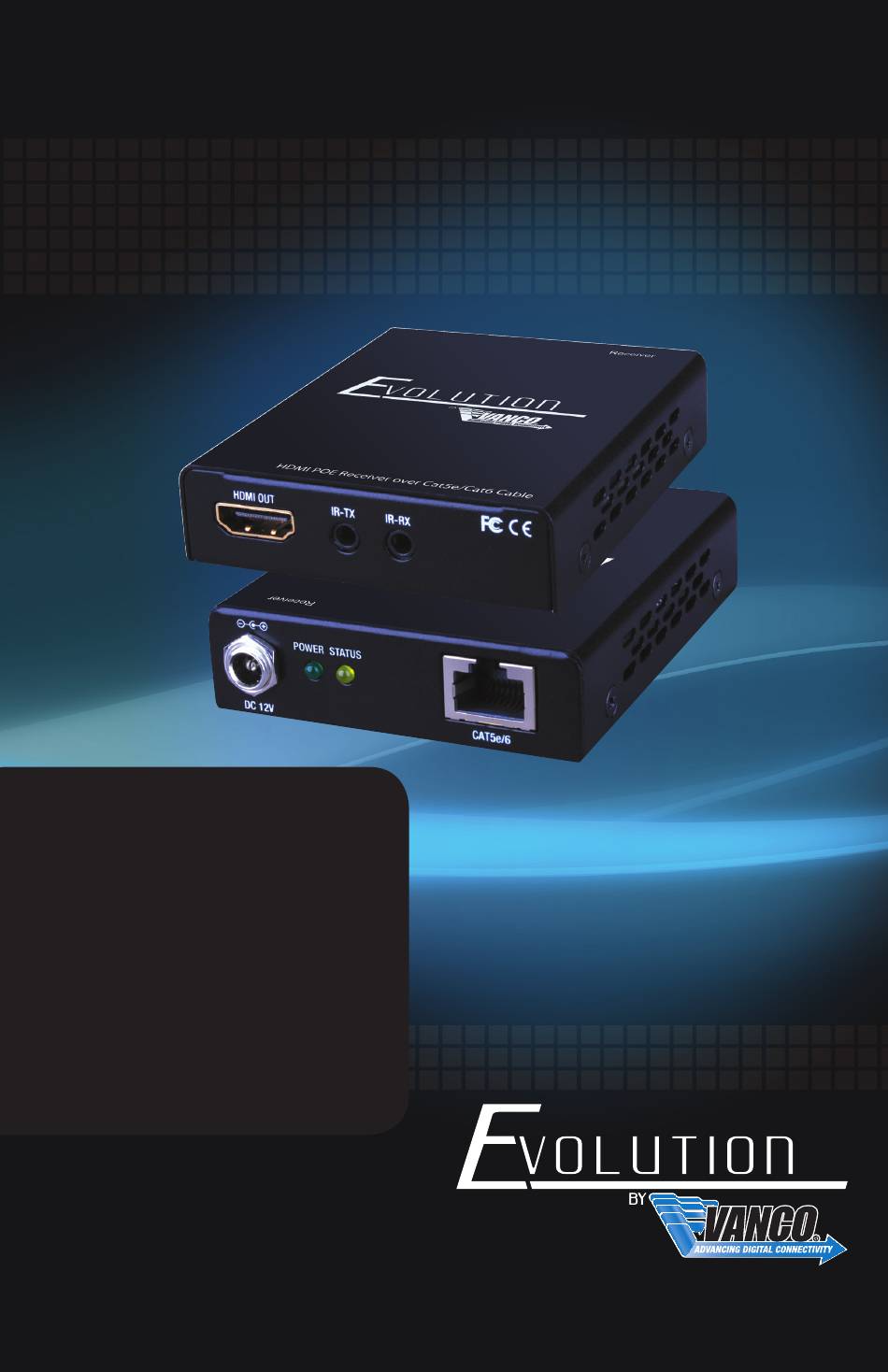

- Page 1 HDMI® POE R E C E I V E R Over Single Cat5e/Cat6 Cable Vanco Part Number EVRX2006 HDMI® POE Receiver over Single Cat5e/Cat6 Cable www.vanco1.com • 800.626.6445...
- Page 2 DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. This product is 100% inspected and tested in the United States to verify HDMI performance parameters.
- Page 3 FEATURES INTRODUCTION The Evolution by Vanco EVRX2006 HDMI Receiver over Single Cat5e/6 with Bi-directional IR, auto EDID/EQ, and PoE receives high definition video and audio signals, IR, and power at a distance of up to 164ft/50m over a single Cat5e/6 cable.
-
Page 4: Specifications
SPECIFICATIONS HDMI Compliance…… .............HDMI Deep Color, Full 3D HDCP Compliance…… .............Yes Video Bandwidth……… ...........Single-link 165MHz [4.95Gbps] Video Support…………...........480i/480p/720p/1080i/1080p @60 HDMI over UTP…............Full HD [1080P]-50m [165ft]; HD [720p/1080i]-80m [262ft] Audio Support……… ............Surround Sound [up to 7.1 ch] or stereo digital audio Input TMDS Signal……... -
Page 5: Panel Descriptions
PANEL DESCRIPTIONS 1. DC 12V: Connect with power supply (Not necessary if used with compatible HDMI matrix or splitter with power. 2. Power indicator light 3. Status indicator light 4. UTP IN: Connect to the matrix or splitter via CAT5e/ CAT6a cable. 5. -
Page 6: Connection Diagram
CONNECTION DIAGRAM CONNECT AND OPERATE 1. Connect a source such as a Blu-Ray Player, game console, A/V Receiver, Cable or Satellite Receiver, etc. to the HDMI input on the compatible product. 2. Connect a display such as an HDTV or HD Projector to the HDMI output on the Receiving unit. 3. - Page 7 The bi-directional IR system allows you to control the source that is connected to the extender unit, from the display; or the display from the source, not simultaneously. There are two important things to note when setting up the IR system: 1.
- Page 8 NOTICE 1. Vanco HDMI and Cat5e/6 cables are strongly recommended for use with this product to ensure best results. 2. Incorrect placement of IR Transmitter and Receiver may result in the failure of the IR extenders. Please check carefully before plugging in the IR extender to the respective IR sockets. The transmission length is largely affected by the type of Cat5e/6 cables utilized, the type of HDMI sources, and the type of HDMI display.
-
Page 9: Troubleshooting
4. If you are still encountering issues, attempt the “hot-plug” concept. With all of the HDMI cables disconnected, turn on the source and plug in the HDMI cable into it’s output, then power up the Vanco unit and plug the HDMI cable into it’s input, finally turn on the display and plug the HDMI cable from the receiver into it. -
Page 10: Limited Warranty
If repairs are needed during the warranty period the purchaser will be required to provide a sales receipt/sales invoice or other acceptable proof of purchase to the seller of this equipment. The seller will then contact Vanco regarding warranty repair or replacement. -
Page 11: Liability Statement
LIABILITY STATEMENT Every effort has been made to ensure that this product is free of defects. The manufacturer of this product cannot be held liable for the use of this hardware or any direct or indirect consequential damages arising from its use. It is the responsibility of the user and installer of the hardware to check that it is suitable for their requirements and that it is installed correctly. - Page 12 ® Vanco International 506 Kingsland Drive Batavia, Illinois 60510 call: 800.626.6445 fax: 630.879.9189 visit: www.vanco1.com...
