- Page 1 4K HDR HDBaseT™ R E C E I V E R with PoC, Downsacling, ARC, IR and RS-232 4K HDR HDBaseT™ Receiver with POC, Downscaling, ARC, IR and RS-232 Part Number: EVRXDSC www.vanco1.com • 800.626.6445...
- Page 2 DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. This product is 100% inspected and tested in the United States to verify HDMI performance parameters.
- Page 3 FEATURES INTRODUCTION Th Evolution by Vanco EVRXDSC 4K HDR HDBaseT™ Receiver with POC, Downscaling, ARC, IR and RS-232, allows extension of 4K@60Hz, 4:4:4 Chroma Subsampling, and HDR up to 131ft/40m and 1080p up to 230ft/70m over a single Cat6 cable. PoC (Power over Cable) allows the EVRXDSC to be powered over Cat6 from the matrix unit. For control, features IR pass-through to be able to control either sources and/or displays, as well as RS-232 pass-through for 3rd party integration.
-
Page 4: Specifications
SPECIFICATIONS Video Input…… ...............(1) HDBT Input Connector…… ............(1) RJ45 Input Resolution……… ............Up to 4K@60Hz, 4:4:4 chroma and HDR10 Output…………..............(1) HDMI Output Connector…............(1) Type-A female HDMI Output Resolution……… ..........Up to 4K@60Hz, 4:4:4 chroma and HDR10 Audio Input…… ...............(1) ARC Audio In Input Connection………... - Page 5 SPECIFICATIONS Operation Temperature…………… ........23-131 degrees F Storage temperature……………........-13 – 158 degrees F Relative humidity……………..........10-90% RH (no condensation) Power Supply……………..........Input:100V~240V AC; Output:24V DC 1.25A Power Consumption…………… ........12W (max) Dimensions…………… ...........5.5” W x 0.8” H x 3.3” D Weight…………… ............0.6 lb PACKAGE CONTENTS •...
-
Page 6: Panel Descriptions

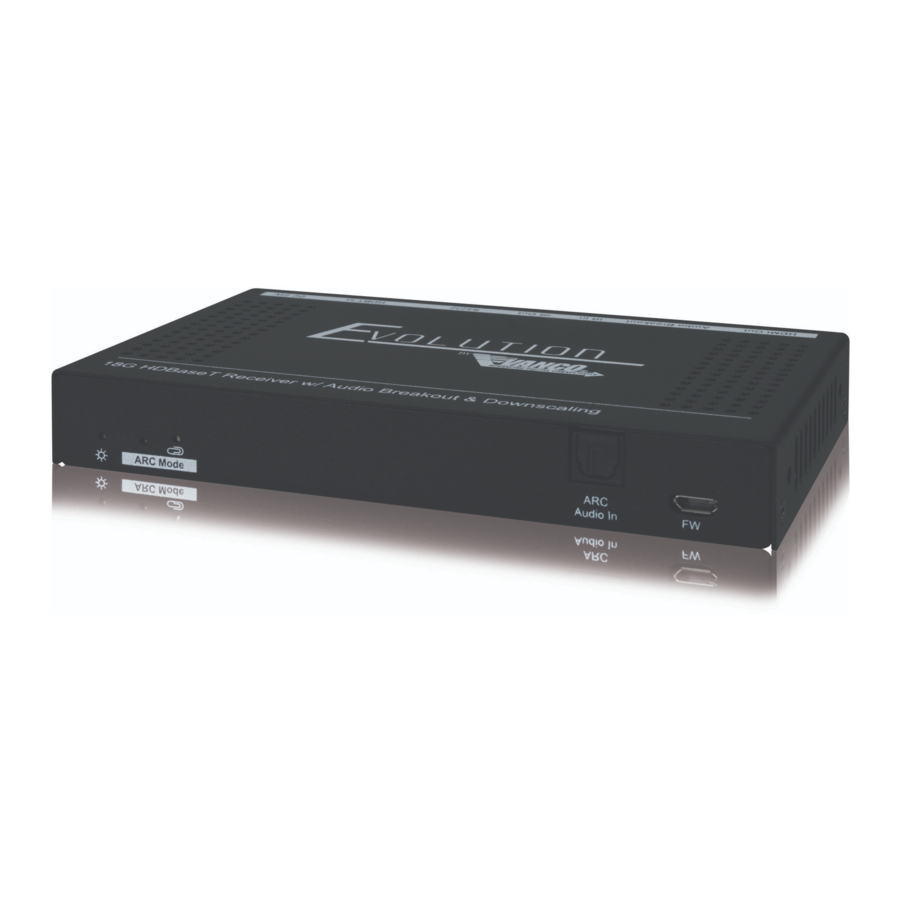

PANEL DESCRIPTIONS 1. POWER LED: Illuminates red when powered on either by PoC or connected power supply 2. ARC Mode: To enable or disable ARC, press the ARC button with a paperclip (paperclip marking on front panel), the ARC LED will illuminate blue when activated 3. - Page 7 ARC (Audio Return Channel) Mode To enable/disable ARC, press the button with the “paperclip” marking. The ARC led will illuminate blue when ARC is enabled; no illumination means ARC is disabled. ARC mode on the EVRXDSC receiver is only compatible with the Evolution PRO EVMX44PRO and EVMX88PRO matrix units. The EVRXDSC receiver can send audio back downstream with ARC capability at the matrix unit and broken out via digital optical audio outputs, with two options: Connection with an ARC capable display using the display’s HDMI ARC port;...
- Page 8 Figure 1 Figure 2 www.vanco1.com...
- Page 9 Figure 3 800.626.6445...
-
Page 10: Connection Diagram
CONNECTION DIAGRAM CONNECT AND OPERATE 1. Connect a single Cat6 cable (home-run cable strongly recommended) from a compatible Evolution matrix unit to the EVRXDSC (HDBT in) 2. Connect an HDMI display to the HDMI output (NOTE: HDMI certified cables are strongly recommended for 4K HDR resolution) 3. -
Page 11: Limited Warranty
If repairs are needed during the warranty period the purchaser will be required to provide a sales receipt/sales invoice or other acceptable proof of purchase to the seller of this equipment. The seller will then contact Vanco regarding warranty repair or replacement. - Page 12 ® Vanco International 506 Kingsland Drive Batavia, Illinois 60510 call: 800.626.6445 fax: 630.879.9189 visit: www.vanco1.com...
