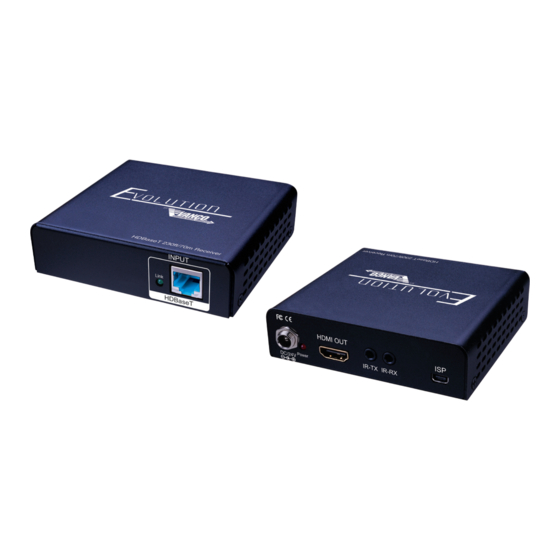

- Page 1 HDBASET™ R E C E I V E R (230 ft./ 70m) Vanco Part Number EVRX3000 HDBaseT™ Receiver (230ft/70m) www.vanco1.com • 800.626.6445...
- Page 2 DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. This product is 100% inspected and tested in the United States to verify HDMI performance parameters.
- Page 3 FEATURES INTRODUCTION The Evolution by Vanco EVRX3000 HDMI Receiver over Single Cat5e/6 with HDBaseT Technology, Bi-directional IR, and PoE receives high definition video and audio signals, IR, and power at a distance of up to 230ft/70m over a single Cat5e/6 cable. 4K2K (2160p) resolution compatible, and can be received up to 131ft/40m.
- Page 4 HDBaseT Receiver 230ft/70m Part # EVRX3000 • Features HDBaseT Technology, optimized for whole-home or commercial distribution of uncompressed high-definition signals at twice the distance of HDMI cables without degradation • HDBaseT Receiver can connect uncompressed full HD digital video, audio, 100BaseT Ethernet, and various control signals through a single 230ft/70m Cat5e/Cat6 cable •...
-
Page 5: Specifications
SPECIFICATIONS TECHNICAL SPECS HDMI Compliance ............HDMI Deep Color, Full 3D 4K2K @ 30 HDCP Compliance ............Yes Video Bandwidth ............Single link 340 MHz (10.2 Gbps) Video Support ............480i/480p/720p/1080i/1080p @60/2160p@30 HDMI over UTP ............1080p@60 70m (230 ft) Cat5e Audio Support ............ -
Page 6: Package Contents
PACKAGE CONTENTS • EVRX3000 • IR Receiver (RX) • Rack-mounting ear set • Product Manual PANEL DESCRIPTIONS 1. 24V DC: Connect to 24V DC power supply (optional) 2. LED: Power indicator 3. HDMI OUT: Connects to an HDMI display with an HDMI male-male cable 4. -
Page 7: Connection Diagram
CONNECTION DIAGRAM CONNECT AND OPERATE 1. Connect an HDBaseT Evolution by Vanco matrix unit or splitter with PoE to a source such as a Blu-Ray Player, game console, A/V Receiver, Cable or Satellite Receiver, etc. 2. Connect a display such as an HDTV or HD Projector to the HDMI output on the Receiving unit. -
Page 8: Ir Pass-Through
IR Receiver RX IR BLASTER (TX) To control the source: Plug IR Blaster into IR TX port of HDBaseT Evolution by Vanco matrix unit or splitter with PoE; place blaster in front of the IR eye of the source. To control the display: Plug IR Blaster into IR TX port of receiver unit (EVRX3000-RX); place blaster in front of the IR eye of the display. - Page 9 NOTICE 1. Vanco HDMI and Cat5e/6 cables are strongly recommended for use with this product to ensure best results. 2. Incorrect placement of IR Blaster and Receiver may result in the failure of the IR extenders. Please check carefully before plugging in the IR extender to the respective IR sockets.
-
Page 10: Troubleshooting
HDMI cable into it’s output, then power up the Vanco unit and plug the HDMI cable into it’s input, finally turn on the display and plug the HDMI cable from the receiver into it. This activates all of the devices in corresponding order and results in a signal being plugged into a device that is on and will attempt to connect the signal. -
Page 11: Limited Warranty
Vanco’s opinion, prove defective within this warranty period, Vanco, at its option, will repair or replace this product without charge. Any defective parts replaced become the property of Vanco. This warranty does not apply to those products which have been damaged due to accident, unauthorized alterations, improper repair, modifications, inadequate maintenance and care, or use in any manner for which the product was not originally intended. - Page 12 ® Vanco International 506 Kingsland Drive Batavia, Illinois 60510 call: 800.626.6445 fax: 630.879.9189 visit: www.vanco1.com...
