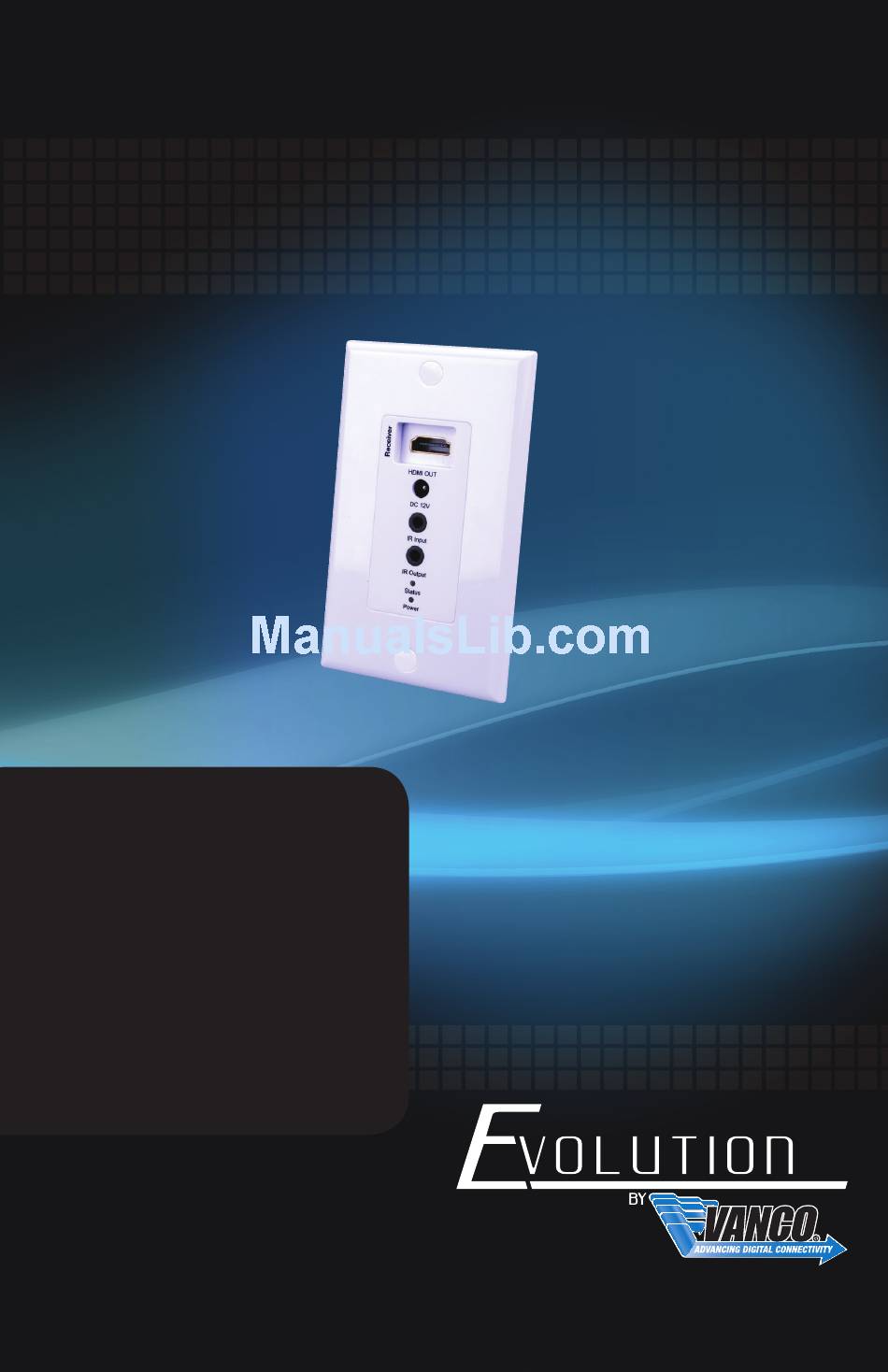

- Page 1 HDMI® POE W A L L P L A T E R E C E I V E R over single Cat5e/Cat6 Cable Vanco Part Number: EVWP2006RX HDMI® POE Wall Plate Receiver over Single Cat5e/Cat6 Cable www.vanco1.com • 800.626.6445...
- Page 2 DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. This product is 100% inspected and tested in the United States to verify HDMI performance parameters.
- Page 3 INTRODUCTION The Evolution by Vanco EVWP2006RX HDMI Wall Plate Receiver over Single Cat5e/6 with Bi-directional IR, auto EDID/ EQ, and POE receieves high definition video and audio signals, IR, and power at a distance of up to 164ft/50m over a single Cat5e/6 cable.
-
Page 4: Specifications
ESD level ..............HBM ±8 kV(Contact Discharge) Temperature range ............ 0 ~ 40°C (operation), -20~60°C(stock) Compliance ............... FCC; CE; RoHS PACKAGE CONTENTS • HDMI® POE Wall Plate Receiver EVWP2006RX • (1) IR Blasters (TX) • (1) IR Receivers (RX) •... -
Page 5: Panel Descriptions
8. CAT5e/6 cable RJ45 port EDID The EVWP2006RX is equipped with EDID management, however there is no need to adjust any dip switches or dials, the unit automatically reads the EDID from the display and save it internally. This feature was created for the installer in mind, for a plug and play installation 800.626.6445... -
Page 6: Connection Diagram
CONNECTION DIAGRAM BEFORE INSTALLATION: Prepare place for installing system. The video sources should be close to the transmitter, and the displays should be close to receiver. It is better to keep the HDMI cables less than 6 meters. Terminate the CAT5e/6 cables for connecting the transmitter and the receiver to the 568B standard. - Page 7 IR PASS-THROUGH The bi-directional IR system allows you to control the source that is connected to the extender unit, from the display; or the display from the source, not simultaneously. There are two important things to note when setting up the IR system: 1.
- Page 8 IR RECEIVER (RX) • To control the source: Plug IR Receiver into IR Input port of receiver unit; place receiver at or near display. • To control the display: Plug IR Receiver into IR Input port of transmitter unit; place receiver in position where it is able to receive remote signals.
- Page 9 NOTICE 1. Vanco HDMI and Cat5e/6 cables are strongly recommended for use with this product to ensure best results. 2. Incorrect placement of IR Blaster and Receiver may result in the failure of the IR extenders. Please check carefully before plugging in the IR extender to the respective IR sockets.
-
Page 10: Troubleshooting
4. If you are still encountering issues, attempt the “hot-plug concept. With all of the HDMI cables disconnected, turn on the source and plug in the HDMI cable into it’s output, then power up the Vanco unit and plug the HDMI cable into it’s input, finally turn on the display and plug the HDMI cable from the receiver into it. -
Page 11: Limited Warranty
If repairs are needed during the warranty period the purchaser will be required to provide a sales receipt/sales invoice or other acceptable proof of purchase to the seller of this equipment. The seller will then contact Vanco regarding warranty repair or replacement. - Page 12 ® Vanco International 506 Kingsland Drive Batavia, Illinois 60510 call: 800.626.6445 fax: 630.879.9189 visit: www.vanco1.com...
