Monoprice MLB-108B Installation Instruction

Adjustable tilt/swivel flat panel wall mount

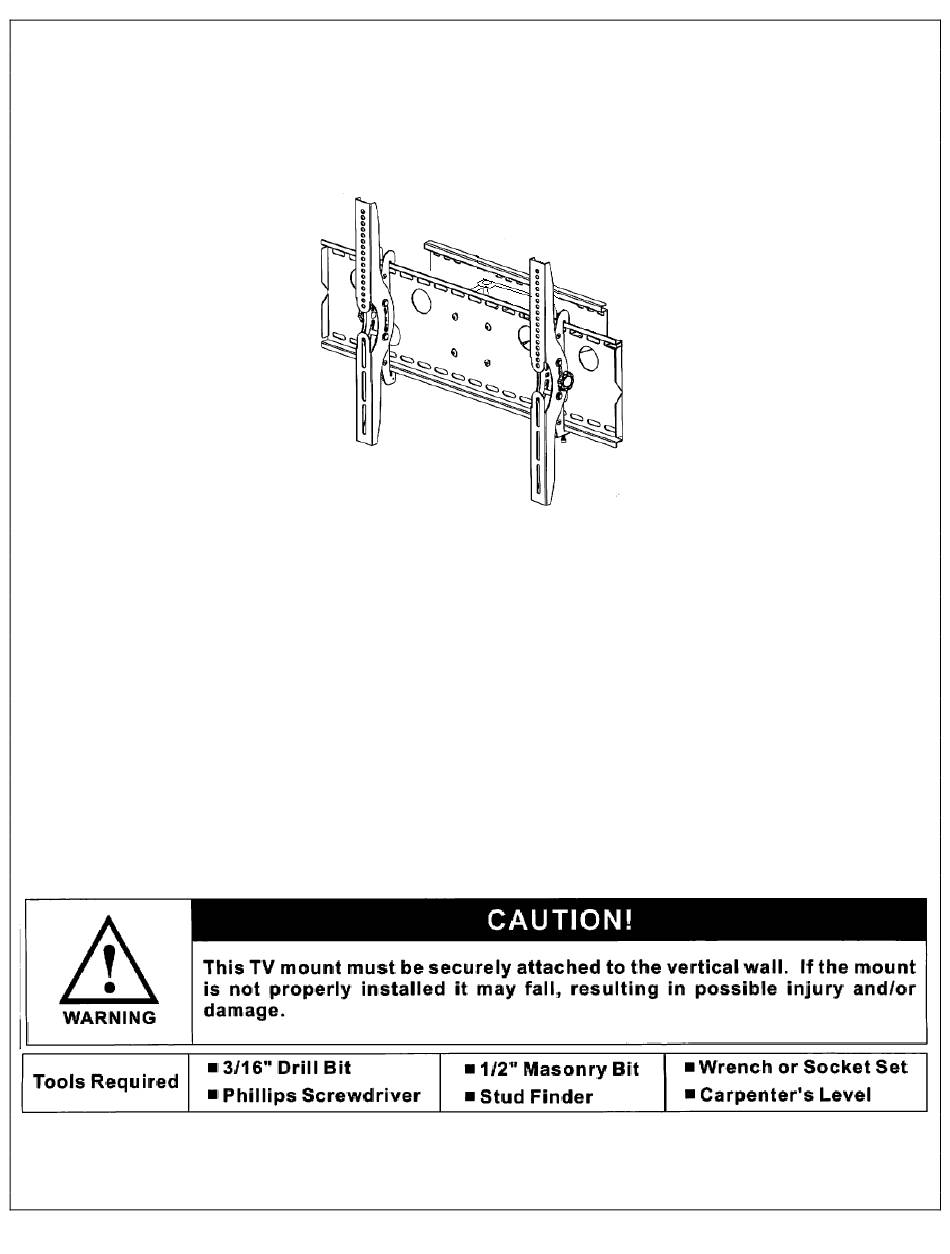

Monoprice Adjustable Tilt/Swivel Flat Panel Wall Mount

Model MLB-108B (PID# 3337)

VESA Compliant up to 750x450

Max Weight: 125lbs

•

Carefully open the carton, remove the contents and lay them out on cardboard or other protective surface to avoid

damage.

•

Check the contents against the supplied parts list on the next page to assure that all components were received

undamaged. Do not use any damaged or defective parts.

Install and use this device with care. Please read this entire manual before attempting installation and carefully follow all

instructions contained herein. Use proper safety equipment during installation.

Please call a qualified installation contractor for help if you:

•

Don't understand the instructions in this manual or have any doubts about the safety of the installation.

•

You are uncertain about the nature of your wall.

Do not use this product for any purpose or in any configuration not explicitly specified in these instructions. Monoprice

hereby disclaims any and all liability for injury or damage arising from incorrect assembly, incorrect mounting or any

incorrect use of this product.

Note: The mounting components and hardware supplied in this package are not designed for installation to wall with

steel studs or to cinder block walls. If the hardware you need for your installation is not included, please consult your local

hardware store for proper mounting hardware for this application.

Installation Instruction

UNPACKING INSTRUCTIONS

Table of Contents

Do you have a question about the MLB-108B and is the answer not in the manual?

Page 1 You are uncertain about the nature of your wall. Do not use this product for any purpose or in any configuration not explicitly specified in these instructions. Monoprice hereby disclaims any and all liability for injury or damage arising from incorrect assembly, incorrect mounting or any incorrect use of this product.
Page 2 (2) Adjustment Knob –y (2) Tilt Adjustment Bolt – z...
Page 3 Step 1A Mounting the Monitor Bracket to a TV with a Flat Back First of all, make sure one of the machine bolt diameters (part e, f, g or h) fits the mounting holes on your television. Once you have selected the correct size bolt, please use one of the four diagrams below respective to the bolt you will be using.
Page 4 First of all, make sure one of the machine bolt diameters (part i, j, k or l) fits the mounting holes on your television. Once you have selected the correct size bolt, please use one of the four diagrams below respective to the bolt you will be using. You will thread each bolt to the TV using the appropriate lock washer (part m, n, o or p), washer (part s or t) and spacer (part q or r).
Page 5 Warning: Some TVs may require two people to lift! Monoprice is not responsible for personal injury or product damage. First hook the Monitor Bracket (parts b & c) over the top of the wall plate (part a). Then, let the bottom of the monitor brackets rotated to the bottom of the wall plate as shown in Diagram 3A.
