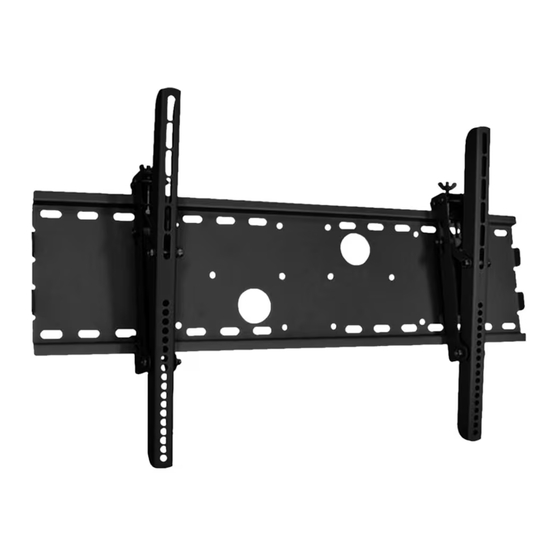

Adjustable Tilt/ Flat Panel Wall Mount
(PID# 4174)
VESA Compliant: Up to 600x400
Max Weight: 165lbs
Carefully open the carton, remove the contents and lay them out on cardboard or other protective surface to avoid
damage.
Check the contents against the supplied parts list on the next page to assure that all components were received
undamaged. Do not use any damaged or defective parts.
Install and use this device with care. Please read this entire manual before attempting installation and carefully follow all
instructions contained herein. Use proper safety equipment during installation.
Please call a qualified installation contractor for help if you:
Don't understand the instructions in this manual or have any doubts about the safety of the installation.
You are uncertain about the nature of your wall.
Do not use this product for any purpose or in any configuration not explicitly specified in these instructions. We hereby
disclaims any and all liability for injury or damage arising from incorrect assembly, incorrect mounting or any
incorrect use of this product.
WARNING

Tools Required

Note: The mounting components and hardware supplied in this package are not designed for installation to wall with
steel studs or to cinder block walls. If the hardware you need for your installation is not included, please consult your local
hardware store for proper mounting hardware for this application.
Installation Instruction

UNPACKING INSTRUCTIONS

IMPORTANT SAFETY INFORMATION

This TV mount must be securely attached to the vertical wall. If the mounta
is not properly installed it may fall, resulting in possible injury and/or
damage. Do not exceed maximum listed weight capacity. serious injury or
property damage may occur!
3/16" Drill Bit
Phillips Screwdriver
CAUTION!
1/2" Masonry Bit
Stud Finder
Wrench or Socket Set
Carpenter's Level
