- Page 1 Heavy Duty XL Full-Motion TV Wall Mount Bracket P/N 44486 User Manual...
-
Page 2: Table Of Contents
Thank you for purchasing this product To ensure optimum performance and safety, read the following instructions before connecting, operating, or adjusting the product. Keep this manual for future reference. Table of Contents Introduction..................................2 Features ....................................2 Package Contents ................................3 Dimensions ................................... -
Page 3: Introduction

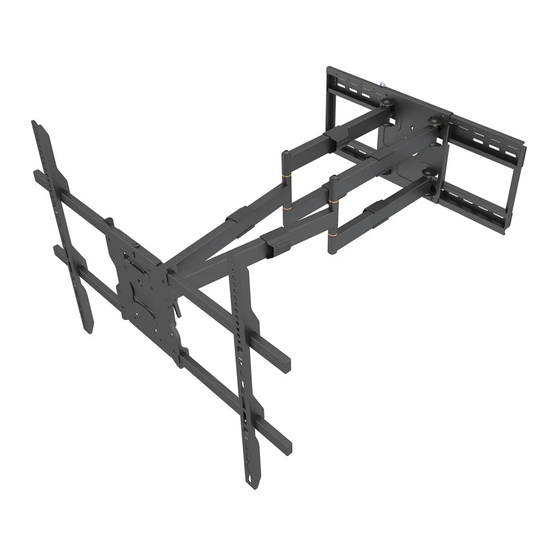

Introduction This Monoprice™ Commercial Series Full-Motion Articulating TV Wall Mount Bracket allows you to watch television the best way possible. The device is constructed from cold-rolled steel, designed to hold any large or heavy monitor from 60 to 110 inches. Its Heavy-Duty XL feature also gives it the power to hold up to 275 pounds. -
Page 4: Package Contents
Package Contents 1x Main Mount Body 1x TV brackets TV Mounting Hardware Wall Mounting Hardware 4x M4x16 6x M8x65 4x M5x16 6x Ø16xØ8.2x1.5 4x M6x16 6x Plastic Anchor Ø10x50 4x M8x25 4x Safety Bracket 4x Ø16xØ6.2x1.5 1x Wall Plate Template re te "... -
Page 5: Dimensions
Dimensions 110mm [4.3″ ] 825mm [32.5″ ]Max φ8.3mm [φ0.3″ ] 200mm [7.9″ ] 100mm [3.9″ ] ±5° 980mm [38.6″ ] 690mm [27.2″ ] 609.6mm [24.0″ ] 406.4mm [16.0″ ] 648mm [25.5″ ]... -
Page 6: Installation
Installation Caution: Do not install the device on drywall alone. Install the mount on wood studs. The user must verify that the wall can hold the weight of the TV and the TV mount. STEP 1a: Wood Stud Installation (Option 1) Suitable for 16"... - Page 7 13mm Secure the Wall Plate to the wall with 6x Lag Bolts (H) and 6x Washers (H). Note: Do not use Wall Anchor (I) for wood stud installation. Note: Tighten screws so that the wall plate is firmly attached, but do not overtighten.
- Page 8 Conc rete wall 16 ″ - 24 ″ " cm ) Woo d stud wall (41 cm -61 Mason ry Hamm er TEMP LATE Tool s Requ ired " mm ) 2.5 6” (65 Wood Bit 3/8 ” (10 mm ) Stud Finder TEMP LATE 65mm...
- Page 9 STEP 2: Sliding Mechanism To experience the sliding mechanism feature, the mount should be shipped with the locking bars installed in place at the center position. Take Off To use the sliding function, remove the locking plates by withdrawing the bolts that hold them in place.
- Page 10 STEP 3a: Attaching the TV to the Mount (For Displays With Smaller Bolt Hole Patterns) For TVs with smaller bolt-hole patterns of VESA® 100x100, 100x200, 200x100, and 200x200mm, the TV can be mounted directly on the plate without extension bars. 200(7.8”) Remove the screws 100(3.9”)
- Page 11 Slide in the Attach VESA® to Arms ® VESA plate onto the notch on the arms, and attach the two safety screws behind the plate to lock it to the arms. STEP 3b: Attaching the TV to the Mount (For Displays Larger Smaller Bolt Hole Patterns) For TVs with larger bolt-hole patterns of VESA®...
- Page 12 STEP 4: Hanging the TV on the Wall Mount Arms Lift the TV up (two persons recommended) and hang the TV brackets onto the wall mount extension bars. STEP 5: Securing the TV on the Mount Secure the TV brackets on the mount by attaching the 4x AA Safety Brackets with 4x F Screws as shown in the image.
- Page 13 STEP 6: Leveling adjustment -5°~+5° The mount allows up to 5 degrees of leveling adjustment post-installation. To adjust the level of the TV, place a bubble level on top of the TV, loosen the 2x G bolts located behind the VESA® plate, level the TV, and tighten the 2x G bolts to lock the TV in position.
- Page 14 Check the website for support times and links. To download the latest drivers, firmware, manuals, etc., go to www.monoprice.com and type 44486 into the search bar. If available, support files are linked at the bottom of the product page.
- Page 15 The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. Monoprice™ and all Monoprice logos are trademarks of Monoprice Inc.
- Page 16 Product pictures are for reference only. Brea, CA 92821 – USA Specifications described herein are subject to change without prior notification. www.monoprice.com Monoprice™ and all Monoprice logos are trademarks of Monoprice Inc. Copyright © 2022 Monoprice, Inc. All rights reserved.
