StarTech.com ST4300USBMS Instruction Manual

Instruction Manual
4 Port Industrial USB 3.0 Hub with 350W Surge Protection
ST4300USBMS
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com

Packaging Contents

• 1x USB 3.0 Hub
• 1x USB 3.0 A – B Cable (2m)
• 1x DIN Rail Mounting Kit
• 1x Terminal Block
• 1x Instruction Manual

System Requirements

• Windows® 8 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64), 2000,
Windows® Server 2008 R2, 2003(32/64), Mac OS 10.x, 9.x, Linux®
• USB enabled computer system with available USB port

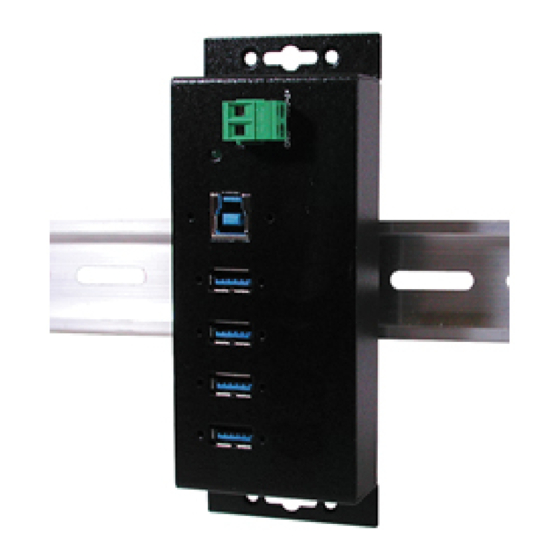

Product Overview

Power LED
USB 3.0 type B
port (Host)
USB 3.0 type
A ports
For the most up-to-date information, please visit: www.startech.com
2-wire Power Terminal
Block (included)

Installation

Note: Supplying external power is optional, however to ensure
that each USB port is fully powered, connecting external power is
recommended.
*Supports USB Battery Charging Specification Revision 1.1 (Note:
Does not support charging the Samsung Galaxy Tab)
1. If not using external power, skip to Step 4. Using a small flat head
screw driver, loosen the screws for the terminal block connectors.
2. Connect the power and ground wires from your DC power source
to the proper terminal block connectors and fasten the screws.
The terminals are marked on the USB Hub's housing.
Note: Please make sure the polarity of the input power should be
correctly matched with the terminal block pins to ensure proper
function.
3. Insert the terminal block housing into the USB Hub.
4. Connect the USB cable from the USB hub (type B port) to the host
computer system. With power being supplied (either from the
terminal block or USB host connection), the power LED should
light up solid.
5. The operating system should detect the USB Hub immediately
and automatically install it.
6. Once installation is complete, USB devices should be able to be
connected to the hub and recognized.
7. Mount your hub on the wall or DIN RAIL if required
DIN RAIL Clip
Wall mounting holes
Manual Revision: 01/22/2014
